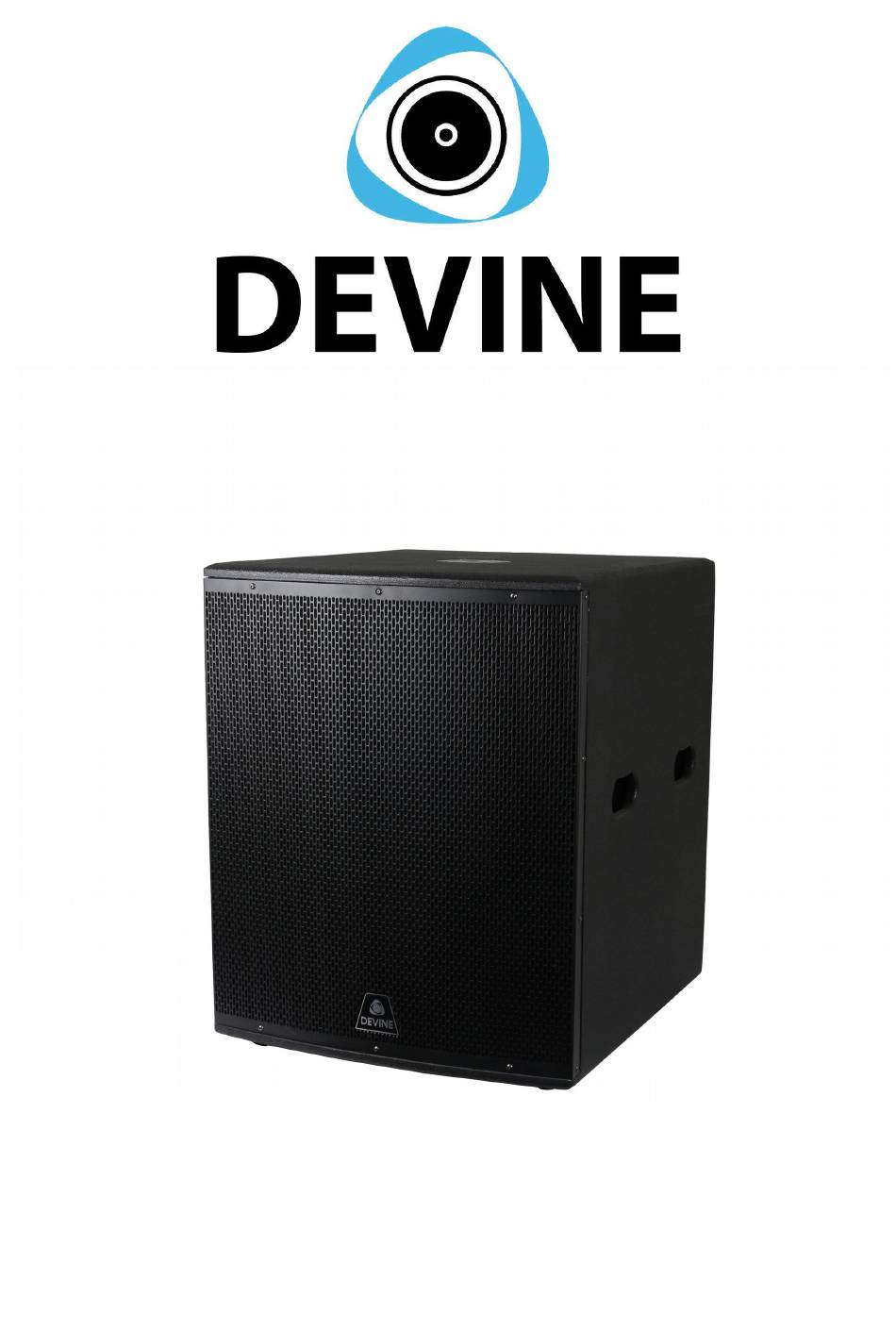

- Page 1 Onyx Active 12SA / 15SA / 18SA Active subwoofer User manual The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials: 23-09-2017 RV Revision date and author's initials: -...
- Page 2 Introduction Thank you for purchasing this Devine Onyx active subwoofer. We advise that you read this user manual in its entirety before unpacking the contents of the box, so that you are familiar with all of the functionality that this product has to offer.
-
Page 3: Safety Instructions
Safety instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks. Everyone involved with the installation, operation and maintenance of this device must: - Be qualified - Be skilled - Have read the instructions in this user manual - Be sure that neither the device nor the included accessories are damaged. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Devine cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 Guidelines and operation of this device These images apply to all models. 1. link outputs (copy of input signal) via balanced 3-pin XLR 2. inputs via balanced 3-pin XLR 3. subwoofer volume control 4. ground lift, interrupts the ground loop of the audio inputs to eliminate interference 5.
-
Page 6: Operating The Device
Use these units with care and keep the volume at a reasonable level when possible. The volume should ideally be set to a comfortable level when listening to music. Devine cannot be held liable for any injuries or damage resulting from the use of this product. General use... -
Page 7: Audio Technology
Speaker pole mount The Devine Onyx subwoofers are equipped with a pole mount with an M20 screw thread. This means that a suitable speaker pole can be screwed in securely to provide a stable platform for mounting a full-range speaker on top. Due to a subwoofer's heavier weight and larger dimensions, this setup is space-saving as well as stable. - Page 8 People using microphones should ideally stand directly next to or behind speakers in order to prevent any problems with feedback. Standing in front of a speaker will almost always result in the sound of the speaker itself also being picked up by the microphone. Using with external equipment It's possible to use the Onyx subwoofer with external equipment like crossovers, equalisers and speaker management systems.
- Page 9 Subwoofer troubleshooting guide If you have a problem with your subwoofer, please consult this troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your dealer for more information and/or help. This troubleshooting section contains information on how to solve the most common subwoofer problems, but it does not and cannot cover every eventuality.
- Page 10 Volume control is too loud Turn the volume down The tone controls for treble and/or Turn the tone control back to 12 bass are too high or too low. noon and listen to see clipping is still audible. Woofer or tweeter is defective If a speaker is exposed to a loud, distorted, or clipped signal for a longer period of time, this can...
-
Page 11: Specifications
Specifications General specifications for all models: – robust subwoofer in strong plywood housing – available in 12, 15 and 18 inches – metal grille – acoustic foam behind grille to prevent any unwanted matter from getting inside the speaker – grille covers the front of the subwoofer for optimal protection –...
