Device Installation
27.5"
cm
(69.85
)
LCD/Display Mounting: VESA 75/100
NOTE
: 4x M4 screws are provided for mounting the LCD/Display to the VESA Head. Different screws may be
needed if the provided screws are not the right size. Standoffs may be needed depending on the hole pattern on
the LCD/Display.
NOTE
: Allow 90° rotation in both directions for excess cabling.

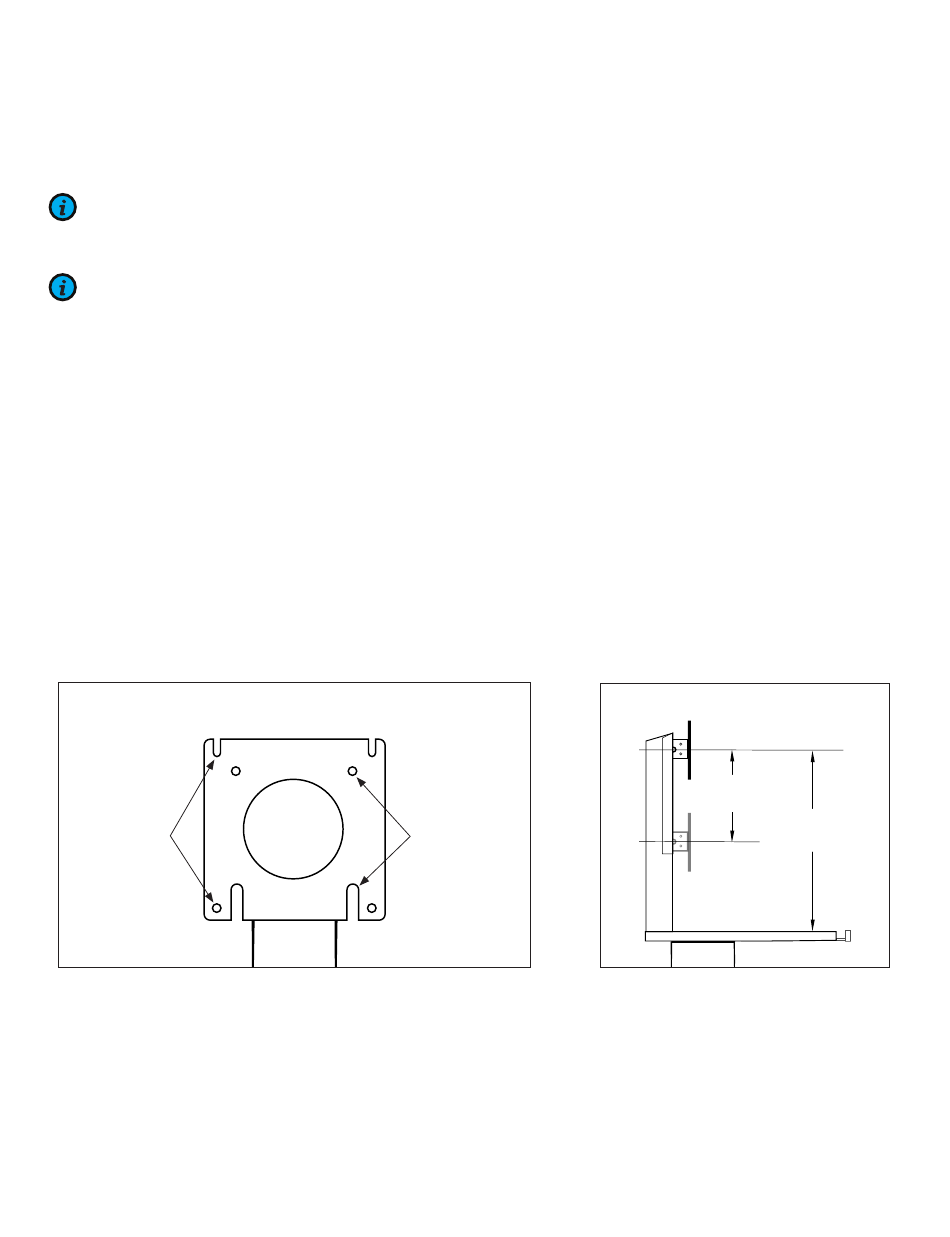

1. Determine the LCD/Display mounting configuration. VESA 75 (75 mm x 75 mm M4 thread) or VESA 100 (100 mm
x 100 mm M4 threads).
2. VESA 100 configuration: Partially thread two screws into the top 2 holes in the back of the LCD/Display. The LCD/
Display can then be hung up on the VESA Head through the two slots at the top. Insert 2 more screws through
the VESA 100 mounting holes at the bottom and tighten all screws (Figure 1).
3. VESA 75 configuration: Rotate the VESA Head so the 2 slots for the VESA 75 configuration are located at the top.
Partially thread two screws into the top 2 holes in the back of the LCD/Display. The LCD/Display can then be hung
up on the VESA Head through the two slots at the top. Insert 2 more screws through the VESA 100 mounting
holes at the bottom and tighten all screws.
4. When removing the LCD/Display, the LCD/Display arm and the LCD/Display should be placed at the highest
position (Figure 2). Remove the 2 bottom screws from the VESA plate, loosen the top 2 screws, and lift the LCD/
Display off the VESA plate.
+/- 90
M4 mounting
hole for VESA 100
Front of the VESA 75/100
Figure 1
32.8"
cm
(83.19
M4 mounting
hole for VESA 75
)
34.5"
cm
(87.67
)
47.5"
(120.65
42.5"
cm
(107.95
)
6.5"
6.5"
(16.51 cm)
cm
(16.51
)
(37.1 cm)
Figure 2
www.amico.com 9
62.3"
cm
(158.12
)
cm
)
27
(69.85
14.6"
14.6"
cm
(37.10
)
