N720_OpenLinux_4G-To-Ethernet User Guide
N720 OpenLinux
4G-To-Ethernet User Guide
Version 1.0
Copyright © Neoway Technology Co., Ltd
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the N720 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Neoway N720

Summary of Contents for Neoway N720

  • Page 1 N720_OpenLinux_4G-To-Ethernet User Guide N720 OpenLinux 4G-To-Ethernet User Guide Version 1.0 Copyright © Neoway Technology Co., Ltd...
  • Page 2 Neoway provides customers complete technical support. If you have any question, please contact your account manager or email to the following email addresses: Sales@neoway.com...
  • Page 3 N720_OpenLinux_4G-To-Ethernet User Guide Revision Record Issue Changes Revised By Date V1.0 Initial draft Li Ting 2017-07 Copyright © Neoway Technology Co., Ltd...
  • Page 4 N720_OpenLinux_4G-To-Ethernet User Guide Contents 1 Demo Board ........................1 2 Configuring LAN Port ...................... 2 3 Configuring WWAN/4G Port ..................4 Copyright © Neoway Technology Co., Ltd...

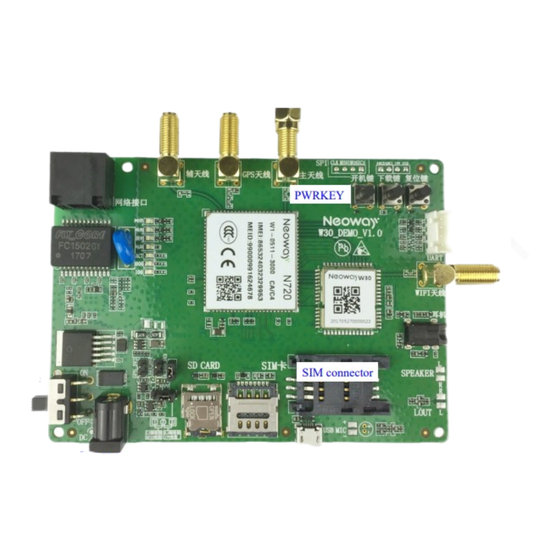

  • Page 5 SIM connector ON/OFF USB port Power port Before configuring the function, insert a SIM card and install the 4G antennas properly. Turn on the power supply and press the PWRKEY to start the board. Copyright © Neoway Technology Co., Ltd...
  • Page 6 If eth0 information is not displayed, input ifconfig eth0 hw ether 00:11:2:33:44:55. 00:11:22:33:44:55 is a MAC address. Step 2 Use a network cable to connect the board and the computer and set the computer to DHCP mode. In adb shell, input brctl show. Copyright © Neoway Technology Co., Ltd...
  • Page 7 If eth0 is not displayed after long time, input brctl addif bridge0 eth0. Eth0 will be added to bridge0 after the network cable connection is detected. Step 3 Check whether the computer obtain the IP address. The IP address of the computer is in form of 192.168.225.xxx. Copyright © Neoway Technology Co., Ltd...
  • Page 8 Enable the 4G data service using QCMAP_CLI. In a CLI window, navigate to adb shell and enter QCMAP_CLI. Select 30 > 1 and 32 > 1 > 1. The following information is displayed after the 4G data service is enabled. Copyright © Neoway Technology Co., Ltd...
  • Page 9 N720_OpenLinux_4G-To-Ethernet_User_Guide Check the network connection of the computer. In a CLI window, ping a valid website. Copyright © Neoway Technology Co., Ltd...
