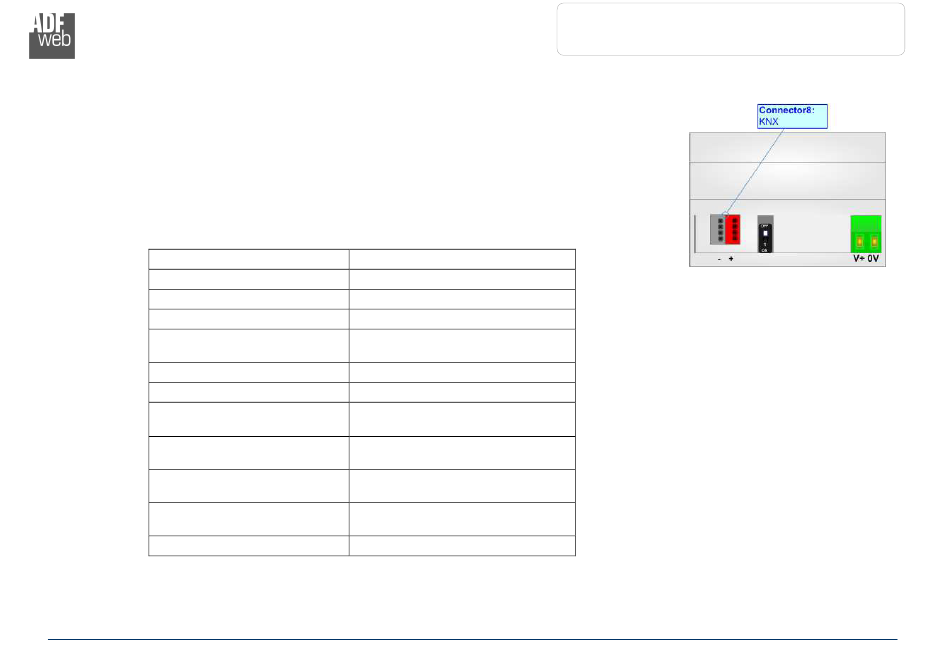

KNX:

KNX is the standard that allows the automated and decentralized management of the technologic plans of
a big typology of structures: commercial buildings, factories, houses, public locals, schools and so on.
KNX can be used in all the applications and functions for the building automations: from lighting to
control dampers, to the security, to the heating monitoring, to the conditioning, to the hydric control and
alarms, to energy management and so on.
Characteristics
Medium
Topology
Baudrate
Device supplying
Device power consumption
Power Supply Unit (PSU)
Number of PSU's per physical
Segment
Number of connectable devices
per physical Segment
Number of addressable devices
per physical Segment
Total cable length per physical
Segment
Distance between two devices
ADFweb.com S.r.l.
Description TP1-256
Shielded Twisted Pair
Linear, Star, Tree or mixed
9600 bps
Normal: bus powered devices
Optional: remote powered devices
3 mA- 12 mA
DC 30 V
Max. 2
Max. 256
Max. 255
Max. 1000 m
Max. 700 m
(*) Taken from KNX specifications
