This section identifies the physical components that constitute the Cisco Catalyst Micro Series Switches.

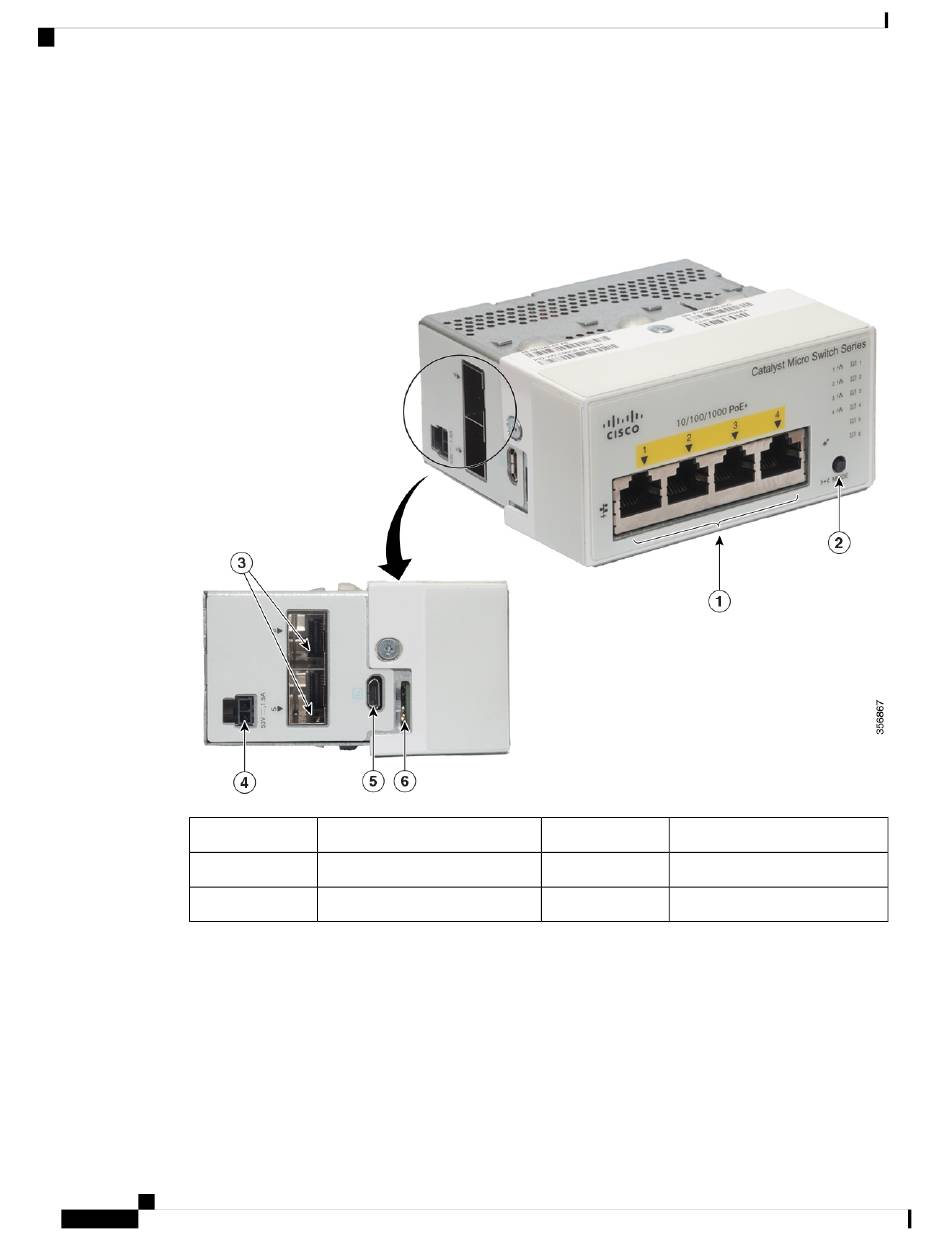

Figure 1: Detailed Architecture of a CMICR-4PS Switch
1
2
3
Cisco Catalyst Micro Series Switch Hardware Installation Guide
2
Four 1 G PoE+ downlink ports
Mode button
Two 1 G SFP uplink ports
4 Power adapter slot
5 Micro USB console port
6 microSD memory card slot
