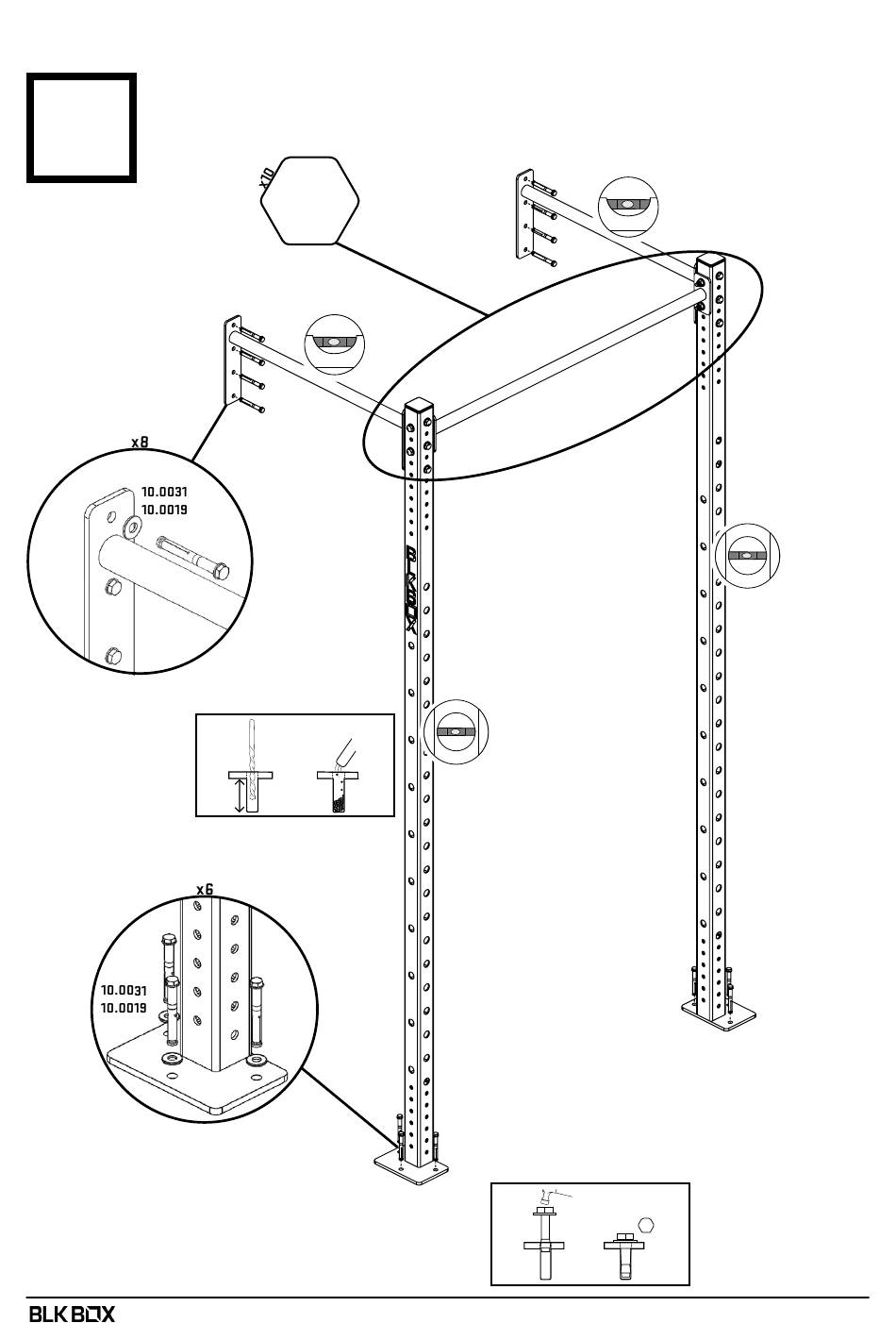

TIGHTEN ALL BOLT ASSEMBLIES WITHIN THE CIRCLE TO THE SPECIFIED TORQUE . ENSURE
2
UPRIGHTS ARE PLUMB AND ALL SINGLE BAR ARE LEVEL. DRILL AND SECURE UPRIGHTS
AND 1.2 SINGLE BAR WM (21-0032-0B) AS SHOWN IN GUIDE.
SLEEVE ANCHOR BOLT FITTING
-DRILL 10MM HOLE, 90MM
DEEP USING PLATE AS
A GUIDE.
-VACUUM OUT THE DUST.
90MM
-HAMMER SLEEVE ANCHOR INTO THE HOLE.
-TIGHTEN SLEEVE ANCHOR TO SPECIFIED TORQUE
USING 13MM SPANNER.
30
Nm
DRILL HOLE VACUUM
SLEEVE ANCHOR BOLT FITTING
30
Nm
HAMMER IN
TIGHTEN
BOLT
