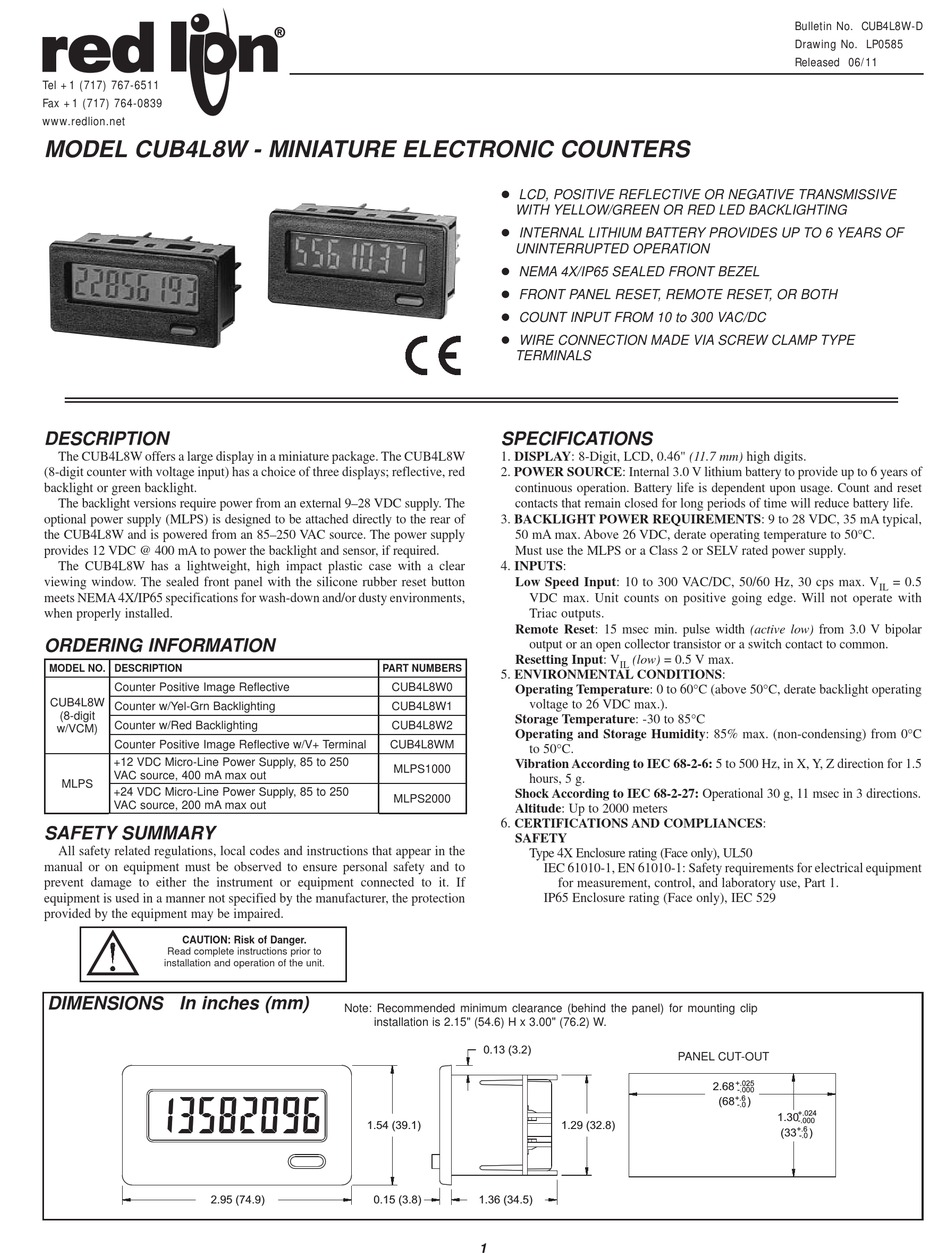

MODEL CUB4L8W - MINIATURE ELECTRONIC COUNTERS
DESCRIPTION

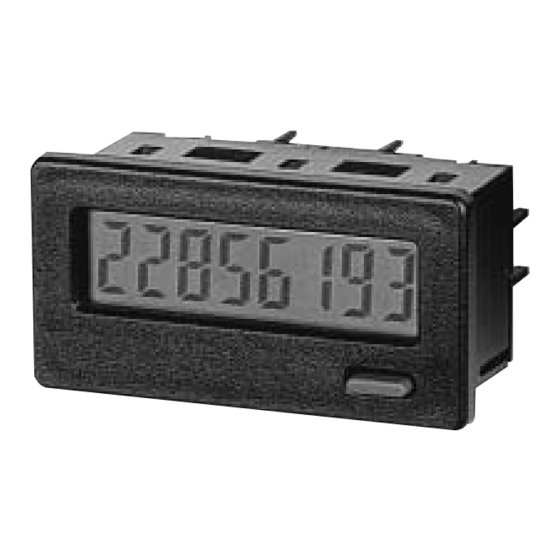

The CUB4L8W offers a large display in a miniature package. The CUB4L8W
(8-digit counter with voltage input) has a choice of three displays; reflective, red
backlight or green backlight.
The backlight versions require power from an external 9–28 VDC supply. The
optional power supply (MLPS) is designed to be attached directly to the rear of
the CUB4L8W and is powered from an 85–250 VAC source. The power supply
provides 12 VDC @ 400 mA to power the backlight and sensor, if required.
The CUB4L8W has a lightweight, high impact plastic case with a clear
viewing window. The sealed front panel with the silicone rubber reset button
meets NEMA 4X/IP65 specifications for wash-down and/or dusty environments,
when properly installed.
ORDERING INFORMATION
MODEL NO. DESCRIPTION
Counter Positive Image Reflective
CUB4L8W
Counter w/Yel-Grn Backlighting
(8-digit
Counter w/Red Backlighting
w/VCM)
Counter Positive Image Reflective w/V+ Terminal
+12 VDC Micro-Line Power Supply, 85 to 250
VAC source, 400 mA max out
MLPS
+24 VDC Micro-Line Power Supply, 85 to 250
VAC source, 200 mA max out
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
DIMENSIONS In inches (mm)
2.95 (74.9)
 LCD, POSITIVE REFLECTIVE OR NEGATIVE TRANSMISSIVE
WITH YELLOW/GREEN OR RED LED BACKLIGHTING
 INTERNAL LITHIUM BATTERY PROVIDES UP TO 6 YEARS OF
UNINTERRUPTED OPERATION
 NEMA 4X/IP65 SEALED FRONT BEZEL
 FRONT PANEL RESET, REMOTE RESET, OR BOTH
 COUNT INPUT FROM 10 to 300 VAC/DC
 WIRE CONNECTION MADE VIA SCREW CLAMP TYPE
TERMINALS
SPECIFICATIONS
1. DISPLAY: 8-Digit, LCD, 0.46" (11.7 mm) high digits.
2. POWER SOURCE: Internal 3.0 V lithium battery to provide up to 6 years of
continuous operation. Battery life is dependent upon usage. Count and reset
contacts that remain closed for long periods of time will reduce battery life.
3. BACKLIGHT POWER REQUIREMENTS: 9 to 28 VDC, 35 mA typical,
50 mA max. Above 26 VDC, derate operating temperature to 50°C.
Must use the MLPS or a Class 2 or SELV rated power supply.
4. INPUTS:
Low Speed Input: 10 to 300 VAC/DC, 50/60 Hz, 30 cps max. V
Remote Reset: 15 msec min. pulse width (active low) from 3.0 V bipolar
Resetting Input: V
PART NUMBERS
5. ENVIRONMENTAL CONDITIONS:
CUB4L8W0
Operating Temperature: 0 to 60°C (above 50°C, derate backlight operating
CUB4L8W1
Storage Temperature: -30 to 85°C
CUB4L8W2
Operating and Storage Humidity: 85% max. (non-condensing) from 0°C
CUB4L8WM
Vibration According to IEC 68-2-6: 5 to 500 Hz, in X, Y, Z direction for 1.5
MLPS1000
Shock According to IEC 68-2-27: Operational 30 g, 11 msec in 3 directions.
MLPS2000
Altitude: Up to 2000 meters
6. CERTIFICATIONS AND COMPLIANCES:
SAFETY
Note: Recommended minimum clearance (behind the panel) for mounting clip
installation is 2.15" (54.6) H x 3.00" (76.2) W.
0.13 (3.2)
1.54 (39.1)
0.15 (3.8) 1.36 (34.5)
1
VDC max. Unit counts on positive going edge. Will not operate with
Triac outputs.
output or an open collector transistor or a switch contact to common.
(low) = 0.5 V max.
IL
voltage to 26 VDC max.).
to 50°C.
hours, 5 g.
Type 4X Enclosure rating (Face only), UL50
IEC 61010-1, EN 61010-1: Safety requirements for electrical equipment
for measurement, control, and laboratory use, Part 1.
IP65 Enclosure rating (Face only), IEC 529
PANEL CUT-OUT
1.29 (32.8)
Bulletin No. CUB4L8W-D
Drawing No. LP0585
Released 06/11
IL
+.025
2.68
-.000
(68 +.6 )
-.0
+.024
1.30
-.000
+.6
(33 )
-.0
= 0.5
