USE AND CARE GUIDE

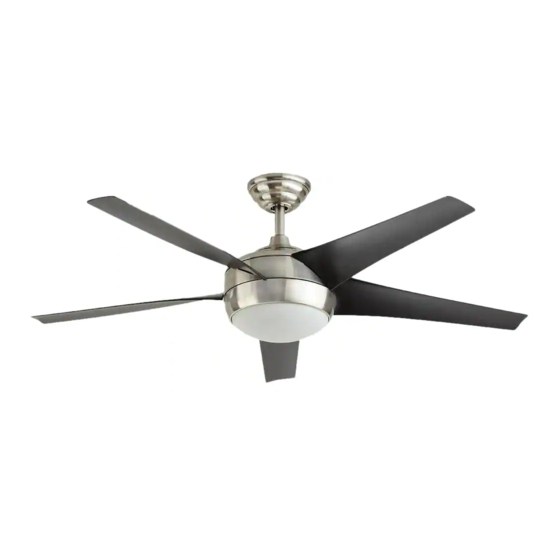

WINDWARD IV 52-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
"Product Overview" section.
improvement needs. Thank you for choosing Home Decorators Collection!
THANK YOU
Item #1002 543 114, 1002 543 113,
1002 543 115, 1002 543 116
Model #91662, 91663, 91661, 91666
UL Model #52-WWDIV
Advertisement
Related Manuals for Home Decorators Collection WINDWARD IV
Summary of Contents for Home Decorators Collection WINDWARD IV
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..............2 Assembly ................7 Safety Information ............... 2 Operation ................14 Warranty ................3 Care and Cleaning ............. 15 Pre-Installation ..............3 Troubleshooting ..............15 Installation ................6 Safety Information READ AND SAVE THESE INSTRUCTIONS. WARNING: To reduce the risk of personal injury, do not bend the blade brackets (also referred to as To reduce the risk of electric shock, ensure the electricity has... -
Page 3: Warranty
A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by law. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Blade attachment screws Wire connecting nut Rubber Gasket...
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Slide-on mounting bracket Blade (inside canopy) Glass bowl Ball/downrod assembly LED bulbs (9.5 Watt, max.) Canopy with canopy ring attached Receiver Decorative motor collar cover Remote (batteries included) Fan-motor assembly Extension lead wires Light kit pan Light kit fitter assembly...
-
Page 6: Installation
Installation MOUNTING OPTIONS NOTE: You may need a longer downrod to maintain WARNING: To reduce the risk of fire, electric shock or proper blade clearance when installing on a steep, sloped personal injury, mount to outlet box marked “acceptable for fan support of 35lbs. (15.9 Kg) or less” using the ceiling. -
Page 7: Assembly
Assembly - Standard Ceiling Mount Preparing for mounting Routing the wires □ □ Route the wires exiting the top of the fan motor Remove the canopy ring (FF) from the canopy (C) by turning assembly (E) into the decorative motor collar cover (D) the ring counter-clockwise until it unlocks. - Page 8 Assembly - Close-To-Ceiling Mount Close-to-Ceiling Mounting Routing the wires □ □ Remove the canopy ring (FF) from the canopy (C) by turn- Remove three of the six screws and lock washers (KK)(every ing the ring counter-clockwise until it unlocks. other one) securing the motor collar to the top of the fan- □...
- Page 9 Assembly - Hanging the Fan Hanging the fan Attaching the fan to the electrical box WARNING: The hook as shown is only to balance the WARNING: To reduce the risk of fire, electric shock or personal injury, mount to outlet box marked fan while attaching wiring.
- Page 10 Assembly - Hanging the Fan (continued) Setting the remote control codes Installing the receiver WARNING: To reduce the risk of fire or electric shock, NOTE: The frequencies on your receiver and hand unit have remember to disconnect power. The electrical wiring must been preset at the factory.
- Page 11 Assembly - Hanging the Fan (continued) Wiring the receiver to the household Wiring the receiver to the fan wiring WARNING: To avoid possible electrical shock, turn the electricity NOTE: The fan comes with 12 in. lead wires for use with the off at the main fuse box before wiring.
- Page 12 Assembly - Hanging the Fan (continued) Close-to-Ceiling mounting Mounting the fan WARNING: When using the standard ball/downrod mounting, the WARNING: The locking slots of the celling canopy are provided only tab in the ring at the bottom of the mounting bracket must rest in as an aid to mounting.
- Page 13 Assembly - Installing the Light Kit Attaching the light kit pan Attaching the light kit fitter assembly □ Remove one screw (NN) from the black bracket below the CAUTION: To reduce the risk of electric shock, disconnect fan motor assembly (E). Loosen, but do not remove the the electrical supply circuit to the fan before installing the other two screws.
-
Page 14: Operation
Operation CAUTION: This device complies with part 15 of the FCC rules. Changes or modifications not expressly approved by the manufacturer could void your authority to operate this equipment. Remote Control - Your fan is equipped with a remote control to operate the speed and lights of your new ceiling fan. -
Page 15: Care And Cleaning
Care and Cleaning WARNING: Make sure the power is off before cleaning your fan. □ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling. □... - Page 16 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
