Item #1002315854
Model #YG622-NI
USE AND CARE GUIDE

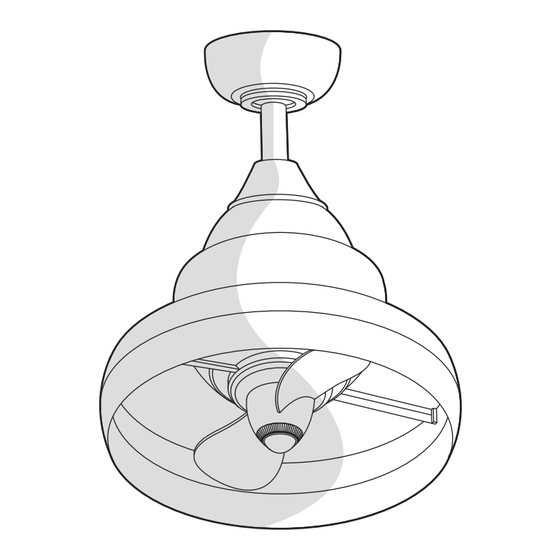

NOVAK OSCILLATING 14 IN. CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
THANK YOU
Advertisement
Table of Contents
Related Manuals for Home Decorators Collection NOVAK YG622-NI
Summary of Contents for Home Decorators Collection NOVAK YG622-NI
- Page 1 USE AND CARE GUIDE NOVAK OSCILLATING 14 IN. CEILING FAN Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............Operation ..............Remote Control Operating Instructions ........Safety Information ............Care and Cleaning ............Warranty ................. Troubleshooting ............Pre-installation .............. Specifications ................Service Parts ..............Tools Required ................. Hardware Included ..............Package Contents ..............Installation .............. -
Page 3: Safety Information
Safety Information To reduce the risk of electric shock, ensure electricity has However, there is no guarantee that interference will not occur been turned off at the circuit breaker or fuse box before in a particular installation. If this equipment does cause harmful beginning. -
Page 4: Warranty
Warranty We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase by the original purchaser. -
Page 5: Hardware Included
Pre-Installation (continued) HARDWARE INCLUDED HARDWARE INCLUDED NOTE: Hardware shown to actual size unless noted otherwise in the table below. Part Part Description Description Quantity Quantity Plastic wire nut Canopy mounting screw (preassembled) Clevis pin (preassembled) Cotter pin (preassembled) Collar setscrew (preassembled) Cross pin (preassembled) Setscrew (preassembled) 1.5V AAA battery (not to scale) -
Page 6: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS PACKAGE CONTENTS Part Part Description Description Quantity Quantity Part Part Description Description Quantity Quantity Mounting bracket (preassembled) Coupling cover Canopy Fan motor assembly Canopy bottom cover (preassembled) Receiver Hanger ball/downrod assembly Remote control... -
Page 7: Installation
Installation MOUNTING OPTIONS MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric shock, or WARNING: This fan is not suitable for sloped ceilings. other personal injury, mount the fan only on an outlet box or supporting system marked acceptable for fan support of 35 lbs (15.9 kg) or less and use mounting screws provided with the outlet box. -
Page 8: Assembly
Assembly Preparing the canopy Preparing the motor □ □ Remove the cotter pin (DD) and clevis pin (CC), and Remove the canopy bottom cover (C) from the canopy loosen the two collar setscrews (EE) from the motor (B) by turning the canopy bottom cover (C) counter- collar. -
Page 9: Hanging The Fan
Assembly — Hanging the Fan Hanging the fan from the mounting Installing the mounting bracket bracket to the electrical box □ Carefully lift the fan motor head (F) up to the mount- WARNING: To reduce the risk of fire, electric shock, or ing bracket (A) and seat the hanger ball/downrod other personal injury, mount the fan only on an outlet box or assembly (D) in the mounting bracket (A) socket. - Page 10 Assembly — Hanging the Fan (continued) Preparing the receiver and remote control NOTE: The frequencies on your receiver and remote control have been preset at the factory. Before installing the receiver, make sure the dip switches on the receiver and remote control are set to the same frequency.
- Page 11 Assembly — Hanging the Fan (continued) □ If your outlet box (JJ) has a ground wire (green Making the electrical connections or bare copper) connect it to the fan ground wires; otherwise connect the hanger ball/downrod assembly (D) ground wire to the mounting bracket (A). WARNING: Check to see that all connections are tight, □...
- Page 12 Assembly — Hanging the Fan (continued) Attaching the canopy bottom Installing the canopy cover to the canopy WARNING: Make sure the tab on the mounting bracket (A) NOTE: Adjust the canopy mounting screw (BB) as necessary properly sits in the groove in the hanger ball/downrod until the canopy (B) and canopy bottom cover (C) are snug.
-
Page 13: Operation
Operation REMOTE CONTROL OPERATING INSTRUCTIONS REMOTE CONTROL OPERATING INSTRUCTIONS - Press and release the button to turn the fan on or off. - Press and release 1 time - turns the fan on high speed. - Press and release 2 times - turns the fan on medium speed. - Press and release 3 times - turns the fan on low speed. -
Page 14: Care And Cleaning
Care and Cleaning Do Do Do not Do not □ □ Check the support connections, brackets, and blade Use water when cleaning. Water could damage the motor, attachments twice a year. Make sure they are secure. or the wood, or possibly cause an electrical shock. Because of the fan’s natural movement, some □... -
Page 15: Service Parts
Service Parts Part Part Description Description Part Part Description Description Mounting bracket (preassembled) Plastic wire nut Canopy Canopy mounting screw (preassembled) Canopy bottom cover (preassembled) Clevis pin (preassembled) Hanger ball/downrod assembly Cotter pin (preassembled) Coupling cover Collar setscrew (preassembled) Fan motor assembly Cross pin (preassembled) Receiver Setscrew (preassembled) - Page 16 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use. YG622NI0001-A...
