you may need to configure it to be a DHCP server. See your
router instructions for more information.

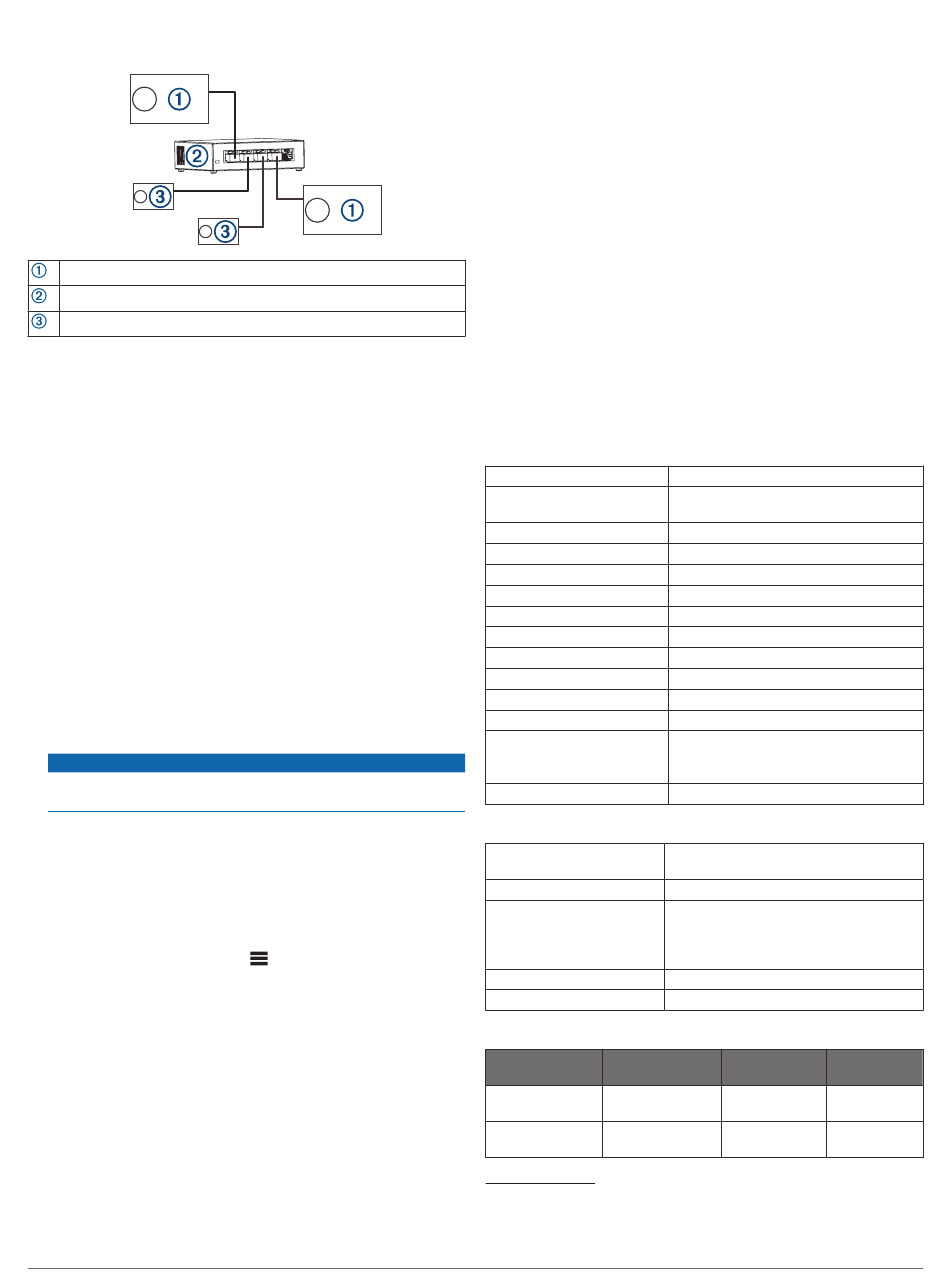

Fusion PartyBus stereo
Wired network switch or wired network router
Fusion PartyBus zone stereo or remote control
Constructing a Network
You should have a basic understanding of networking when
building a network for Fusion PartyBus devices.
These instructions guide you through the basics of building and
configuring a network, and should apply to most situations. If
you need to perform advanced networking tasks, such as
assigning static IP addresses to devices on the network or
configuring advanced settings on a connected router, you may
need to consult a networking professional.
1
Determine the installation location of the Fusion PartyBus
devices you want to connect to the network.
NOTE: Wired connections are more reliable than wireless
connections. When planning your network, you should run
network cables instead of using wireless connections when
possible.
2
Determine the installation location of any needed network
routers or switches.
3
Route Cat5e or Cat6 network cable to the installation
locations of the stereos, switches, and router.
4
Connect the network cables to the stereos, switches, and
router.
Do not completely install the stereos yet. You should test the
network before you install the stereos.
5
Turn on all devices connected to the network, including
wireless devices.
6
If you are using a network router (wired or wireless), consult
the documentation provided with your router to configure the
router as the DHCP server, if necessary.
All stereos should use their default configuration (DHCP
CLIENT).
7
Test the network by selecting
devices connected to the on the network, and select an
option:
• If any devices are not available to the network,
troubleshoot the network.
• If all devices are available to the network, complete the
installation for each stereo, if necessary.
Network Troubleshooting
If you cannot see or connect to Fusion PartyBus devices on the
network, check the following:
• Verify that only one device, either a stereo or a router, is
configured as a DHCP server.
• Verify that all Fusion PartyBus devices, network switches,
routers, and wireless access points are connected to the
network and turned on.
Apollo MS-RA670 Installation Instructions
NOTICE
> GROUPS to view a list of
• Verify that wireless Fusion PartyBus devices are connected
to a wireless router or wireless access point on the network.
NOTE: Wired connections are more reliable than wireless
connections. If possible, you should connect devices to the
network using an Ethernet cable.
• You may experience wireless interference if there are many
nearby wireless access points. Change the channel on your
router or wireless access point to test for and correct
interference.
• Connecting a Bluetooth
®
wireless access point or client may reduce wireless
performance. Disconnect Bluetooth devices to test for and
correct interference.
• If you configured static IP addresses, verify that every device
has a unique IP address, that the first three sets of numbers
in the IP addresses match, and that the subnet masks on
every device are identical.
• If you have made configuration changes that might be
causing networking issues, reset all network settings to the
factory default values.

Stereo Information

Specifications

Weight
Water rating
Operating temperature range From 0 to 50°C (from 32 to 122°F)
Storage temperature range
Input voltage
Current (max.)
Current (muted)
Current (off)
Fuse
NMEA 2000 LEN @ 9 Vdc
Bluetooth wireless range
ANT wireless range
®
Wireless frequencies/
protocols
Compass-safe distance
On-board, Class D amplifier
Output music power per
channel
Total output peak power
Output power per channel
Line output level (max.)
Aux input level (typical)
Tuner frequencies
Tuner Europe and
Australasia
FM radio 87.5 to 108 MHz
frequency range
FM frequency 50 kHz
step
1
The device withstands incidental exposure to water of up to 1 m for up to 30 min,
and is protected against powerful jets of water. For more information, go to
www.garmin.com/waterrating.
2
The stereo may limit the output power to prevent the amplifier from overheating,
and to maintain the audio dynamics.
device to a stereo configured as a
750 g (26.5 oz.)
IEC 60529 IPX6 and IPX7 (front of
stereo only, when properly installed)
From -20 to 70°C (from -4 to 158°F)
From 10.8 to 16 Vdc
15 A
Less than 700 mA
Less than 200 mA
15 A mini blade-type
1 (50 mA)
Up to 10 m (30 ft.)
Up to 3 m (10 ft.)
Bluetooth 2.4 GHz @ from 13.29 dBm
nominal
ANT 2.4 GHz @ from 6.92 dBm nominal
20 cm (7.87 in.)
4 x 70 W max. 2 ohm
280 W max.
4 x 43 W RMS at 14.4 Vdc input, 2 ohm,
2
10% THD
4 x 26 W RMS at 14.4 Vdc input, 4 ohm,
2
10% THD
5.5 V (peak to peak)
1 V RMS
USA Japan
87.5 to 76 to 95 MHz
107.9 MHz
200 kHz 50 kHz
