MRC 0001819 Quick Start Manual

PROGRAMMING
This decoder supports all program modes and read back features. With MRC
Prodigy Advance DCC you can read its address and all CV values.
CV Register Description
CV1 R1 Short address
CV2 R2 Start voltage
CV3 R3 Acceleration
CV4 R4 Deceleration
CV5 --- Top voltage
--- R6 Page number
CV29 R5 Basic configuration
CV7 R7 Manufacturer version number
CV8 R8 Manufacturer ID
CV17 --- Long address upper byte
CV18 --- Long address low er byte
CV19 --- Advanced consist address
When CV21=0, all accessory function w ill follow
CV21 --- its ow n address. When CV21=1, all functions w ill
follow the consist address
Master volume control(0=off, 1=low ,
CV49
2=mid,3=max)
CV50 --- Whistle type
CV51 --- Whistle volume
CV52 --- Bell type
CV53 --- Bell volume
CV54 --- Bell ring rate
CV55 --- Chuff type (12 types)
CV56 --- Chuff volume
CV57 --- Brake squeal volume
CV58 --- Air release volume
CV59 --- Blow er hiss volume
CV60 --- Fire box door volume
CV61 --- Injector volume
CV62 --- Coupling volume
CV63 --- Air pump volume
CV64 --- Rail clack volume
CV67-94 28 speed steps table w hile CV29.4=1
CV105 --- User identification number
CV106 --- User identification number
CV112 --- Conductor volume
CV114 Air pump type
CV115 --- Auto brake squeal enable/disable
CV118 Shoveling volume
CV119 --- Coupling fire volume
CV120 --- Chuff rate
CV121 --- Chuff start point
CV122 --- Double chuff enable
Back emf on/off(1=0n, you must have a motor
CV123 ---
load to get chuff sound)
Factory default setting, program it to1 w ill restore
CV125 ---
all the CV to default settng
SPEED TABLE CV67-CV94 FOR 28 SPEED STEPS
When CV29's bit 4 is set to "1" it will use the speed table formed by CV67-CV94
to control speed (motor voltage). It allows you to setup each speed for all 28
speed steps. First, program CV29 to 18 for short addresses (1-127) or program
Range Default
CV29 to 50 for long addresses (128-9999) to enable speed table control. Then
1-127 3
select throttle to 28 speed steps and run your loco at speed step 1. Use program
0-32 0
CV on the main to change CV67's value (1-255) to adjust step 1's speed. The
0-32 8
kick voltage, CV65 is only applied when the speed step changes from 0 to 1. You
should switch between 0 to 1 many times to check step 1's speed. When done
0-32 8
with CV67, select speed step 2 and program CV68. CV68's value must be
0-32 32
greater then CV67's. When done with CV67-CV94, use read back CV to make
--- ---
sure their values are in increasing order.
--- 2
Note: When using MRC Prodigy DCC to program addresses it will automatically
disable the speed table (set CV29's bit 4 to "0"). Programming CV125 to 1 will
--- 19
also disable the speed table and re-program CV67-CV94 to a default linear
--- 143
speed setting.
192-231 192
0-255 3
TROUBLE SHOOTING
0-127 0
This decoder should perform well with all DCC systems. The maximum DCC
output should be less than 21 V. If the locomotive does not respond to com-
0-1 0
mands, it may have lost its address. Please re-program the address and program
CV19 to 0 (disable consist). If it responds slowly, you should clear its momentum
by reprogramming CV3 and CV4 to zero. If step 1's speed is too high, you should
0-3 2
program start voltage, CV2 to zero. If its top speed is too slow, program top
0-33 4
voltage CV5 to 31. You should also clean the track to improve electrical pickup.
Read your DCC system manual to learn how to program and operate the decoder.
0-3 3
For more information about registers/CVs and their functions, please refer to the
0-7 3
NMRA DCC Standard & Recommended Practices, RP-9.2.2. This is available
0-3 3
directly from the NMRA or their website at www.nmra.org. Whenever the
0-50 10
decoder doesn't work please use the program track to program CV# 125 with
0-11 0 value 1 to restore the decoder to factory settings. This should bring the decoder
to life with address #3.
0-3 3
0-3 1
FCC COMPLIANCE
0-3 3
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions. (1) This device may not cause harmful interference,
0-3 3
and (2) This device must accept any interference received, including interfer-
0-3 3
ence that may cause undesired operation.
0-3 3
0-3 3
RETURN PROCEDURE
0-3 0
If it should become necessary to return your decoder, unplug the decoder and
0-3 3
return the decoder only. Include a letter (printed clearly) with your name,
1-255 linear address, a daytime telephone number, and a detailed description of the problem
you are experiencing. Please include a $25.00 check to cover shipping and
0-255 0
handling. Be certain to return only the decoder.
0-255 0
Warranty does not include abuse, neglect, or using this product for
0-3 3
anything other than it's intended purpose. Warranty coverage will be
0-3 3
handled on a case by case basis, and other charges may apply for
0-1 1(enable)
repair/replacement of the product.
0-3 3
Send the decoder to:
0-3 3
Model Rectifier Corporation
0-30 12
Attn: Parts & Service
80 Newfield Avenue
0-7 3
Edison, NJ 08837-3817 U.S.A
0-1 1(enable)
0-1 0
--- 0

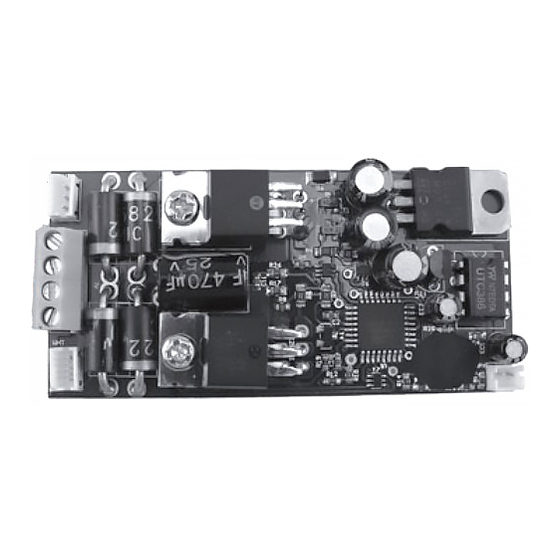

G Gauge DC/DCC
Steam Sound Decoder with
12 different chuff sounds
Thank you for purchasing our most advanced DC/DCC
locomotive sound decoder. Combined with any DCC
System or the MRC Blackbox, our true live capture digital
sound decoder will make your model railroad come to life.
• Twelve types of synchronized chuff sounds
• Double chuff enabling
• 5 amp capacity
•
34 different types of whistles and 8 types of bells
• Programmable individual sound volumes
• Programmable either 2-digit or 4-digit addresses
• Programmable start voltage and top voltage
• Programmable acceleration and decelaration rates
• Programmable 14, 28, 128 speed steps
• Supports full read back of address and CV values
• Selectable factory default speed curve
• Advanced speed table control CV67-CV94
• Kick start voltage control CV65
•
Directional Head lights
•
Mars light and firebox flicker
• 28 accessory functions (F1-F28)
• Supports full read back of CV's
• Supports advanced consisting (CV19)
• Supports programming on the main (OPS mode)
• Compatible with NMRA DCC standards
• Complies with Part 15 of FCC Rules
• 40 mm speaker included
• Dimensions: 70.5mm x 34.0mm x 11.4mm
Printed in USA
Item #0001819
