MRC 0001812 Quick Start Manual

PROGRAMMING
This decoder supports all program mode and read back feature. With MRC Prodigy
Advance DCC you can read its address and CV value.
CV Register Description
CV1 R1 Short address
CV2 R2 Start voltage
CV3 R3 Acceleration
CV4 R4 Deceleration
CV5 --- Top voltage
Speed curve select (0=linear, 1=slow
CV6
increase, 2=fast increase at slow speed
--- R6 Page number
CV29 R5 Basic configuration
CV7 R7 Manufacturer version number
CV8 R8 Manufacturer ID
CV17 --- Long address upper byte
CV18 --- Long address lower byte
CV19 --- Advanced consist address
When CV21=0, functions follow its ow n address.
CV21 ---
CV21=1, functions follow the consist address
CV49 Sound on/off except horn that is alw ays on
CV50 --- Horn type (34 types)
CV51 --- Horn volume
CV52 --- Bell type (8 types)
CV53 --- Bell volume
CV54 --- Bell ring rate
CV55 --- Diesel rumble volume
CV56 --- Brake squeal volume
CV57 --- Dynamic brake volume
CV58 --- Air release volume
CV59 --- Air pump volume
CV60 --- Safety pop valve volume
CV61 --- Engine cooling fan volume
CV62 --- Coupling volume
CV64 --- Rail wheel clack
CV65 Kick start voltage
CV67-94 28 speed steps table while CV29.4=1
CV105 --- User identification number
CV106 --- User identification number
CV113 --- Coupling fire volume
CV114 --- Brake release volume
CV115 --- Auto brake squeal enable/disable
light mode, 0=normal headlight
CV117
1=off, dim, bright cycle, 2=rule 17
CV122 --- Notch mode, 0=auto, 3=manual
Prime mover type (4=diesel off/all other
CV123
sounds on)
Programming to "1" will restore some CV's
CV125 ---
to factory settings
SPEED TABLE CV67-CV94 FOR 28 SPEED STEPS
When CV29's bit 4 is set to "1" it will use the speed table formed by CV67-CV94
to control speed (motor voltage). It allows you to setup each speed for all 28
speed steps. First, program CV29 to 18 for short addresses (1-127) or program
Range Default
CV29 to 50 for long addresses (128-9999) to enable speed table control. Then
1-127 3
select throttle to 28 speed steps and run your loco at speed step 1. Use program
0-32 0 CV on the main to change CV67's value (1-255) to adjust step 1's speed. The
kick voltage, CV65 is only applied when the speed step changes from 0 to 1. You
0-32 0
should switch between 0 to 1 many times to check step 1's speed. When done
0-32 0
with CV67, select speed step 2 and program CV68. CV68's value must be
0-32 32
greater then CV67's. When done with CV67-CV94, use read back CV to make
sure their values are in increasing order.
0-2 0
Note: When using MRC Prodigy DCC to program addresses it will automatically
disable the speed table (set CV29's bit 4 to "0"). Programming CV125 to 1 will
--- ---
also disable the speed table and re-program CV67-CV94 to a default linear
--- 2
speed setting.
--- 32
TROUBLE SHOOTING
--- 143
This decoder should perform well with all DCC systems. The maximum DCC
192-231 192
output should be less than 15 V. If the locomotive does not respond to com-
0-255 3
mands, it may have lost its address. Please re-program the address and program
0-127 0
CV19 to 0 (disable consist). If it responds slowly, you should clear its momentum
by reprogramming CV3 and CV4 to zero. If step 1's speed is too high, you should
--- 0
program start voltage, CV2 to zero. If its top speed is too slow, program top
voltage CV5 to 31. You should also clean the track to improve electrical pickup.
0-1 1
Read your DCC system manual to learn how to program and operate the decoder.
0-33 4
For more information about registers/CVs and their functions, please refer to the
0-3 3
NMRA DCC Standard & Recommended Practices, RP-9.2.2. This is available
0-7 3 directly from the NMRA or their website at www.nmra.org. Whenever the
decoder doesn't work please use the program track to program CV# 125 with
0-3 3
value 1 to restore the decoder to factory settings. This should bring the decoder
0-50 3
to life with address #3.
0-3 3
FCC COMPLIANCE
0-3 3
This device complies with part 15 of the FCC Rules. Operation is subject to the
0-3 3
following two conditions. (1) This device may not cause harmful interference,
0-3 3
and (2) This device must accept any interference received, including interfer-
ence that may cause undesired operation.
0-3 3
0-3 3
RETURN PROCEDURE
0-3 3
This decoder carries a 6 month warranty against factory defects. This warranty
0-3 3
does not include abuse, misuse, neglect, improper installation, or any modifications
0-3 3
made to this decoder, including but not limited to the removal of the NMRA plug if
0-63 63
applicable. If it should become necessary to return the decoder for warranty repair/
replacement, please include a copy of the original sales receipt. Please
1-255 linear
include a letter (printed clearly) with your name, address, daytime phone number,
0-255 0
and a detailed description of the problem you are experiencing. Please also include
0-255 0
a check or a money order for $8.00 to cover return shipping and handling. If the
0-3 3 decoder is no longer considered under warranty, then please include a check or a
money order for $29.00 to cover the cost of repair or replacement and return
0-3 0
shipping and handling. Be certain to return the decoder only.
0-1 1(enable)
Any questions regarding Warranty Policy can be directed to our Customer
Service Department by calling 732-225-6360 between the hours of 8:30am
0-2 0
and 6:00pm EST, or by emailing: rrtech@modelrectifier.com
0-3 0
Send the decoder to:
2
0-4
--- 0
Model Rectifier Corporation
Attn: Parts & Service
80 Newfield Avenue
Edison, NJ 08837-3817 U.S.A
N Gauge Synchronized
Diesel Sound Decoder with
Four Authentic Prime Mover Sounds
Item #0001812
Thank you for purchasing our highly advanced DCC locomotive
sound decoder. Combined with any DCC System, our new
decoder with authentic diesel sound truly will make your model
railroad come to life.
• Four Synchronized diesel prime mover sounds with
randomly associated locomotive sounds
•
User selectable 34 different horns and 8 bells
•
28 accessory functions allowing more sound control
than ever
• Programmable individual sound volumes
• 0.75 amp capacity
• Programmable for either 2-digit (1-127) or 4-digit
(1-9999) addresses
• Programmable start and top voltage
• Programmable acceleration and deceleration rate
• Programmable 14, 28, 128 speed steps
• Selectable factory default speed curve
•
Directional lighting (F0)
• Supports full read back of CV's
• Supports advanced consisting (CV19)
• Supports programming on the main (OPS mode)
• Compatible with NMRA DCC standards
• Complies with Part 15 of FCC
• 10mm speaker included

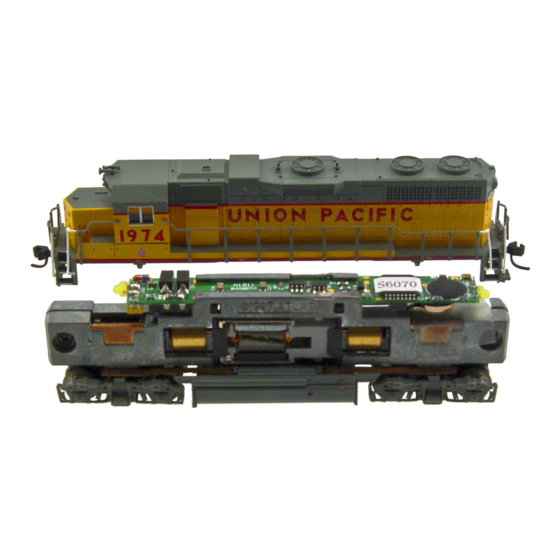

• Directly replaces most Atlas N scale loco's PC boards
