MRC 0001818 Quick Start Manual

PROGRAMMING
This decoder supports all program modes and read back features. With MRC
Prodigy Advance DCC you can read its address and CV value.
CV Register Description
CV1 R1 Short address
CV2 R2 Start voltage
CV3 R3 Acceleration
CV4 R4 Deceleration
CV5 --- Top voltage
Speed curve select (0=linear, 1=slow
CV6
increase, 2=fast increase at slow speed
--- R6 Page number
CV29 R5 Basic configuration
CV7 R7 Manufacturer version number
CV8 R8 Manufacturer ID
CV17 --- Long address upper byte
CV18 --- Long address lower byte
CV19 --- Advanced consist address
When CV21=0, functions follow its ow n address.
CV21 ---
CV21=1, functions follow the consist address
CV49 Sound on/off except horn that is alw ays on
CV50 --- Horn type (34 types)
CV51 --- Horn volume
CV52 --- Bell type (8 types)
CV53 --- Bell volume
CV54 --- Bell ring rate
CV55 --- Diesel rumble volume
CV56 --- Brake squeal volume
CV57 --- Dynamic brake volume
CV58 --- Air release volume
CV59 --- Air pump volume
CV60 --- Safety pop valve volume
CV61 --- Engine cooling fan volume
CV62 --- Coupling volume
CV63 --- Auto ditch lights flash with horn enable
CV64 --- Rail wheel clack
CV65 Kick start voltage
CV67-94 28 speed steps table while CV29.4=1
CV105 --- User identification number
CV106 --- User identification number
CV113 --- Coupling fire volume
CV114 --- Brake release volume
CV115 --- Auto brake squeal enable/disable
CV116 --- Auto bell with horn enable
light mode, 0=normal headlight
CV117
1=off, dim, bright cycle, 2=rule 17
CV118 ACC1 light mode
CV119 ACC2 light mode
CV121 Ditch flash (=1) or stay on (=0)
CV122 --- Notch mode, 0=auto, 3=manual
CV123 Prime mover type (2=diesel off)
C124 Back emf load control on/off
Programming to "1" will restore some CV's
CV125 ---
to factory settings
SPEED TABLE CV67-CV94 FOR 28 SPEED STEPS
When CV29's bit 4 is set to "1" it will use the speed table formed by CV67-CV94
to control speed (motor voltage). It allows you to setup each speed for all 28
speed steps. First, program CV29 to 18 for short addresses (1-127) or program
Range Default
CV29 to 50 for long addresses (128-9999) to enable speed table control. Then
1-127 3
select throttle to 28 speed steps and run your loco at speed step 1. Use program
0-32 0
CV on the main to change CV67's value (1-255) to adjust step 1's speed. The
0-32 0
kick voltage, CV65 is only applied when the speed step changes from 0 to 1. You
0-32 0
should switch between 0 to 1 many times to check step 1's speed. When done
0-32 32
with CV67, select speed step 2 and program CV68. CV68's value must be
greater then CV67's. When done with CV67-CV94, use read back CV to make
0-2 0
sure their values are in increasing order.
--- ---
Note: When using MRC Prodigy DCC to program addresses it will automatically
--- 2 disable the speed table (set CV29's bit 4 to "0"). Programming CV125 to 1 will
--- 32 also disable the speed table and re-program CV67-CV94 to a default linear
speed setting.
--- 143
192-231 192
TROUBLE SHOOTING
0-255 3
This decoder should perform well with all DCC systems. The maximum DCC
0-127 0
output should be less than 21 V. If the locomotive does not respond to com-
--- 1
mands, it may have lost its address. Please re-program the address and program
CV19 to 0 (disable consist). If it responds to slowly, you should clear its
0-1 1
momentum by reprogramming CV3 and CV4 to zero. If step 1's speed is too high,
0-33 4
you should program start voltage, CV2 to zero. If its top speed is too slow,
0-3 3
program top voltage CV5 to 31. You should also clean the track to improve
0-7 3 electrical pickup. Read your DCC system manual to learn how to program and
operate the decoder. For more information about registers/CVs and their
0-3 3
functions, please refer to the NMRA DCC Standard & Recommended Practices,
0-50 3
RP-9.2.2. This is available directly from the NMRA or their website at
0-3 3
www.nmra.org. Whenever the decoder doesn't work please use the program
0-3 3
track to program CV# 125 with value 1 to restore the decoder to factory settings.
0-3 3
This should bring the decoder to life with address #3.
0-3 3
FCC COMPLIANCE
0-3 3
0-3 3 This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions. (1) This device may not cause harmful interference,
0-3 3
and (2) This device must accept any interference received, including interfer-
0-3 3
ence that may cause undesired operation.
0-1 1(enable)
0-3 3
RETURN PROCEDURE
0-63 63
If it should become necessary to return your decoder, unplug the decoder and
1-255 linear
return the decoder only. Include a letter (printed clearly) with your name,
0-255 0
address, a daytime telephone number, and a detailed description of the problem
0-255 0
you are experiencing. Please include a $15.00 check to cover shipping and
0-3 3
handling. Be certain to return only the decoder.
0-3 0
Warranty does not include abuse, neglect, or using this product for
0-1 1(enable)
anything other than it's intended purpose. Warranty coverage will be
0-1 0(disable)
handled on a case by case basis, and other charges may apply for
repair/replacement of the product.
0-2 0
Send the decoder to:
0-6 0
Model Rectifier Corporation
0-6 0
Attn: Parts & Service
0-1 0
80 Newfield Avenue
0-3 0
Edison, NJ 08837-3817 U.S.A
0-2 1
0-1 0 (off)
--- 0

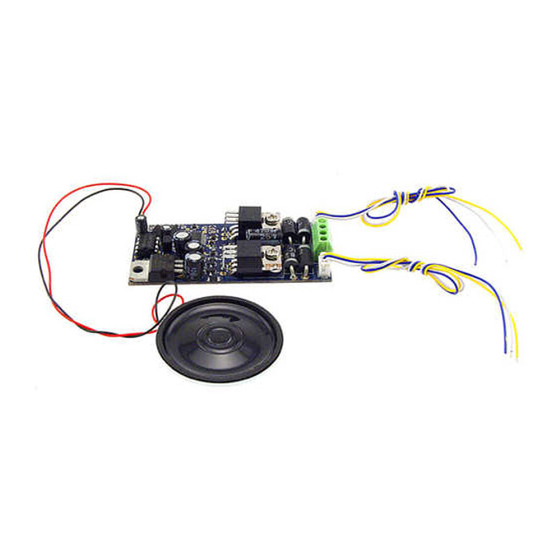

G Gauge DC/DCC
Diesel Sound Decoder with
Two Prime Mover sounds
Thank you for purchasing our most advanced DC/DCC
locomotive sound decoder. Combined with any DCC
System or MRC Blackbox, our true live capture digital
sound decoder will make your model railroad come to life.
• Two types of synchronized diesel prime mover sounds:
Morden large Diesel and Morden diesel switcher
• 5 amp capacity
•
34 different types of horns and 8 types of bells
• Programmable individual sound volumes
• Programmable either 2-digit or 4-digit addresses
• Programmable start voltage and top voltage
• Programmable acceleration and decelaration rates
• Programmable 14, 28, 128 speed steps
• Supports read back address and CV value
• Selectable factory default speed curve
• Advanced speed table control CV67-CV94
• Kick start voltage control CV65
•
3 headlight effects: Directional / rule 17 /off-dim-
bright cycle.
•
7 accessory light effects: ditch lights, mars light,
gyra light, strobe light, prime strobe light and on/off
• 28 accessory functions (F1-F28)
• Supports advanced consisting (CV19)
• Supports programming on the main (OPS mode)
• Compatible with NMRA DCC standards
• Complies with Part 15 of FCC Rules
• 40 mm speaker included
• Dimensions: 70.5mm x 34.0mm x 11.4mm
Printed in USA
Item #0001818
