MRC 0001808 Quick Start Manual

PROGRAMMING
This decoder supports all program modes and read back features. With MRC
Prodigy Advance DCC you can read its address and CV value.
CV Register Description
CV1 R1 Short address
CV2 R2 Start voltage
CV3 R3 Acceleration
CV4 R4 Deceleration
CV5 --- Top voltage
Speed curve select (0=linear, 1=slow
CV6
increase, 2=fast increase at slow speed
--- R6 Page number
CV29 R5 Basic configuration
CV7 R7 Manufacturer version number
CV8 R8 Manufacturer ID
CV17 --- Long address upper byte
CV18 --- Long address lower byte
CV19 --- Advanced consist address
When CV21=0, functions follow its ow n address.
CV21 ---
CV21=1, functions follow the consist address
CV49
Sound on/off except horn that is alw ays on
CV50 --- Horn type (34 types)
CV51 --- Horn volume
CV52 --- Bell type (8 types)
CV53 --- Bell volume
CV54 --- Bell ring rate
CV55 --- Diesel rumble volume
CV56 --- Brake squeal volume
CV57 --- Dynamic brake volume
CV58 --- Air release volume
CV59 --- Air pump volume
CV60 --- Safety pop valve volume
CV61 --- Engine cooling fan volume
CV62 --- Coupling volume
CV64 --- Rail wheel clack
CV65 Kick start voltage
CV67-94 28 s peed steps table while CV29.4=1
CV105 --- User identification number
CV106 --- User identification number
CV113 --- Coupling fire volume
CV114 --- Brake release volume
CV115 --- Auto brake squeal enable/disable
light mode, 0=normal headlight
CV117
1=off, dim, bright cycle, 2=rule 17
CV122 --- Notch mode, 0=auto, 3=manual
Prim e mover type (4=diesel off/all other
CV123
sounds on)
Program ming to "1" will res tore some CV's
CV125 ---
to factory settings
SPEED TABLE CV67-CV94 FOR 28 SPEED STEPS
When CV29's bit 4 is set to "1" it will use the speed table formed by CV67-CV94
to control speed (motor voltage). It allows you to setup each speed for all 28
speed steps. First, program CV29 to 18 for short addresses (1-127) or program
Range Default
CV29 to 50 for long addresses (128-9999) to enable speed table control. Then
1-127 3
select throttle to 28 speed steps and run your loco at speed step 1. Use program
0-32 0
CV on the main to change CV67's value (1-255) to adjust step 1's speed. The
0-32 0 kick voltage, CV65 is only applied when the speed step changes from 0 to 1. You
should switch between 0 to 1 many times to check step 1's speed. When done
0-32 0
with CV67, select speed step 2 and program CV68. CV68's value must be
0-32 32
greater then CV67's. When done with CV67-CV94, use read back CV to make
sure their values are in increasing order.
0-2 0
Note: When using MRC Prodigy DCC to program addresses it will automatically
--- ---
disable the speed table (set CV29's bit 4 to "0"). Programming CV125 to 1 will
also disable the speed table and re-program CV67-CV94 to a default linear
--- 2
speed setting.
--- 32
--- 143
TROUBLE SHOOTING
192-231 192
This decoder should perform well with all DCC systems. The maximum DCC
0-255 3
output should be less than 15 V. If the locomotive does not respond to com-
mands, it may have lost its address. Please re-program the address and program
0-127 0
CV19 to 0 (disable consist). If it responds slowly, you should clear its momentum
--- 0
by reprogramming CV3 and CV4 to zero. If step 1's speed is too high, you should
program start voltage, CV2 to zero. If its top speed is too slow, program top
0-1 1
voltage CV5 to 31. You should also clean the track to improve electrical pickup.
0-33 4
Read your DCC system manual to learn how to program and operate the decoder.
0-3 3
For more information about registers/CVs and their functions, please refer to the
NMRA DCC Standard & Recommended Practices, RP-9.2.2. This is available
0-7 3
directly from the NMRA or their website at www.nmra.org. Whenever the
0-3 3
decoder doesn't work please use the program track to program CV# 125 with
0-50 3
value 1 to restore the decoder to factory settings. This should bring the decoder
0-3 3 to life with address #3.
0-3 3
FCC COMPLIANCE
0-3 3
This device complies with part 15 of the FCC Rules. Operation is subject to the
0-3 3
following two conditions. (1) This device may not cause harmful interference,
and (2) This device must accept any interference received, including interfer-
0-3 3
ence that may cause undesired operation.
0-3 3
0-3 3
RETURN PROCEDURE
0-3 3
This decoder carries a 6 month warranty against factory defects. This warranty
0-3 3
does not include abuse, misuse, neglect, improper installation, or any modifications
0-63 63 made to this decoder, including but not limited to the removal of the NMRA plug if
applicable. If it should become necessary to return the decoder for warranty repair/
1-255 linear
replacement, please include a copy of the original sales receipt. Please
0-255 0
include a letter (printed clearly) with your name, address, daytime phone number,
0-255 0
and a detailed description of the problem you are experiencing. Please also include
a check or a money order for $8.00 to cover return shipping and handling. If the
0-3 3
decoder is no longer considered under warranty, then please include a check or a
0-3 0
money order for $29.00 to cover the cost of repair or replacement and return
0-1 1(enable)
shipping and handling. Be certain to return the decoder only.
Any questions regarding Warranty Policy can be directed to our Customer
0-2 0
Service Department by calling 732-225-6360 between the hours of 8:30am
0-3 0
and 6:00pm EST, or by emailing: rrtech@modelrectifier.com
Send the decoder to:
2
0-4
Model Rectifier Corporation
--- 0
Attn: Parts & Service
80 Newfield Avenue
Edison, NJ 08837-3817 U.S.A

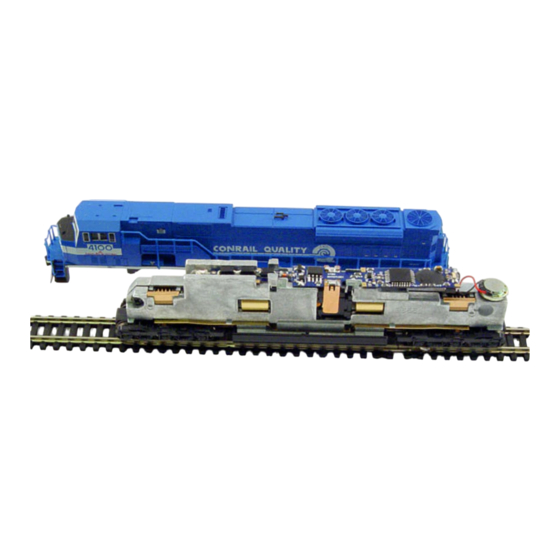

N Gauge DCC/DC Synchronized
Diesel Sound Decoder with
28 Accessory Sound Functions
Thank you for purchasing our most advanced DC/DCC
locomotive sound decoder. Combined with any DCC System
or MRC Blackbox, our true live capture digital sound decoder
will make your model railroad come to life.
• Four types of synchronized diesel prime mover sounds to
choose from
• 0.75 amp capacity
•
34 different types of horns and 8 types of bells
• Programmable individual sound volumes
• Programmable either 2-digit or 4-digit addresses
• Programmable start voltage and top voltage
• Programmable acceleration and decelaration rates
• Programmable 14, 28, 128 speed steps
• Supports full read back of CV's
• Selectable factory default speed curve
• Advanced speed table control CV67-CV94
• Kick start voltage control CV65
•
3 headlight effects: Directional / rule 17 /off-dim-bright
cycle.
• 28 accessory functions (F1-F28)
• Supports advanced consisting (CV19)
• Supports programming on the main (OPS mode)
• Compatible with NMRA DCC standards
• Complies with Part 15 of FCC regulations
• 10mm, 32 ohm speaker included
• PCB size: 77mm x 9.7mm x 3.5mm
• Directly replaces Kato SD80 circuit board
Print in USA
Item #0001808 (Fits Kato SD80)
