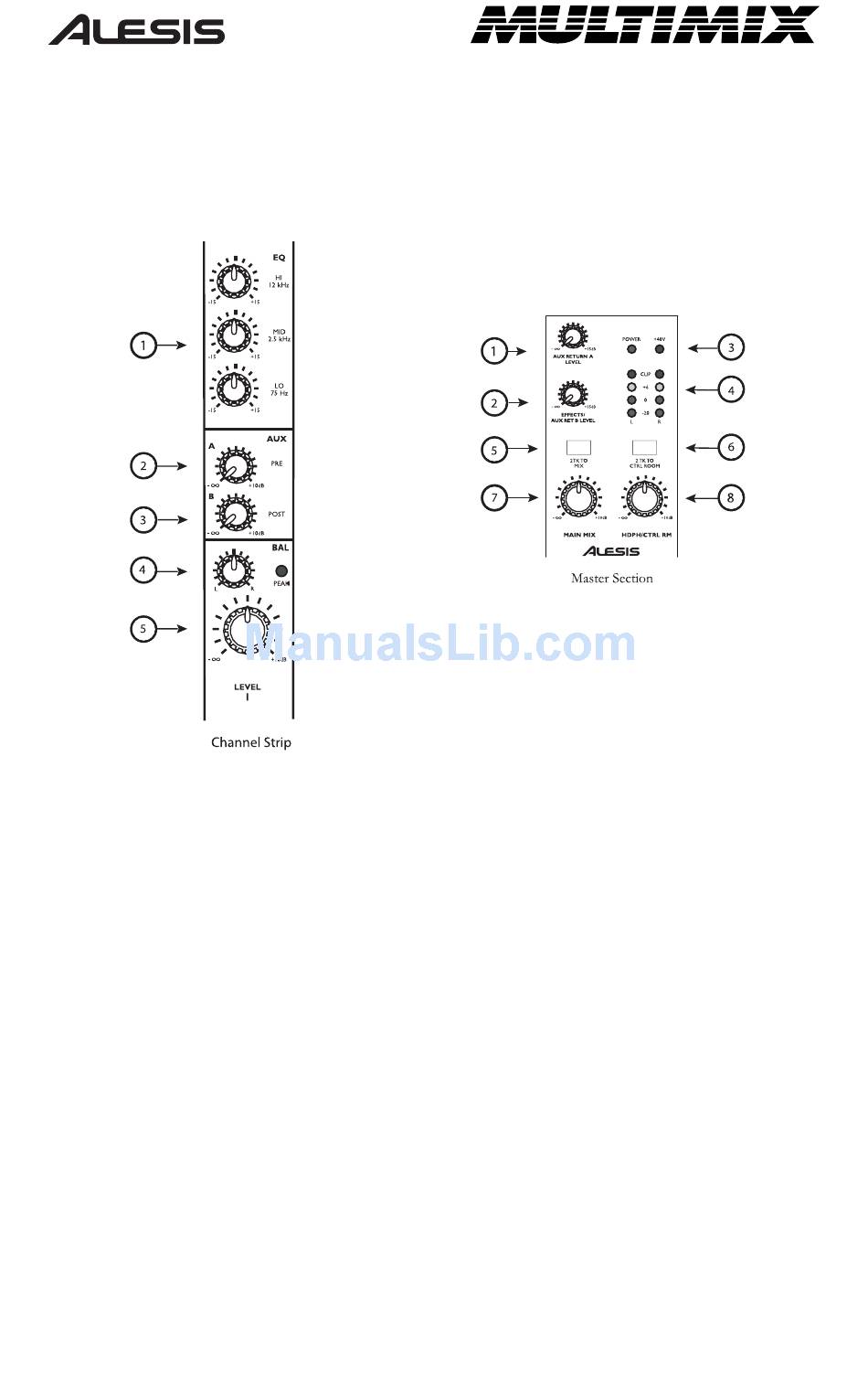

CHANNEL FEATURES

1. EQ: Boosts or cuts the respective frequencies for
each channel.
2. AUX A: Routes channel signal to an external device
like an effects processor.
3. AUX B: Controls level routed to internal effects
processor or – if a device is patched into the Aux B
returns – routes channel signal to an external device
like an effects processor.
4. PAN/BALANCE: Assigns the channel signal to
any spot in the mono or stereo spectrum.
5. CHANNEL FADER: Controls the signal level of
the MIC or LINE inputs.
MASTER FEATURES
Note: It is recommended that the MULTIMIX
be turned off before connecting and
disconnecting any sources to the inputs of
the unit.
1. AUX RETURN A: Controls the signal level that
returns from AUX A.
2. EFFECTS/AUX RET B: Controls the signal level
of the internal effects or the level returning from
AUX B if in use.
3. +48V LED: Indicates that the PHANTOM
POWER is enabled for the MIC inputs.
4. LED METERS: Monitors the audio signal level.
5. 2TK TO MIX: Routes the 2TK input to the MAIN
faders.
6. 2TK TO CTRL: Routes the 2TK input signal to the
HDPH /CTRL RM output.
7. MAIN MIX: Controls the level of the MAIN
OUTPUTS.
8. HDPH/CTRL RM: Controls the level that is sent to
the PHONES or CTRL RM outputs.
