Connections
Using the ModLink
The Phlngr can be connected to other effect boxes in the ModFX
family via the ModLink. The ModLink is a cable-free connection
between two ModFX units that transfers digital audio and word
clock. The 9-pin male connector on the left side of the unit is the
ModLink IN port. The 9-pin female connector on the right side is
the ModLink OUT port. By directly connecting two ModFX units
via the ModLink, audio will pass from the left-most unit to the
right-most unit.
Inputs
Master

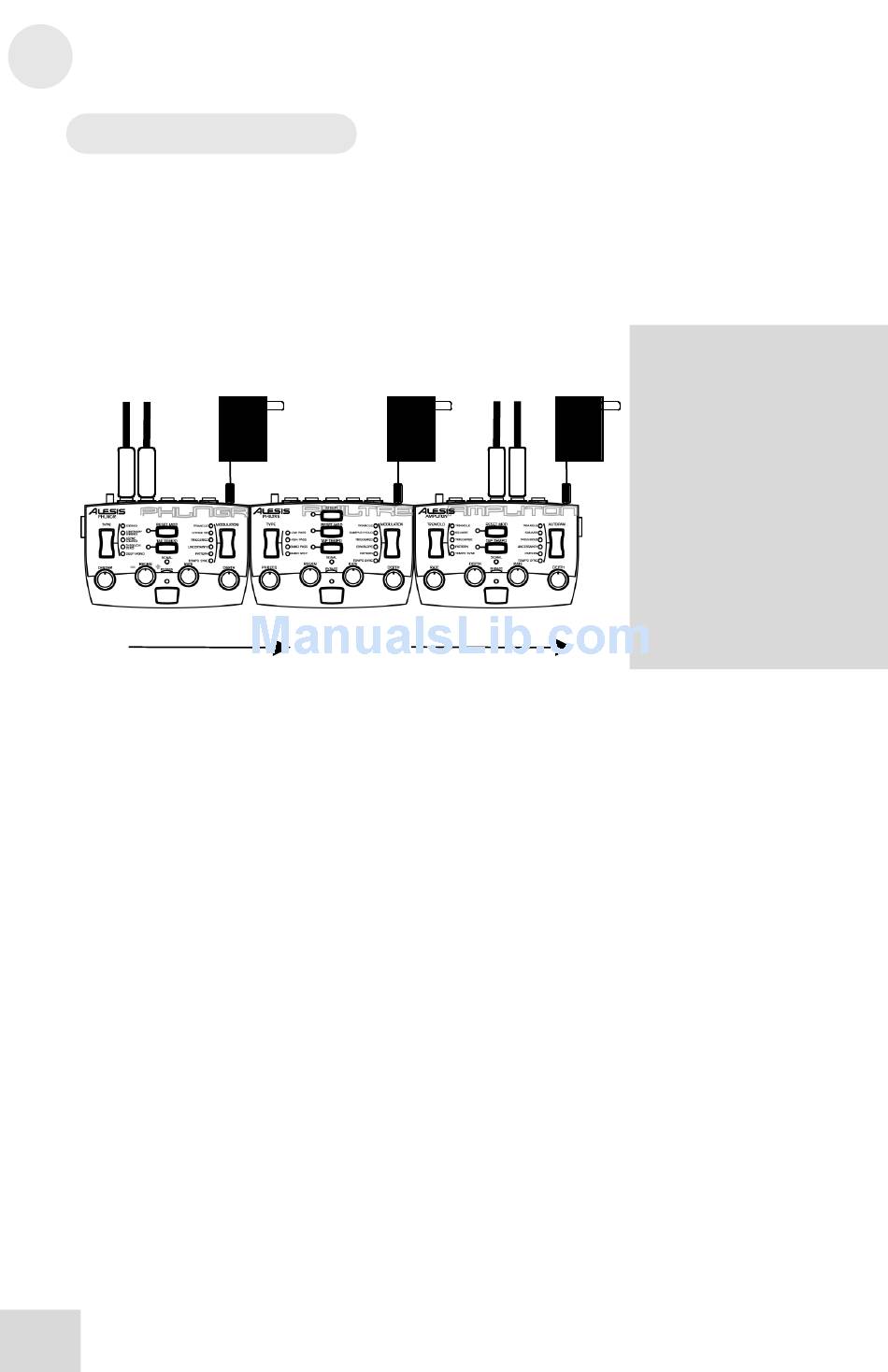

The audio signal flows from left to right. The Master will send its
digital audio output to the First Slave, and the First Slave will, in
turn, send its output to the Second Slave.
24
AC adapter
First Slave
Audio Flow
Outputs
Second Slave
What about the 1/4"
jacks on the slave
units?
Whe n a u nit is a sla ve to
a no th er un it, its a u dio inp ut
jac ks a r e dis ab le d; it will g et
its a ud io in p ut d ig ita lly fro m
its Mod Lin k p or t. The o u tp ut
jac ks , h owev e r, a re alwa y s
a ctiv e; so a n a ud io ou tp u t
c an b e tap pe d fro m a ny
lin ke d u nit, with ou t
inter ru p ting th e flo w to th e
r es t of th e c ha in .
