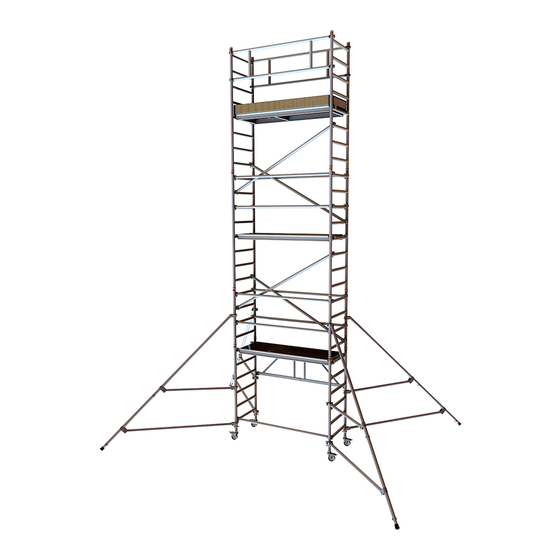

zarges PAXTower 3T 5535122 Instruction Manual

Aluminium towers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
en
Aluminium Towers
S-PLUS – Advanced Guardrail
3T – Through The Trapdoor
PaxTower_Zarges_User_Guide_EN.indd 1
PaxTower_Zarges_User_Guide_EN.indd 1
10/2020
P/N 122328-01
16.10.20 23:35
16.10.20 23:35

Advertisement

Table of Contents
loading

Related Manuals for zarges PAXTower 3T 5535122

Summary of Contents for zarges PAXTower 3T 5535122

  • Page 1 Aluminium Towers S-PLUS – Advanced Guardrail 3T – Through The Trapdoor 10/2020 P/N 122328-01 PaxTower_Zarges_User_Guide_EN.indd 1 PaxTower_Zarges_User_Guide_EN.indd 1 16.10.20 23:35 16.10.20 23:35...

  • Page 2: Table Of Contents

    Contents 1 Safety First..............3 1.1 Introduction ..............3 1.2 Compliances ..............3 1.3 Preparation and inspection ......... 3 2 Safe use ................4 2.1 Lifting of equipment ............. 4 2.2 Stabilisers..............4 2.3 Movement ..............4 2.4 During use ..............5 2.5 Maintenance - storage - transport ......

  • Page 3: Safety First

    Read this instruction manual carefully. Note that diagrams are for illustrative purposes only. Instruction manuals are also available to download from our website at zarges.com/uk. PAXTower mobile aluminium towers are light-weight scaffold towers used throughout the building and construction industry for both indoor and outdoor access solutions where a stable and secure platform is required.

  • Page 4: Safe Use

    2 Safe use • Check that all components are onsite, undamaged and that they are functioning correctly - (refer to Quantity Schedules, page 12). Damaged or incorrect components should not be used. • Check if the ground on which the mobile access tower is to be erected and moved is capable of supporting the tower.

  • Page 5: During Use

    • No person or materials should be on the tower during movement. • Caution should be exercised when wheeling a tower over rough, uneven or sloping ground, taking care to unlock and lock castors. If stabilisers are fitted, they should only be lift- ed a maximum of 25 mm above the ground to clear ground obstructions.

  • Page 6: Maintenance - Storage - Transport

    • Do not use boxes or stepladders or other objects on the platform to gain extra height. • After assembly the tower should be regularly inspected by a competent person to ensure that no environmental changes have occurred that may affect safe use. 2.5 Maintenance - storage - transport •...

  • Page 7: Assembly Overview

    3 Assembly overview PAXTower Base Unit , 0.6 m PH (Art.-No.. 5535212) PAXTower S-PLUS, 1.6 m PH (Art.-No.. 5535222) PAXTower S-PLUS, 3.6 m PH (Art.-No.. 5535242) PaxTower_Zarges_User_Guide_EN.indd 7 PaxTower_Zarges_User_Guide_EN.indd 7 16.10.20 23:35 16.10.20 23:35...
  • Page 8 PAXTower S-PLUS, 5.6 m PH (Art.-No.. 5535262) PAXTower 3T, 1.6 m PH (Art.-No.. 5535122) PAXTower S-PLUS / 3T Instruction Manual PaxTower_Zarges_User_Guide_EN.indd 8 PaxTower_Zarges_User_Guide_EN.indd 8 16.10.20 23:35 16.10.20 23:35...
  • Page 9 PAXTower 3T, 3.6 m PH (Art.-No.. 5535142) PAXTower 3T, 5.6 m PH (Art.-No.. 5535162) PaxTower_Zarges_User_Guide_EN.indd 9 PaxTower_Zarges_User_Guide_EN.indd 9 16.10.20 23:35 16.10.20 23:35...

  • Page 10: Technical Data

    4 Technical Data PAXTower Base Unit, 0.6 m PH Art.-No. 5535102 Weight 28.31 kg Working height 2.6 m Scaffold height 1.6 m Platform height 0.6 m PAXTower EN1004 Base Tower, 0.6 m PH Art.-No. 5535212 Weight 58.07 kg Working height 2.6 m Scaffold height 1.6 m Platform height...
  • Page 11 PAXTower S-PLUS, 5.6 m PH Art.-No. 5535262 Weight 159.15 kg Working height 7.6 m Scaffold height 6.6 m Platform height 5.6 m PAXTower 3T, 1.6 m PH Art.-No. 5535122 Weight 70.4 kg Working height 3.6 m Scaffold height 2.6 m Platform height 1.6 m PAXTower 3T, 3.6 m PH...

  • Page 12: Quantity Schedule

    5 Quantity Schedule 5.1 PAXTower S-PLUS List of scaffold units with packages 5535212 5535222 5535242 5535262 Product Product 0.6 m PH 1.6 m PH 3.6 m PH 5.6 m PH code description 2.6 m WH 3.6 m WH 5.6 m WH 7.6 m WH 5535102 Base Pack 5535502...
  • Page 13 List of packages with individual parts 42780 Folding Frame 42784 Platform 42781 4 Rung Frame 42782 8 Rung Frame 42788 Horizontal Brace 42787 Diagonal brace 42783 S-PLUS 42789 Base stabiliser Stabiliser 42793 Extensions 42795 End Toeboard 42786 Side Toeboard 42794 Adjustable Leg PaxTower_Zarges_User_Guide_EN.indd 13 PaxTower_Zarges_User_Guide_EN.indd 13...

  • Page 14: Paxtower 3T

    5.2 PAXTower 3T List of scaffold units with packages 5535212 5535122 5535142 5535162 Product Product description 0.6 m PH 1.6 m PH 3.6 m PH 5.6 m PH code 2.6 m WH 3.6 m WH 5.6 m WH 7.6 m WH 5535102 Base Pack 5535502...

  • Page 15: Assembly Procedure

    6 Assembly Procedure 6.1 Assembling the base unit, 0.6 m PH 1. Move the base unit into the required position. 2. Push out the central folding frames until the locking hinge snaps into position and the lock is engaged. 3. Apply the brakes on all castors. Ensure the castors are facing outwards from the base unit and apply the brakes on all castors.
  • Page 16 Check that the ground is flat, and all four castors are touch- ing the ground. Use a spirit level to check the base is level within 1°. If the tower is not level within 1°, adjustable legs must be used (see page 27). 5.

  • Page 17: Assembling The S-Plus Mobile Towers 1.6 M, 3.6 M, And 5.6 M Ph

    9. From a seated position fit one horizontal brace on the lo- wer guardrail. 10. Fit the remaining side toeboard. The tower is now complete at 0.6 m platform height. 6.2 Assembling the S-PLUS mobile towers 1.6 m, 3.6 m, and 5.6 m PH 1.
  • Page 18 6. Fit an advanced guardrail at the top rung, on the opposite side of the folding frame and lock in position. For further guidance on fitting S-PLUS, see zarges.com/uk. PAXTower S-PLUS / 3T Instruction Manual PaxTower_Zarges_User_Guide_EN.indd 18...
  • Page 19 7. Attach one stabiliser to each corner of the tower ensuring all four stabilisers touch the ground. For the position of the stabilisers, see page 30. If building to 5.6 m PH the stabiliser extensions must be used. For guidance on how to fit, see page 28. 8.
  • Page 20 11. Fit an advanced guardrail at the top rung of the 8 rung frame, on the folding frame side and lock in position. For further guidance on fitting S-PLUS, see zarges.com/uk. 12. Fit an advanced guardrail at the top rung of the 8 rung frame, on the opposite side of the folding frame and lock in position.
  • Page 21 14. Insert both end toeboards so that the guide pins of the platform engage in the grooves of the end toeboards. 15. Slide the side toeboards in on both sides. The tower is now complete. PaxTower_Zarges_User_Guide_EN.indd 21 PaxTower_Zarges_User_Guide_EN.indd 21 16.10.20 23:35 16.10.20 23:35...

  • Page 22: Assembling The 3T Mobile Towers 1.6 M, 3.6 M And 5.6 M Ph

    6.3 Assembling the 3T mobile towers 1.6 m, 3.6 m and 5.6 m PH 1. Assemble the base unit (see page 15). 2. Fit the horizontal brace on the bottom rung as shown. 3. Remove the frame end caps. Check that the ground is flat, and all four castors are touch- ing the ground.
  • Page 23 5. Fit the platform on to the 6 rung of the base unit. Ensure the windlocks are engaged. 6. Attach one stabiliser to each corner of the tower ensuring all four stabilisers touch the ground. For the position of the stabilisers, see page 30.
  • Page 24 The following procedure must be followed when fitting a guardrail (“Through the Trapdoor”): Sit on the platform and insert the railing braces. Place your feet on the platform and stand up. 7. Fit two lower level guardrails on to 8 rungs using the 3T method.
  • Page 25 11. Fit the platform to 14 rung, ensure the windlocks are en- gaged. 12. Fit two lower level guardrails as shown using the 3T me- thod. 13. Fit two top level guardrails as shown using the using the 3T method. The tower now has a platform height of 3.6 m.

  • Page 26: Notes On Dismantling

    7 Notes on dismantling General notes To dismantle the assembled tower unit, follow the steps for assembly in reverse order. No part of the tower unit (braces, platforms etc.) may be removed before the levels above it have been completely dis- mantled.

  • Page 27: Additional Fitting

    8 Additional fitting 8.1 Fitting adjustable legs to swivel castors On uneven surfaces, the base unit must be equipped with ad- justable legs to ensure the stability of the tower unit. Only use the adjustable legs to level out uneven surfaces. 1.

  • Page 28: Fitting Stabiliser Extensions

    7. Push the adjustable leg with swivel castors into the tube of the base unit as far as the stop. 8.2 Fitting stabiliser extensions 1. Remove the end tube from the base stabiliser. 2. Insert the stabiliser extension into the base stabiliser and lock.
  • Page 29 4. Attach one stabiliser to each corner of the tower ensuring all four stabilisers touch the ground. For the position of the stabilisers, see page 30. PaxTower_Zarges_User_Guide_EN.indd 29 PaxTower_Zarges_User_Guide_EN.indd 29 16.10.20 23:36 16.10.20 23:36...

  • Page 30: Dimensions

    9 Dimensions 1800 Castor (w/ adapter), min. Castor (w/ adapter), max Tower PH 0.6, 1.6, 3.6 m 3993 2873 Tower PH 5.6 m 5107 3987 PAXTower S-PLUS / 3T Instruction Manual PaxTower_Zarges_User_Guide_EN.indd 30 PaxTower_Zarges_User_Guide_EN.indd 30 16.10.20 23:36 16.10.20 23:36...

  • Page 31: Identification

    10 Identification Brand Safety pictograms Tower designation Manufacturer and manufacturer's address EN1004 3 6/6 XXCD H2 PaxTower_Zarges_User_Guide_EN.indd 31 PaxTower_Zarges_User_Guide_EN.indd 31 16.10.20 23:36 16.10.20 23:36...

  • Page 32: Structural Safety

    11 Structural safety Cleaning The tower unit can be cleaned using water with a little house- hold cleaning agent added. Paint spots can be removed using turpentine. Cleaning agents must not be allowed to seep into the soil. • Dispose of used cleaning fluids in accordance with the ap- plicable environmental regulations.
  • Page 33 • In the case of swivel castors with adjustable legs, also check that the adjustable legs move easily. • Check the drop-out protection (wing bolt, securing plug) on the chassis beams and base frame. Interlock clips • Check for warping, crushing, cracks and correct seating. PaxTower_Zarges_User_Guide_EN.indd 33 PaxTower_Zarges_User_Guide_EN.indd 33 16.10.20 23:36...
  • Page 34 PAXTower S-PLUS / 3T Instruction Manual PaxTower_Zarges_User_Guide_EN.indd 34 PaxTower_Zarges_User_Guide_EN.indd 34 16.10.20 23:36 16.10.20 23:36...
  • Page 35 PaxTower_Zarges_User_Guide_EN.indd 35 PaxTower_Zarges_User_Guide_EN.indd 35 16.10.20 23:36 16.10.20 23:36...
  • Page 36 Unit 8 Holdom Avenue, Saxon Park Industrial Estate Bletchley, Milton Keynes MK1 1QU Milton Keynes MK1 1QU Phone:+44 1908 641118 Fax:+44 1908 648176 sales@zarges.co.uk http://www.zarges.com/uk EN 1298 - IM - EN Members of: ©2020 Zarges (UK) Ltd. 10/2020 PaxTower_Zarges_User_Guide_EN.indd 36 PaxTower_Zarges_User_Guide_EN.indd 36 16.10.20 23:36 16.10.20 23:36...

This manual is also suitable for:

Paxtower 3t 5535212Paxtower s-plus 5535222Paxtower s-plus 5535242Paxtower s-plus 5535262Paxtower 3t 5535142Paxtower 3t 5535162 ... Show all
