zarges Z200 Assembly And Usage Instructions

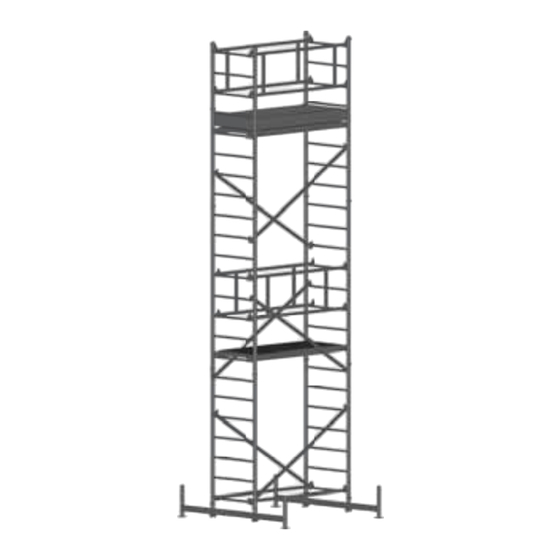

Mobile scaffold towers
Hide thumbs Also See for Z200:
Table of Contents

Advertisement

Quick Links

Z200-300-AA-RC4_EN.indd 1
Z200-300-AA-RC4_EN.indd 1
Assembly
and usage instructions
Z200 / Z300
mobile scaffold towers
28.02.2008 10:20:43
28.02.2008 10:20:43

Advertisement

Table of Contents
loading

Related Manuals for zarges Z200

Summary of Contents for zarges Z200

  • Page 1 Assembly and usage instructions Z200 / Z300 mobile scaffold towers Z200-300-AA-RC4_EN.indd 1 Z200-300-AA-RC4_EN.indd 1 28.02.2008 10:20:43 28.02.2008 10:20:43...

  • Page 3: Table Of Contents

    Operating and assembly instructions Z200 / Z300 Table of contents 1. General information 1.1. Introduction 1.2. Manufacturer 1.3. Construction type approval 1.4. Warranty 1.5. Date of issue 1.6. Industrial property and trademark rights 1.7. Proper usage 1.8. Improper usage 2. Design 2.1.

  • Page 4: General Information

    Operating and assembly instructions Z200 / Z300 1. General information 1.1. Introduction The present operating and assembly instructions are only valid for the scaffolds described in these operating and assembly instructions. The instructions provided in these operating and assembly instructions for safety as well as the rules and regulations for the handling of scaffolds are in the area of application of the scaffolds mentioned in this documentation.

  • Page 5: Date Of Issue

    Operating and assembly instructions Z200 / Z300 1.5. Date of issue The date of issue of these German-language operating and assembly instructions is 1 October 2006. 1.6. Industrial property and trademark rights • The trademark right for these operating and assembly instructions remains with the manufacturer.

  • Page 6: Design

    Operating and assembly instructions Z200 / Z300 2. Design 2.1. Safety provisions For the stability, installation and usage of the scaffolds mentioned above, the regulations of EN 1004 "Mobile access and working towers" apply. The scaffolds may only be assembled and used by people who are familiar with these operating and assembly instructions.
  • Page 7 Operating and assembly instructions Z200 / Z300 13. For wall-side assembly of the scaffold, wall spacers can also be used for ballasting (accessory, order no. 44461). 14. The permissible load capacity of the scaffold with evenly-distributed load is 2.0 kN/ m²...

  • Page 8: Behaviour For Work On Electrical Systems With The Scaffold

    210 kg Load of the platform (maximum) 210 kg Maximum platform height 6.60 m Z200 mobile scaffold tower 0.7 m × 1.5 m Approved according to EN 1004 Scaffold group 3 Permissible load according to scaffold group 3 200 kg/m²...

  • Page 9: General Assembly Specifi Cations

    Operating and assembly instructions Z200 / Z300 2.5. General design specifi ca- Fig. 1. Fig. 2. tions Preparatory work assembly 2. Assembly of slip-in frame Fig. 3. Fig. 4. on chassis beams 3. Assembly of swivel castors, Fig. 5. Fig. 6.
  • Page 10 (cf. section 2.1 no. 7). 0.5m After the scaffold is complete, all assembly aids (scaffold planks, etc.) must be removed. 8.1 Assembly of railings Z200 Fig. 15. Fig. 16. For Fig. 15: Railings intermediate platform For Fig.
  • Page 11 Operating and assembly instructions Z200 / Z300 11. Aligning the scaffold After the scaffold has been as- sembled, it must be aligned us- ing a spirit level. If the scaffold should be moved to its usage location only after assembly, its alignment must absolutely be checked again on location.

  • Page 12: Basic Measurements

    Operating and assembly instructions Z200 / Z300 2.6. Basic measurements Module / dimensions [mm] Z200 0.7 m × 1.5 m 1500 1500 1500 A+B+C 1500 1500 A+B+C+D 1500 1500 3000 2800 1500 1500 1500 K+B+C 1500 1500 K+B+C+D 1500 1500...

  • Page 13: Identifi Cation

    Operating and assembly instructions Z200 / Z300 2.7. Identifi cation Type plate Item no. Load max. Max. platform height EAN code Z200 / Z300 Z200-300-AA-RC4_EN.indd 13 Z200-300-AA-RC4_EN.indd 13 28.02.2008 10:20:59 28.02.2008 10:20:59...

  • Page 14: Parts List Incl. Ballasting (See Also 5.2)

    Is replaced with 2 horizontal braces. Length of the chassis beams for the Z300: 1.65 m of galvanised steel; for the Z200: 1.50 m of aluminium. In the case of side erection, sometimes more ballast weights are located on the side facing away from the wall.

  • Page 15: Position Of The Individual Parts

    Operating and assembly instructions Z200 / Z300 2.9. Position of the individual parts Railings Slip-in frame 1.00 m Crosswise toe board Lengthwise toe board Folding unit Slip-in frame 2.00 m Platform with access way Diagonal brace Stabilisers Horizontal brace Chassis beams Z200 / Z300 Z200-300-AA-RC4_EN.indd 15...

  • Page 16: Assembly Drawings

    Operating and assembly instructions Z200 / Z300 2.10. Assembly drawings Z200 Mobile scaffold tower, 0.7 m × 1.5 m Scaffold comb. Scaffold comb. Module Module Working height Working height approx. 2.90 m approx. 4.85 m Scaffold height Scaffold height 1.75 m 3.95 m...
  • Page 17 Operating and assembly instructions Z200 / Z300 Z200 Folding scaffold, 0.7 × 1.5 Scaffold comb. Scaffold comb. Module Module Working height Working height approx. 2.70 m approx. 4.60 m Scaffold height Scaffold height 1.50 m 3.70 m Platform Platform height height 0.70 m...
  • Page 18 Operating and assembly instructions Z200 / Z300 Z300 Mobile scaffold tower, 0.7 × 2.0 Scaffold comb. Platform height Scaffold comb. Platform height Scaffold comb. Platform height Module Module Module 0.90 m 2.85 m 4.85m A+B+C Working height Weight Working height...
  • Page 19 Operating and assembly instructions Z200 / Z300 Z300 Folding scaffold, 0.7 × 2.0 Scaffold comb. Platform height Scaffold comb. Platform height Scaffold comb. Platform height Module Module Module 0.70 m 2.60 m 4.60 m A+B+C Working height Weight Working height...

  • Page 20: Note About Disassembly Of The Scaffold

    Operating and assembly instructions Z200 / Z300 3. Note about disassembly of the scaffold Disassembly of the erected scaffold occurs in the reverse order of assembly. Here it must be noted that the platforms or scaffold planks necessary for the assembly personnel must be laid out in advance as places to stand and thereby laid out completely.

  • Page 21: Stability Specifi Cations

    Operating and assembly instructions Z200 / Z300 5. Stability specifi cations 5.1. General information Chassis beams and stabilisers are responsible for the stability of the scaffold. However, these must also be ballasted according to the area of deployment (indoors / outdoors). For the correct ballasting, please see the parts lists (packet 2.8).

  • Page 22: Inspections Of The Scaffold Components

    Operating and assembly instructions Z200 / Z300 5.4. Inspections of the scaffold components If a defect is discovered, the affected part may not be used any longer. Slip-in frame / chassis beams • Check for deformation, crushing and crack formation.

  • Page 23: Spare Parts

    Operating and assembly instructions Z200 / Z300 6. Spare parts Basic frame 1.75 m 44400 Folding unit 1.5 m 44468 2.0 m 44404 Slip-in frame 1.0 m 44407 2.0 m 44405 Railings Z300 2.0 m 44413 Platform with fl ap 1.5 m...
  • Page 24 Operating and assembly instructions Z200 / Z300 Crosswise board 0.70 m 44445 Lengthwise board 1.5 m 44440 2.0 m 44441 Diagonal brace 1.5 m 44420 2.0 m 44421 Horizontal brace 1.5 m 44410 2.0 m 44411 Chassis beams 1.50 m (alu) 44450 1.65 m (steel)
  • Page 25 Operating and assembly instructions Z200 / Z300 Stabilisers 2.2 m 44455 Base plates 0.30 m 44459 Z200 / Z300 Z200-300-AA-RC4_EN.indd 25 Z200-300-AA-RC4_EN.indd 25 28.02.2008 10:21:53 28.02.2008 10:21:53...

  • Page 26: Accessories

    Operating and assembly instructions Z200 / Z300 7. Accessories Ballast weight (disk) 10.0 kg 44460 Slip-in pipe of alu 0.6 m 44449 Wall anchor 1.0 m 44461 Swivel castors 150 mm No. pieces 44454 VE (4 pcs.) 44444 Swivel castors 125 mm No.
  • Page 27 Operating and assembly instructions Z200 / Z300 Entry arm (steel) 0.3 m 44456 Z200 / Z300 Z200-300-AA-RC4_EN.indd 27 Z200-300-AA-RC4_EN.indd 27 28.02.2008 10:21:54 28.02.2008 10:21:54...

  • Page 28: Notes

    Operating and assembly instructions Z200 / Z300 NOTES Z200-300-AA-RC4_EN.indd 28 Z200-300-AA-RC4_EN.indd 28 28.02.2008 10:21:54 28.02.2008 10:21:54...
  • Page 29 Operating and assembly instructions Z200 / Z300 NOTES Z200 / Z300 Z200-300-AA-RC4_EN.indd 29 Z200-300-AA-RC4_EN.indd 29 28.02.2008 10:21:55 28.02.2008 10:21:55...
  • Page 30 Operating and assembly instructions Z200 / Z300 NOTES Z200-300-AA-RC4_EN.indd 30 Z200-300-AA-RC4_EN.indd 30 28.02.2008 10:21:55 28.02.2008 10:21:55...
  • Page 31 Operating and assembly instructions Z200 / Z300 NOTES Z200 / Z300 Z200-300-AA-RC4_EN.indd 31 Z200-300-AA-RC4_EN.indd 31 28.02.2008 10:21:55 28.02.2008 10:21:55...
  • Page 32 Operating and assembly instructions Z200 / Z300 NOTES Z200-300-AA-RC4_EN.indd 32 Z200-300-AA-RC4_EN.indd 32 28.02.2008 10:21:55 28.02.2008 10:21:55...
  • Page 33 Operating and assembly instructions Z200 / Z300 NOTES Z200 / Z300 Z200-300-AA-RC4_EN.indd 33 Z200-300-AA-RC4_EN.indd 33 28.02.2008 10:21:56 28.02.2008 10:21:56...
  • Page 34 Operating and assembly instructions Z200 / Z300 NOTES Z200-300-AA-RC4_EN.indd 34 Z200-300-AA-RC4_EN.indd 34 28.02.2008 10:21:56 28.02.2008 10:21:56...
  • Page 35 Z200-300-AA-RC4_EN.indd 35 Z200-300-AA-RC4_EN.indd 35 28.02.2008 10:21:56 28.02.2008 10:21:56...
  • Page 36 291291 EN 540291291000 Z200-300-AA-RC4_EN.indd 36 Z200-300-AA-RC4_EN.indd 36 28.02.2008 10:21:56 28.02.2008 10:21:56...
