Linear Technology DC2024A Demo Manual

Description
Demonstration circuit 2024A features the
current Hot Swap controller. The LTC4282 is well suited
to high power applications because the precise monitor-
ing capability and accurate current limiting reduces the
extremes in which both loads and power supplies must
safely operate. Non-volatile configuration allows for flex-
ibility in the autonomous generation of alerts and response
to faults. The LTC4282 provides a rich set of features to
support Hot Swap applications including:
12-/16-Bit ADC Monitors Current, Voltage, Power and
n
Energy
Controls Two Sets of Parallel MOSFETs for High Current
n
Applications
2
I C/SMBus Interface
n
Variable
Power
Supply
Arrow.com.
Downloaded from
High Current Hot Swap Controller
with I
LTC 4282 high
®
A
V

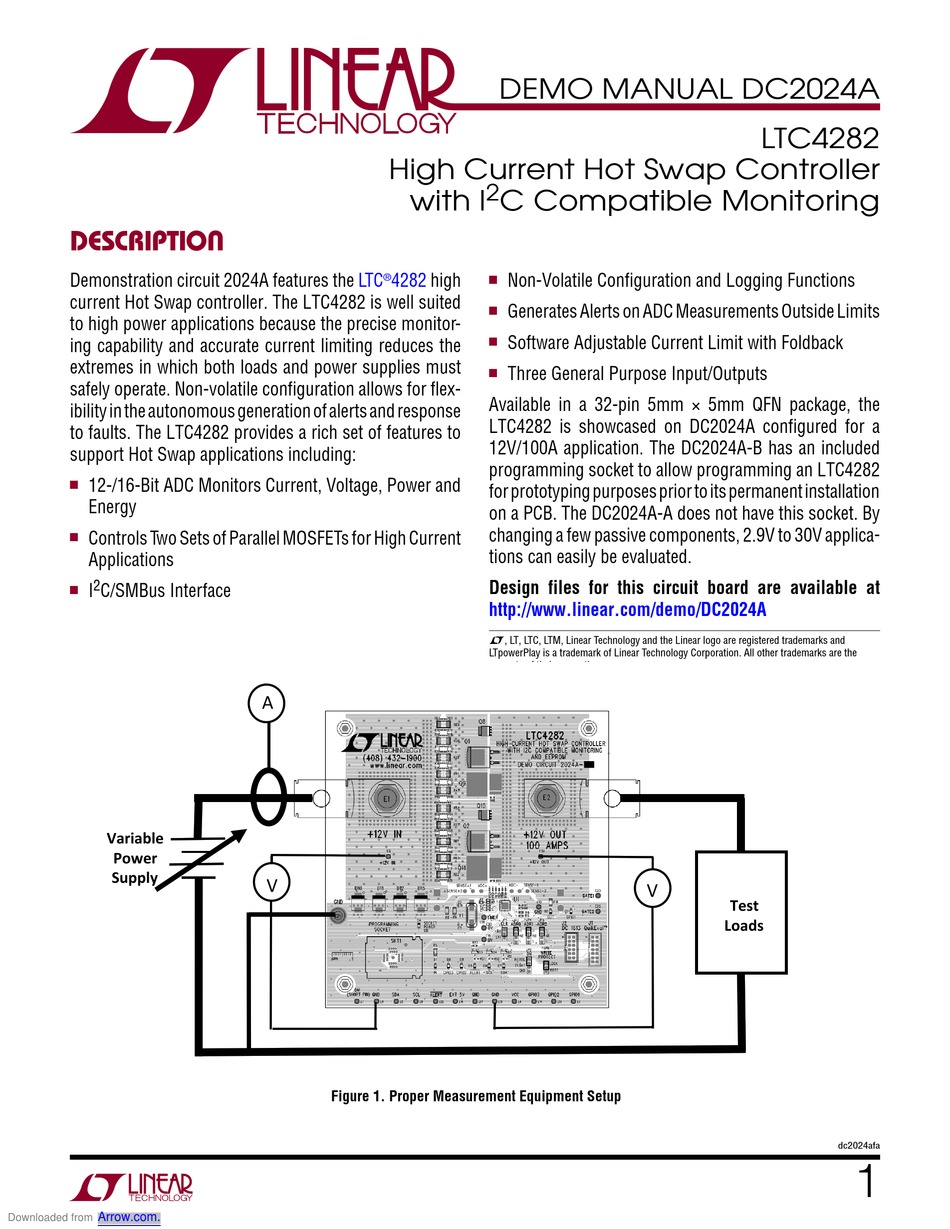

Figure 1. Proper Measurement Equipment Setup
DEMO MANUAL DC2024A
2
C Compatible Monitoring
Non-Volatile Configuration and Logging Functions
n
Generates Alerts on ADC Measurements Outside Limits
n
Software Adjustable Current Limit with Foldback
n
Three General Purpose Input/Outputs
n
Available in a 32-pin 5mm × 5mm QFN package, the
LTC4282 is showcased on DC2024A configured for a
12V/100A application. The DC2024A-B has an included
programming socket to allow programming an LTC4282
for prototyping purposes prior to its permanent installation
on a PCB. The DC2024A-A does not have this socket. By
changing a few passive components, 2.9V to 30V applica-
tions can easily be evaluated.
Design files for this circuit board are available at
http://www.linear.com/demo/DC2024A
