Linear Technology DC2026A Demo Manual

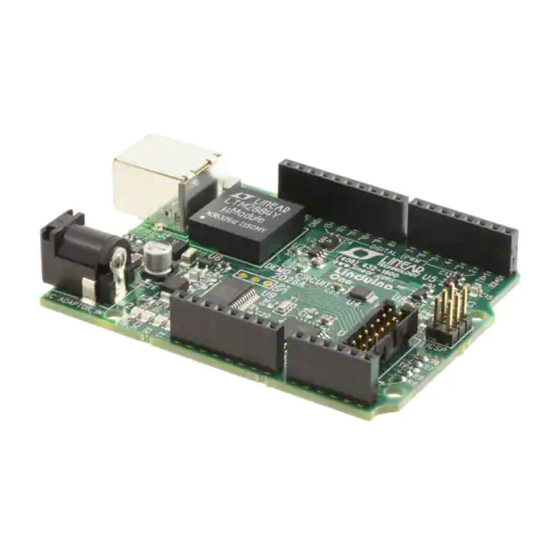

Linduino one isolated arduino-compatible demonstration board
Hide thumbs

Advertisement

Quick Links

Download this manual
Description
Linear Technology's DC2026 (called the Linduino One) is
compatible with the Arduino Uno microcontroller board.
Arduino hardware consists of an Atmel microcontroller
with a bootloader allowing quick in-circuit firmware up-
dates. The software is a simple programming environment
based on the AVRGCC compiler. This platform is popular
because it is easy to use, both the hardware and software
are open source, and it can be programmed in C. We find
it an ideal way to demonstrate and distribute libraries for
integrated circuits that have digital interfaces such as
2
Inter-Integrated Circuit (I
(SPI). While the Linduino One is Arduino-compatible, it
is not produced by the official Arduino team, and they do
not receive any monetary support from this board. Please,
consider supporting them by purchasing other items from:
http://store.arduino.cc
USB TO
COUMPUTER
7V TO 20V
AUXILIARY
POWER
+
–
C) and Serial Peripheral Interface

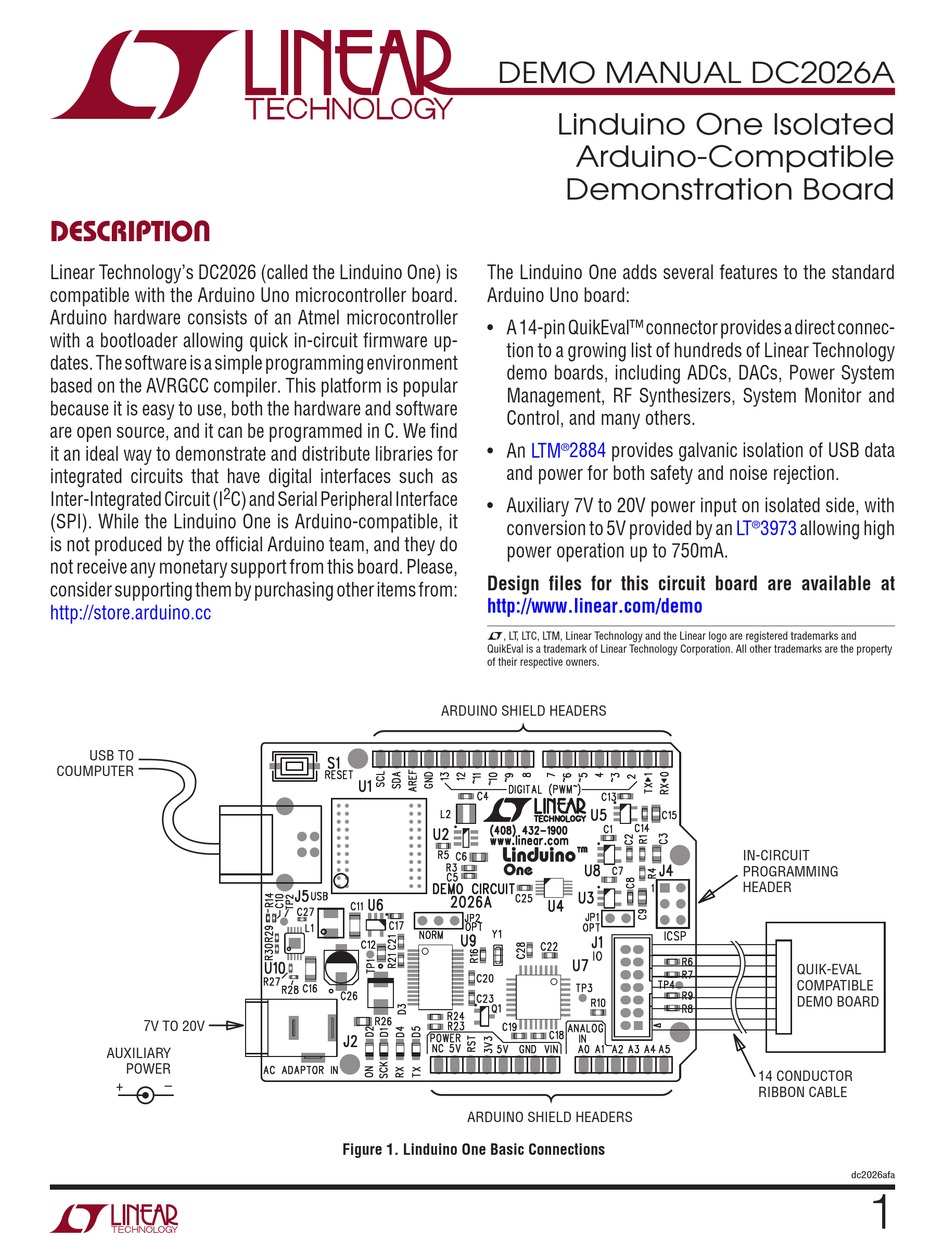

Figure 1. Linduino One Basic Connections
DEMO MANUAL DC2026A
Linduino One Isolated
Arduino-Compatible
Demonstration Board
The Linduino One adds several features to the standard
Arduino Uno board:
• A 14-pin QuikEval™ connector provides a direct connec-
tion to a growing list of hundreds of Linear Technology
demo boards, including ADCs, DACs, Power System
Management, RF Synthesizers, System Monitor and
Control, and many others.
• An
LTM
2884
provides galvanic isolation of USB data
®
and power for both safety and noise rejection.
• Auxiliary 7V to 20V power input on isolated side, with
conversion to 5V provided by an
power operation up to 750mA.
Design files for this circuit board are available at
http://www.linear.com/demo
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and
QuikEval is a trademark of Linear Technology Corporation. All other trademarks are the property
of their respective owners.
ARDUINO SHIELD HEADERS
ARDUINO SHIELD HEADERS
LT
3973
allowing high
®
IN-CIRCUIT
PROGRAMMING
HEADER
QUIK-EVAL
COMPATIBLE
DEMO BOARD
14 CONDUCTOR
RIBBON CABLE
dc2026afa
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DC2026A and is the answer not in the manual?

Questions and answers

Related Manuals for Linear Technology DC2026A

Summary of Contents for Linear Technology DC2026A

  • Page 1 L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and QuikEval is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners.
  • Page 2 DEMO MANUAL DC2026A Quick start GuiDe The Linduino One comes preloaded with a DC590 emula- Software Installation tor program (called a “sketch”) that allows attached demo 1) Download LTSketchbook.zip from http://www.linear. boards to run with the standard QuikEval GUI software.
  • Page 3 DEMO MANUAL DC2026A Quick start GuiDe Arduino IDE Setup 1) From within the Arduino IDE, click on File → Preferences Under Sketchbook Location: select Browse, and locate the path to the extracted LTSketchbook.zip file. The correct location will show “LTSketchbook” in the Look In menu, and at least four subdirectories will be shown: Documenta- tion, Libraries, Part Number and Utilities (more may be added in the future).
  • Page 4 DEMO MANUAL DC2026A Quick start GuiDe 2) Under Tools menu, select Board → Arduino Uno 3) Under the Tools menu, select Serial Port. There may be more than one option; the Linduino One is usually the highest COM port number (COM12 is shown below).
  • Page 5 DEMO MANUAL DC2026A Quick start GuiDe 4) Click on the Serial Monitor, which looks like a magnifying glass: This will bring up the monitor window: Select Newline terminator and set the baud rate to 115200. You should see a “hello” message – this indicates that serial communication is set up properly, and that the DC590 emulator firmware is properly installed.
  • Page 6 Connect the DC934 to the Linduino One with the supplied 14-pin ribbon cable. Run QuikEval. The control panel for Linear Technology demo boards with the 14-pin QuikEval the LTC2607 will appear, and clicking COLLECT will start connector are normally used in conjunction with a DC590B communication with the board.
  • Page 7 DEMO MANUAL DC2026A Quick start GuiDe Running with the Linduino Demonstration Program After the DC934 has been run with the user-friendly QuikEval GUI, a demonstration program can be loaded into the Linduino One that demonstrates the library functions for the LTC2607 and LTC2422.
  • Page 8 DEMO MANUAL DC2026A Quick start GuiDe A new window will appear with the sketch. 2) Upload the sketch by clicking the UPLOAD button: When this process is completed, a message at the bottom should display a similar message as shown.
  • Page 9 DEMO MANUAL DC2026A Quick start GuiDe 3) Open the Serial Monitor (magnifying glass icon) once more. The monitor will now display the program interface. To use the program, enter commands into the text box, then click the Send button. dc2026afa...
  • Page 10 DEMO MANUAL DC2026A Quick start GuiDe Going Further Jumpers After completing the procedure in this Quick Start Guide, JP1: Factory use only. all of the tools are in place to move on to other products JP2: Reset configuration, not installed. When the ICSP or further experimentation with the DC934.

  • Page 11: Block Diagram

    DEMO MANUAL DC2026A Block DiaGram dc2026afa...

  • Page 12: Parts List

    DEMO MANUAL DC2026A parts list ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER C1, C7 CAP., X5R, 4.7µF, 16V 10% 0603 TDK, C1608X5R1C475K C2, C8, C14 CAP., X7R, 0.01µF, 16V 10% 0603 AVX, 0603YC103KAT2A C3, C9, C12, C15 CAP., X5R, 10µF, 16V 10% 0805...
  • Page 13 DEMO MANUAL DC2026A parts list ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER RES., CHIP, 0.20Ω, 1/4W, 5% 0805 PANASONIC, ERJ-S6SJR20V RES., CHIP, 107k, 1/16W, 1% 0402 VISHAY, CRCW0402107KFKED RES., CHIP, 475k, 1/16W, 1% 0402 VISHAY, CRCW0402475KFKED RES., CHIP, 215k, 1/16W, 1% 0402 VISHAY, CRCW0402215KFKED RES., CHIP, 316k, 1/16W, 1% 0402...

  • Page 14: Schematic Diagram

    DEMO MANUAL DC2026A schematic DiaGram dc2026afa...
  • Page 15 Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa- tion that the interconnection of its circuits as described herein will not infringe on existing patent rights.
  • Page 16 Linear Technology Corporation (LTC) provides the enclosed product(s) under the following AS IS conditions: This demonstration board (DEMO BOARD) kit being sold or provided by Linear Technology is intended for use for ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY and is not provided by LTC for commercial use. As such, the DEMO BOARD herein may not be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including but not limited to product safety measures typically found in finished commercial goods.
