DESCRIPTION
Demonstration circuit 2007A-C features a PolyPhase
design using the LTM
®
high density, dual 18A, switch mode step-down power
µModule regulator. The input voltage is from 4.5V to
®
15V. The output voltage is jumper selectable from 0.9V to
1.8V. The DC2007A-C can deliver a nominal 140A output
current. As explained in the data sheet, output current
derating is necessary for certain V
conditions. The LTM4630 on the DC2007A-C always
operates in continuous conduction mode. The switching
frequency can be programmed through a resistor or can
be synchronized to an external clock signal. The board
allows the user to program how its output voltage ramps
4630EV, the high efficiency,
, V , and thermal
IN OUT

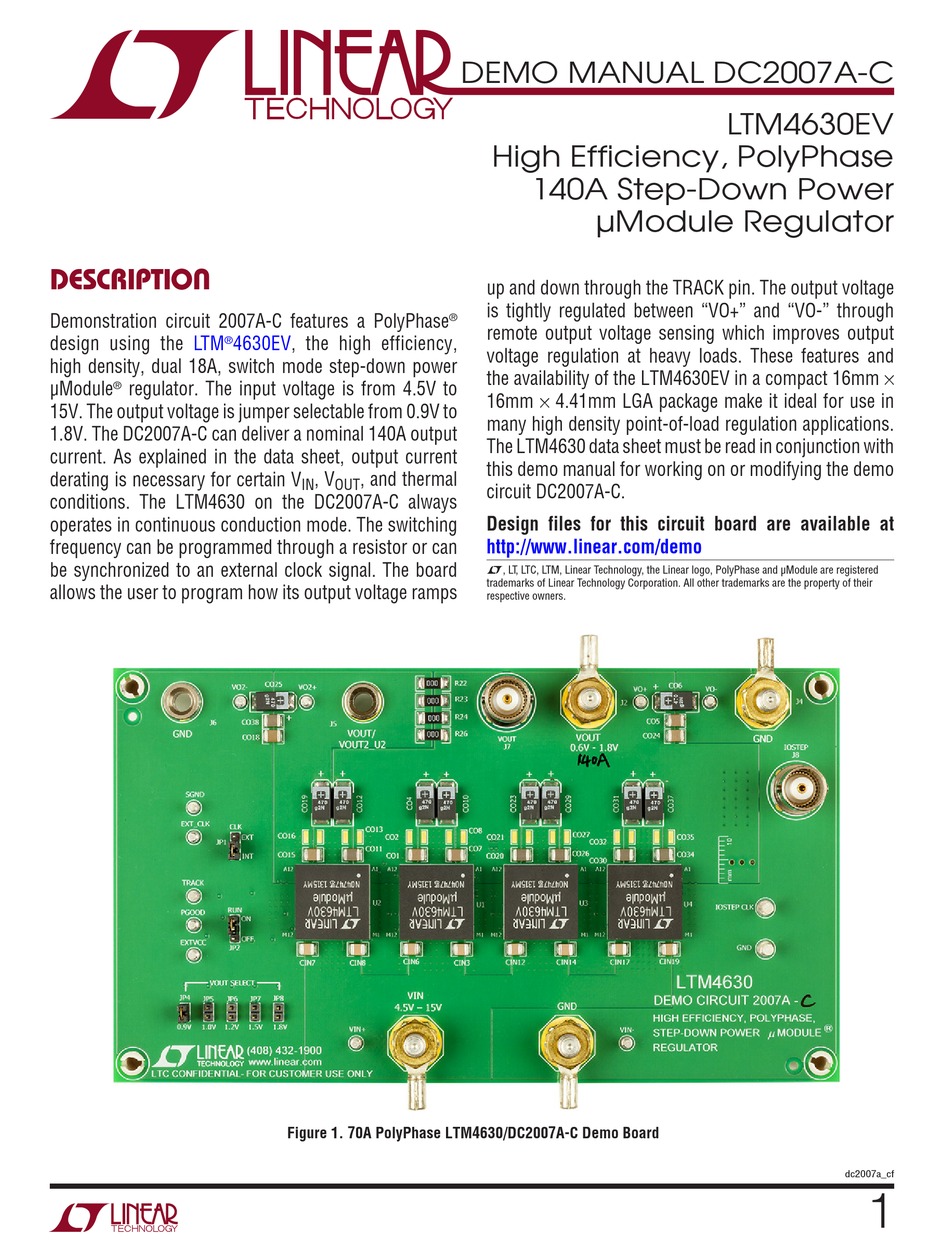

Figure 1. 70A PolyPhase LTM4630/DC2007A-C Demo Board
DEMO MANUAL DC2007A-C
High Efficiency, PolyPhase
140A Step-Down Power
µModule Regulator
up and down through the TRACK pin. The output voltage
is tightly regulated between "VO+" and "VO-" through
®
remote output voltage sensing which improves output
voltage regulation at heavy loads. These features and
the availability of the LTM4630EV in a compact 16mm ×
16mm × 4.41mm LGA package make it ideal for use in
many high density point-of-load regulation applications.
The LTM4630 data sheet must be read in conjunction with
this demo manual for working on or modifying the demo
circuit DC2007A-C.
Design files for this circuit board are available at
http://www.linear.com/demo
