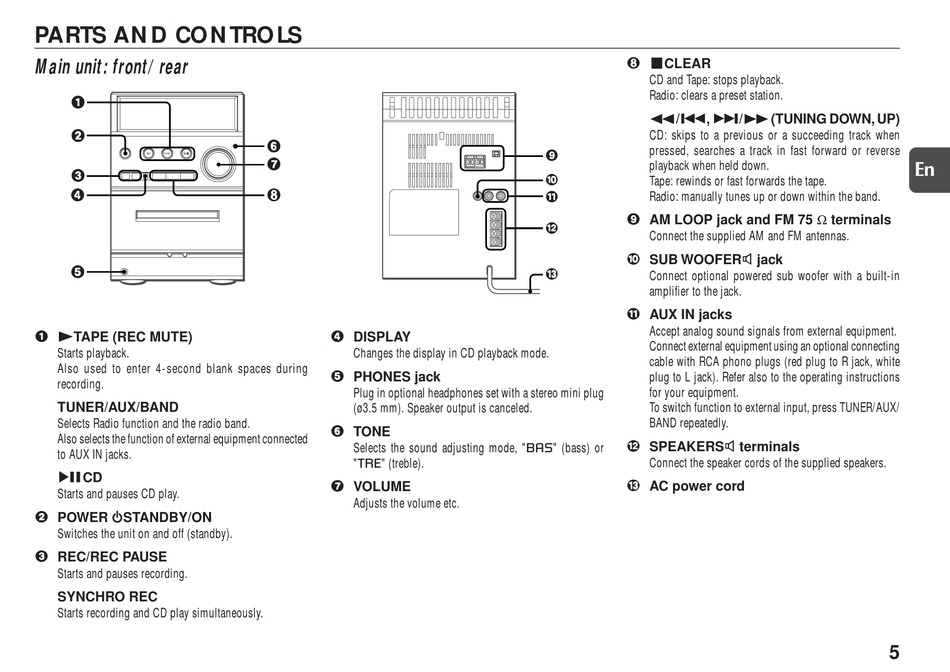

PARTS AND CONTROLS

Main unit: front/rear
1
2
3
4
5
1 cTAPE (REC MUTE)
Starts playback.
Also used to enter 4-second blank spaces during
recording.
TUNER/AUX/BAND
Selects Radio function and the radio band.
Also selects the function of external equipment connected
to AUX IN jacks.
ECD
Starts and pauses CD play.
2 POWER 6STANDBY/ON
Switches the unit on and off (standby).
3 REC/REC PAUSE
Starts and pauses recording.
SYNCHRO REC
Starts recording and CD play simultaneously.
6
7
8
4 DISPLAY
Changes the display in CD playback mode.
5 PHONES jack
Plug in optional headphones set with a stereo mini plug
(ø3.5 mm). Speaker output is canceled.
6 TONE
Selects the sound adjusting mode, "BAS" (bass) or
"TRE" (treble).
7 VOLUME
Adjusts the volume etc.
8 sCLEAR
CD and Tape: stops playback.
Radio: clears a preset station.
f/r, t/g (TUNING DOWN, UP)
CD: skips to a previous or a succeeding track when
pressed, searches a track in fast forward or reverse
9
playback when held down.
0
Tape: rewinds or fast forwards the tape.
!
Radio: manually tunes up or down within the band.
9 AM LOOP jack and FM 75
@
Connect the supplied AM and FM antennas.
0 SUB WOOFER3 jack
#
Connect optional powered sub woofer with a built-in
amplifier to the jack.
! AUX IN jacks
Accept analog sound signals from external equipment.
Connect external equipment using an optional connecting
cable with RCA phono plugs (red plug to R jack, white
plug to L jack). Refer also to the operating instructions
for your equipment.
To switch function to external input, press TUNER/AUX/
BAND repeatedly.
@ SPEAKERS3 terminals
Connect the speaker cords of the supplied speakers.
# AC power cord
En
terminals
5
