4-253-637-11(4)

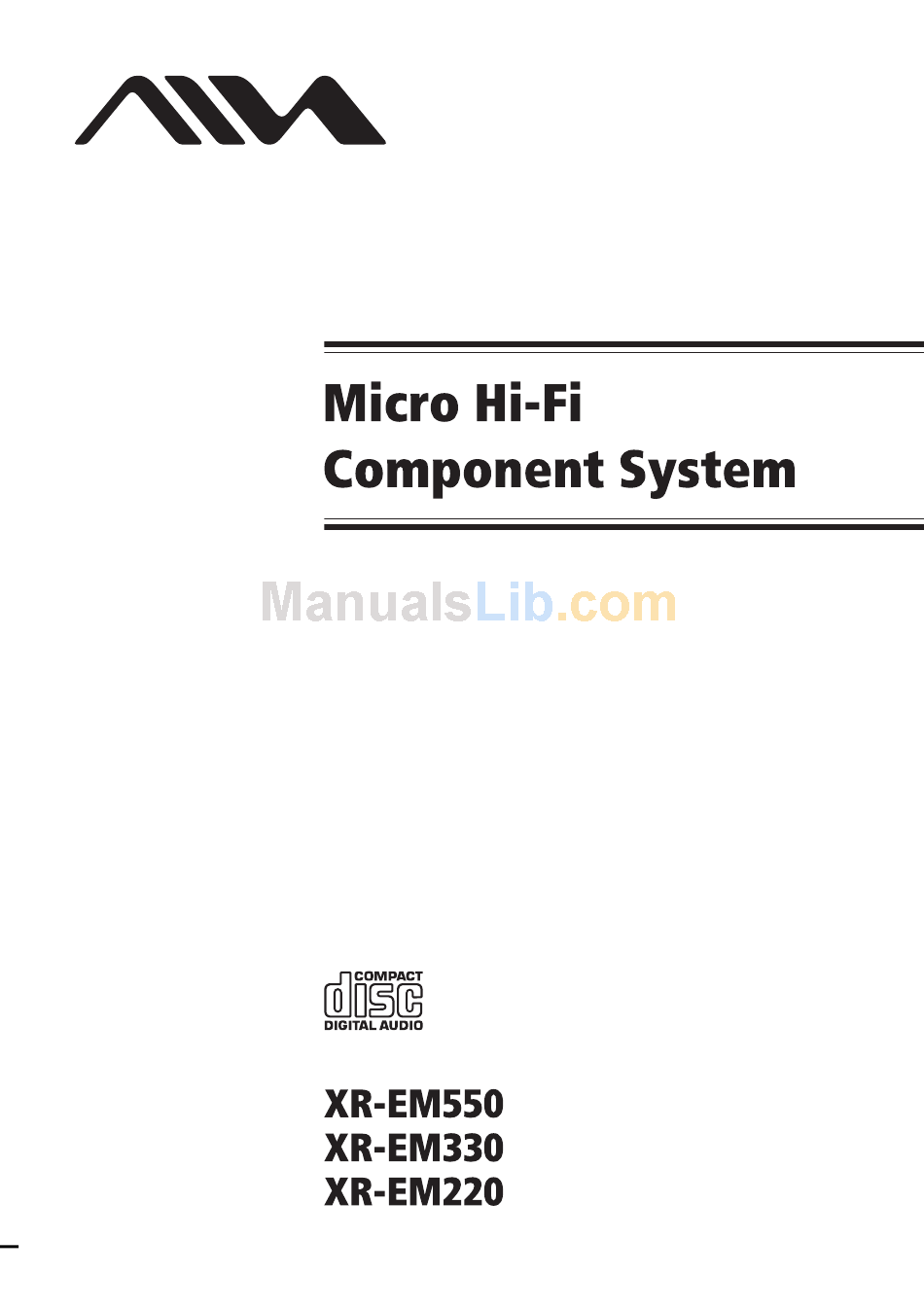

Operating Instructions
Owner's Record
The model and serial numbers are located on the rear of the unit. Record the
serial number in the space provided below. Refer to them whenever you call
upon your Aiwa dealer regarding this product.
Model No. ______________
Serial No. ______________
©2004 Sony Corporation
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aiwa XR-EM220
Summary of Contents for Aiwa XR-EM220
-
Page 1: Operating Instructions
The model and serial numbers are located on the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Aiwa dealer regarding this product. Model No. ______________ Serial No. ______________... - Page 2 WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent fire, do not cover the ventilation of the apparatus with news papers, table-cloths, curtains, etc. And don’t place lighted candles on the apparatus. To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.
-
Page 3: Table Of Contents
Table of Contents How to use this manual... 4 Playable discs... 4 Getting Started Hooking up the system... 6 Setting the clock... 8 CD/MP3 – Play Loading a disc ... 9 Playing a disc ... 9 — Normal Play/Shuffle Play Playing repeatedly... -
Page 4: How To Use This Manual
How to use this manual • The instructions in this manual are for model XR-EM550, XR-EM330 and XR-EM220. Check your model number by looking at the front panel. In this manual, XR-EM550 is used for illustration purposes unless stated otherwise. Any difference in operation is clearly indicated in the text, for example, “XR-EM550 only”. - Page 5 Notes on CD-R and CD-RW • Some CD-Rs or CD-RWs cannot be played on this system depending upon the recording quality or physical condition of the disc, or the characteristics of the recording device. Furthermore, the disc will not play if it has not been correctly finalized.
-
Page 6: Getting Started
Getting Started Hooking up the system Perform the following procedures 1 to 4 to hook up your system using the supplied cords and accessories. Right speaker 1 Connect the speakers. Connect the right and left speaker cords to the SPEAKER terminals as shown below. Gray (3) Black (#) FM lead antenna... -
Page 7: Inserting Two R6 (Size Aa) Batteries Into The Remote
Plug type B AM loop antenna Extend the FM lead antenna horizontally Plug type C AM loop antenna Extend the FM lead antenna horizontally North American models: Connect using the white side Other models: Connect using the brown side Note To prevent noise pickup, keep the antennas away from the system and other components. -
Page 8: Setting The Clock
Setting the clock Use buttons on the remote for the operation. Press ?/1 to turn on the system. Press CLOCK/TIMER SET. Press ./> repeatedly to set the hour. Press ENTER. Press ./> repeatedly to set the minute. Press ENTER. The clock starts working. To adjust the clock Press CLOCK/TIMER SET. -
Page 9: Cd/Mp3 - Play
CD/MP3 – Play Loading a disc Press OPEN on the unit. Place a disc with the label side up on the CD compartment. Press OPEN on the unit again to close the lid of the CD compartment. Notes • Do not use a disc with tape, seals or paste on it as this may cause malfunction. -
Page 10: Other Operations
Other operations Do this Press x. Stop play Press X (or CD/NX on the unit). Pause Press again to resume play. Press ./> repeatedly. Select a track Select an album Press ALBUM +/– repeatedly of MP3* after step 2. Find a point in a Keep pressing m/M during track playback and release it at the... -
Page 11: Creating Your Own Program
Creating your own program — Program Play You can make a program of up to 25 steps. You can synchro record the programed tracks onto a cassette tape (page 16). MP3 audio tracks cannot be played on XR- EM220. Press CD to switch the function to CD. Press PLAY MODE in stop mode repeatedly until “PGM”... -
Page 12: Tuner
Tuner Presetting radio stations You can preset up to 20 FM stations and 10 AM stations. You can then tune in any of those stations simply by selecting the corresponding preset number. Automatic tuning preset You can automatically tune in all of the stations that can be received in your area and then store the radio frequency of the desired stations. -
Page 13: Listening To The Radio
To change the AM tuning interval (except for European model) The AM tuning interval is factory-preset to 9 kHz (or 10 kHz for some areas). To change the AM tuning interval, tune in any AM station first, then turn off the power by pressing ?/1. While holding TUNING +, press ?/1. -
Page 14: Using The Radio Data System (Rds)
Tips • To improve broadcast reception, adjust the supplied antennas, or connect a commercially available external antenna. • When an FM stereo program has static noise, press FM MODE until “MONO” appears. There will be no stereo effect, but the reception will improve. •... -
Page 15: Tape - Play
Tape – Play Loading a tape Press Z PUSH on the unit. Load a recorded/recordable tape into the cassette holder. With the side you want to play/record facing forward. Playing a tape You can use TYPE I (normal). For model XR-EM550 Press TAPE to switch the function to TAPE. -
Page 16: Tape - Recording
Tape – Recording Recording your favorite CD tracks on a tape — CD-TAPE Synchro Recording You can record a whole CD on a tape. You can use TYPE I (normal). Use buttons on the unit for the operation. For model XR-EM550 Load a recordable tape. -
Page 17: Recording On A Tape Manually
Recording on a tape manually — Manual Recording You can record just the portions you like from a CD on a tape. You can also record a radio program. Use buttons on the unit for the operation. For model XR-EM550 Load a recordable tape. -
Page 18: Sound Adjustment
Sound Adjustment Adjusting the sound You can adjust the bass and treble to enjoy more powerful sound. Generating a more dynamic sound Press i-Bass on the unit. To cancel the i-Bass, press i-Bass on the unit again. Adjusting the bass and treble You can adjust the bass and treble. -
Page 19: Waking Up To Music
Waking up to music — Play Timer You can wake up to music at a preset time. Make sure you have set the clock (see “Setting the clock” on page 8). Use buttons on the remote for the operation. Prepare the sound source you want to play. -
Page 20: Timer Recording Radio Programs
Timer recording radio programs — Rec Timer To timer record, you must first preset the radio station (see “Presetting radio stations” on page 12) and set the clock (see “Setting the clock” on page 8). Use buttons on the remote for the operation. For model XR-EM550 Tune in the preset radio station (see “Listening to a preset station”... -
Page 21: Viewing Information About The Disc In The Display
Display Turning off the display — Power Saving Mode The clock display can be turned off to minimize the amount of power consumed during standby (Power Saving Mode). Press DISPLAY repeatedly while the system is off until the clock display disappears. -
Page 22: Optional Components
Optional Components Hooking up optional components To enhance your system, you can connect optional components. Refer to the operating instructions provided with each component. A MD jacks Use audio cords (not supplied) to connect an optional analog component (MD deck, etc.) to these jacks. -
Page 23: Troubleshooting
Find your problem in the troubleshooting checklist below and take the indicated corrective action. If the problem persists after doing all of the above, consult your nearest AIWA dealer. When the ?/1 indicator flashes Immediately unplug the power cord and check the following items. -
Page 24: Tape Deck
• Keep the antennas away from the system and other components. • Consult your nearest AIWA dealer if the supplied AM antenna has come off the plastic stand. • Try turning off surrounding electrical equipment. A stereo FM program cannot be received in stereo. -
Page 25: Messages
• Refer to the operating instructions supplied with the connected component and start playing. • Press FUNCTION repeatedly until “MD” appears (page 22). The sound is distorted. • Set the volume of the connected component lower. If the system still does not operate properly after performing the above measures, reset the system as follows:... - Page 26 Other INVALID You pressed an invalid button.
-
Page 27: Additional Information
• When you move the system, take out any disc. If you have any questions or problems concerning your system, please consult your nearest AIWA dealer. Notes on discs • Before playing, clean the disc with a cleaning cloth. -
Page 28: Specifications
Specifications Main unit Amplifier section XR-EM220 DIN power output (rated): 8 + 8 W (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference): 10 + 10 W (6 ohms at 1 kHz, 10%... - Page 29 PHONES: Accepts headphones with an impedance of 8 ohms or more SPEAKER: Accepts impedance of 6 to 16 ohms. CD player section XR-EM220 Laser Semiconductor laser ( =780 nm) Emission duration: continuous Frequency response 20 Hz – 20 kHz XR-EM330...
- Page 30 Speaker XR-EM220 Speaker system Speaker units Woofer: Nominal impedance Dimensions (w/h/d) Mass XR-EM330 Speaker system Speaker units Woofer: Nominal impedance Dimensions (w/h/d) Mass XR-EM550 Speaker system Speaker units Woofer: Tweeter: Nominal impedance Dimensions (w/h/d) Mass General Power requirements European model:...
-
Page 31: List Of Button Locations And Reference Pages
8 (15, 16, 17) DIRECTION DISPLAY w; (14, 21) Display window 2 i-Bass 6 (18) OPEN (CD open/close) 4 (10) 1) XR-EM220/XR-EM330 only. 2) XR-EM550 only. 3) XR-EM550/XR-EM330 only. 4) XR-EM220 only. Name of button/part P – Z PHONES jack qf... -
Page 32: Remote Control
DISPLAY ql (14, 21) ENTER 9 (8, 11, 12, 19, 20) EQ qs (18) FM MODE 4 (13, 24) FUNCTION 6 (22, 24) XR-EM220 * Button does not function with this model. Sony Corporation Printed in China P – Z...
