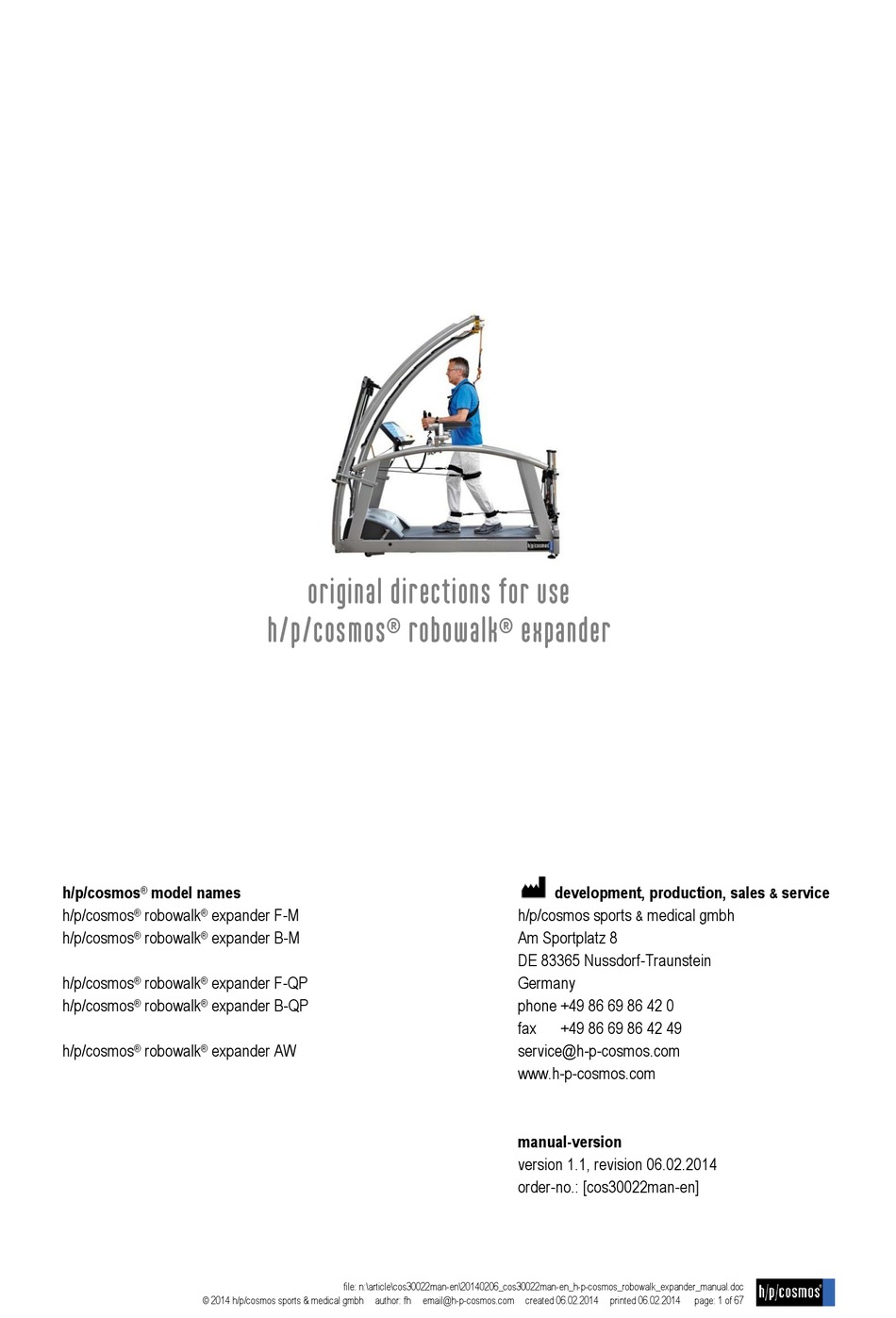

h/p/cosmos
model names
®
h/p/cosmos
robowalk
expander F-M
®
®
h/p/cosmos
robowalk
expander B-M
®
®
h/p/cosmos
robowalk
expander F-QP
®
®
h/p/cosmos
robowalk
expander B-QP
®
®
h/p/cosmos
robowalk
expander AW
®
®
© 2014 h/p/cosmos sports & medical gmbh
original directions for use
h/p/cosmos
robowalk
®
file: n:\article\cos30022man-en\20140206_cos30022man-en_h-p-cosmos_robowalk_expander_manual.doc
author: fh
email@h-p-cosmos.com
expander
®
development, production, sales
h/p/cosmos sports
medical gmbh
&
Am Sportplatz 8
DE 83365 Nussdorf-Traunstein
Germany
phone +49 86 69 86 42 0
fax
+49 86 69 86 42 49
service@h-p-cosmos.com
www.h-p-cosmos.com
manual-version
version 1.1, revision 06.02.2014
order-no.: [cos30022man-en]
created 06.02.2014
printed 06.02.2014
service
&
page: 1 of 67
