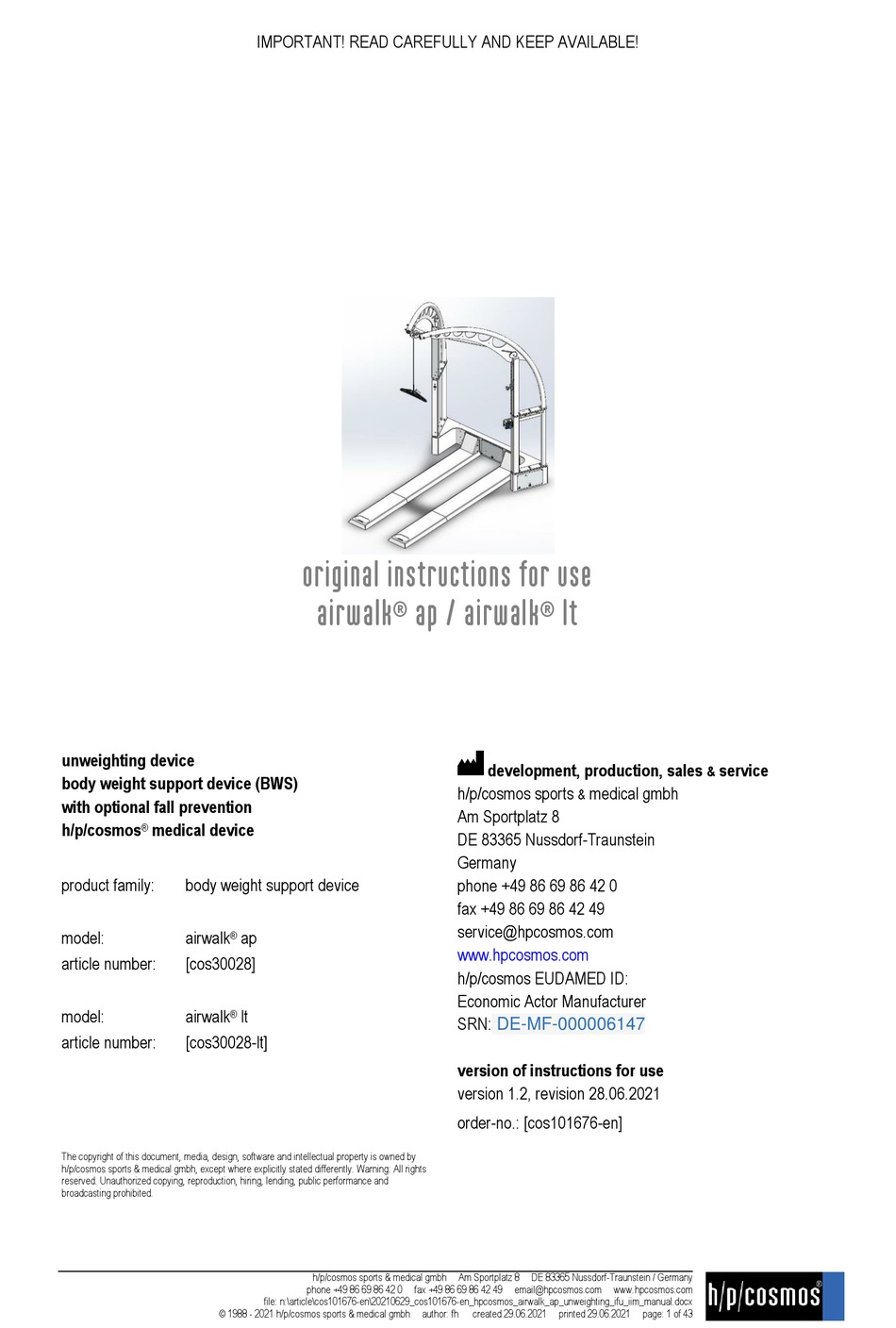

unweighting device
body weight support device (BWS)
with optional fall prevention
h/p/cosmos
medical device
®
product family:
body weight support device
model:
airwalk
®
article number:
[cos30028]
model:
airwalk
®
article number:
[cos30028-lt]
The copyright of this document, media, design, software and intellectual property is owned by
h/p/cosmos sports & medical gmbh, except where explicitly stated differently. Warning: All rights
reserved. Unauthorized copying, reproduction, hiring, lending, public performance and
broadcasting prohibited.
© 1988 - 2021 h/p/cosmos sports & medical gmbh
IMPORTANT! READ CAREFULLY AND KEEP AVAILABLE!
original instructions for use
airwalk
®
ap
lt
h/p/cosmos sports & medical gmbh
phone +49 86 69 86 42 0
file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx
ap / airwalk
lt
®
development, production, sales
h/p/cosmos sports
&
Am Sportplatz 8
DE 83365 Nussdorf-Traunstein
Germany
phone +49 86 69 86 42 0
fax +49 86 69 86 42 49
service@hpcosmos.com
www.hpcosmos.com
h/p/cosmos EUDAMED ID:
Economic Actor Manufacturer
SRN:
DE-MF-000006147
version of instructions for use
version 1.2, revision 28.06.2021
order-no.: [cos101676-en]
Am Sportplatz 8
DE 83365 Nussdorf-Traunstein / Germany
fax +49 86 69 86 42 49
email@hpcosmos.com
author: fh
created 29.06.2021
printed 29.06.2021
service
&
medical gmbh
www.hpcosmos.com
page: 1 of 43

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the airwalk ap and is the answer not in the manual?

Questions and answers

Summary of Contents for h/p/cosmos airwalk ap

  • Page 1 [cos101676-en] The copyright of this document, media, design, software and intellectual property is owned by h/p/cosmos sports & medical gmbh, except where explicitly stated differently. Warning: All rights reserved. Unauthorized copying, reproduction, hiring, lending, public performance and broadcasting prohibited.
  • Page 2 In this case, always consider the last version of these instructions for use as well as the instructions for use of the retrofitted accessories (e.g unweighting vests, shorts and harnesses) and/or combined products, such as for example an h/p/cosmos treadmill.
  • Page 3 Our declared goal is the improvement of health and performance of your patients and customers.

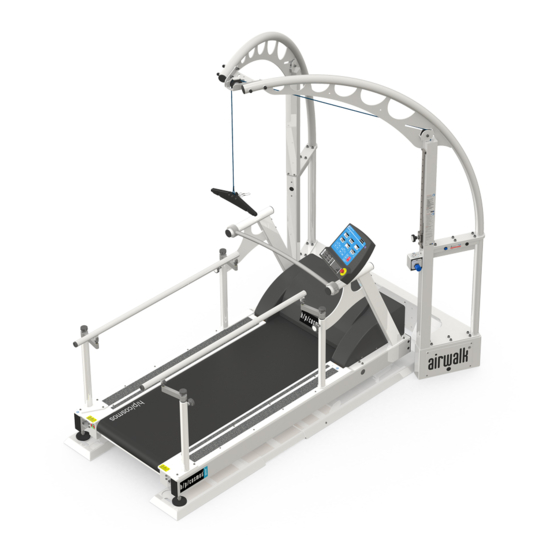

  • Page 4 [cos30028] stand alone device with external air compressor airwalk ap [cos30028] in combination with an h/p/cosmos treadmill and robowalk expander airwalk lt [cos30028-lt] floor mounted pillar with possible installation example via ceiling mounted pulleys file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com...
  • Page 5: Table Of Contents

    DE 83365 Nussdorf-Traunstein / Germany phone +49 86 69 86 42 0 fax +49 86 69 86 42 49 email@hpcosmos.com www.hpcosmos.com file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh author: fh created 29.06.2021 printed 29.06.2021 page: 5 of 43...
  • Page 6: Symbols Used

    DE 83365 Nussdorf-Traunstein / Germany phone +49 86 69 86 42 0 fax +49 86 69 86 42 49 email@hpcosmos.com www.hpcosmos.com file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh author: fh created 29.06.2021 printed 29.06.2021 page: 6 of 43...
  • Page 7: Description

    (relief) with optional safety stop for fall prevention. The airwalk ap is made of powder coated steel. The component box is the connection between the rails and the two vertical adapters, which carry the two arches. The two arches carry the cable guide. Like a crane, the device is overlapping the treadmill in a height of approximately 2.75 m.
  • Page 8: Intended Use

    Cardiac arrhythmia pathology and/or limited hemodynamics Symptomatic massive aortic stenosis Uncompensated / uncontrolled heart insufficiency Acute pulmonary embolism or pulmonary infarction file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021...
  • Page 9 © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021...
  • Page 10: Residual Risk / Side Effects (Med)

    Under no circumstances should a subject/patient or other user be overloaded or overstressed. All prohibitions in the chapter “General safety requirements”. Other use than the explicitly mentioned intended use. file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021...
  • Page 11: General Safety Requirements

    Before deactivation of air cushion / fall stop mode, make sure the system is not under pressure. The intended location must provide a suitable potential equalization condition (e.g. PE-bolt). Rope has to be replaced by an authorized h/p/cosmos technician at least every 12 months or earlier in case of any visible or assumed damage.
  • Page 12: Emergency Dismount / Emergency Release

    Render first aid Danger! Connection to pressurized air supply has to be accessible for any user at any time! file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021...
  • Page 13: Application Body Weight Support

    (pull knob if it is locked). Decrease unweighting force Turn control knob counter-clockwise (pull knob if it is locked). file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021...
  • Page 14 Hand unit valve turned counter-clockwise activated completely! file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021 page: 14 of 43...
  • Page 15 Rope has to be replaced by an authorized h/p/cosmos technician at least every 12 months or earlier in case of any visible or assumed damage. file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021...
  • Page 16 For any application where falling might cause an unacceptable risk, the chest-belt safety harness cos14903-04-xx has to be applied additionally. file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021...
  • Page 17 Put on chest belt cos14903-04-xx Put on the chest belt so that the h/p/cosmos logo is at the front. In order to attach the carabiner, put the vertical belt (1) below the shoulder belts (2), facing the body, thereby unloading the seam at the joint (3).
  • Page 18 The less force needed to lift the subject, the less the vest rides up. file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021...
  • Page 19 After exercise, turn control knob counter-clockwise carefully to reduce unweighting completely. If possible, ask the subject to support the process. file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021...
  • Page 20 The device itself should be cleaned according to the regulations of your institution. h/p/cosmos recommends Bacillol AF, order number [cos12179-01]. file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021...
  • Page 21: Application Fall Prevention And Safety Stop (Optional)

    Attach one hook / carabiner to rope eye directly. Put on chest belt Put on the chest belt so that the h/p/cosmos logo is at the front. In order to attach the carabiner, put the vertical belt (1) below the shoulder belts (2), facing the body, thereby unloading the seam at the joint (3).
  • Page 22 The device itself should be cleaned according to the regulations of your institution. h/p/cosmos recommends Bacillol AF, order number [cos12179-01]. file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021...
  • Page 23: Trouble Shooting

    Pull stop does not work Check cabling Call technician Increased loss of pressure Call technician file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021 page: 23 of 43...
  • Page 24: Name Plate

    12.2. Measurements airwalk lt The measurements of airwalk lt depend on the room situation and the way of installation for the ceiling mount pulleys. file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021...
  • Page 25 Size M chest 85 … 115 cm chest belt cos14903-04-M (with option emergency stop) file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021 page: 25 of 43...
  • Page 26 12.9. Normative data Usage class Class S (prof./commercial) (acc. EN 20957) Class I (special needs) file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021 page: 26 of 43...
  • Page 27 MDR (EU) 2017/745 conformity EU directive 2006/42/EC Risk class Class I (acc. to MDR) file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021 page: 27 of 43...
  • Page 28: Spare Parts And Consumables

    4 years max. Rope 1 year 15. Disposal Upon request and at the expense of the client, h/p/cosmos might perform the disposal of old or defective devices. Please contact service@hpcosmos.com for a detailed offer. Our devices consist of powder-coated and galvanized metals from different producers and qualities, stainless steel parts, aluminum parts, plastics, rubber, electronics with cables, boards and condensers as well as batteries.
  • Page 29: Installation

    (as depicted). file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021 page: 29 of 43...
  • Page 30 Assemble arch, pulley and pulley cover plate as depicted (fit cover plate noses in corresponding notches). file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021 page: 30 of 43...
  • Page 31 Attach rails to the component box using 12x M12x30 cylinder head screws with washers. Use 85 Nm torque. file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021...
  • Page 32 (D) Connect potential equalization Perform function control according to „maintenance“ without illustration checklist. file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021 page: 32 of 43...
  • Page 33: Pneumatic Wiring

    The ports are marked on the control valve airwalk ap Festo (cos102340) with the respective number. file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021 page: 33 of 43...
  • Page 34 (cos103282). Connect the yellow cable to the 6mm connector of the tapered plug connector (cos103282). file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021 page: 34 of 43...
  • Page 35 Schematic representation with circuit diagram symbols. file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021 page: 35 of 43...
  • Page 36: Options

    2x lens head screw M4x25 - Fix cable and tube with 3x cable tie file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021 page: 36 of 43...
  • Page 37 Position of socket depends on device (UserTerminal or front of device below motor cover). file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021 page: 37 of 43...
  • Page 38 - mount connection flange to flange plate (use 8x M10x30) - mount robowalk horizontal bar to connection flange (B) file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021...
  • Page 39: Labelling

    “air cushion mode” To be placed 20mm right of the air cushion / fall stop valve. file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021...
  • Page 40 „label airwalk plotted“ to be placed on cover sheet of component adapter base plate, centered file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021 page: 40 of 43...
  • Page 41: Packing

    Packing on pallet: isometric view Packing on pallet: top view (fixation straps in red, dotted lines when covered by components) file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021...
  • Page 42: Maintenance

    Treadmill parts and accessories do not collide when inclined Hand unit: „0 kg“ mark coincides with „1 bar“ mark on manometer file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021...
  • Page 43: Contact

    (0.14€/min from German landlines, max. 0.42€ from German mobile networks) +49 18 05 16 76 69 email email@hpcosmos.com www.hpcosmos.com file: n:\article\cos101676-en\20210629_cos101676-en_hpcosmos_airwalk_ap_unweighting_ifu_iim_manual.docx © 1988 - 2021 h/p/cosmos sports & medical gmbh phone +49 86 69 86 42 0 email@hpcosmos.com created 29.06.2021 printed 29.06.2021 page: 43 of 43...
