Application Guidelines
Passive system

Compressor mounting

Oil equalization
connection

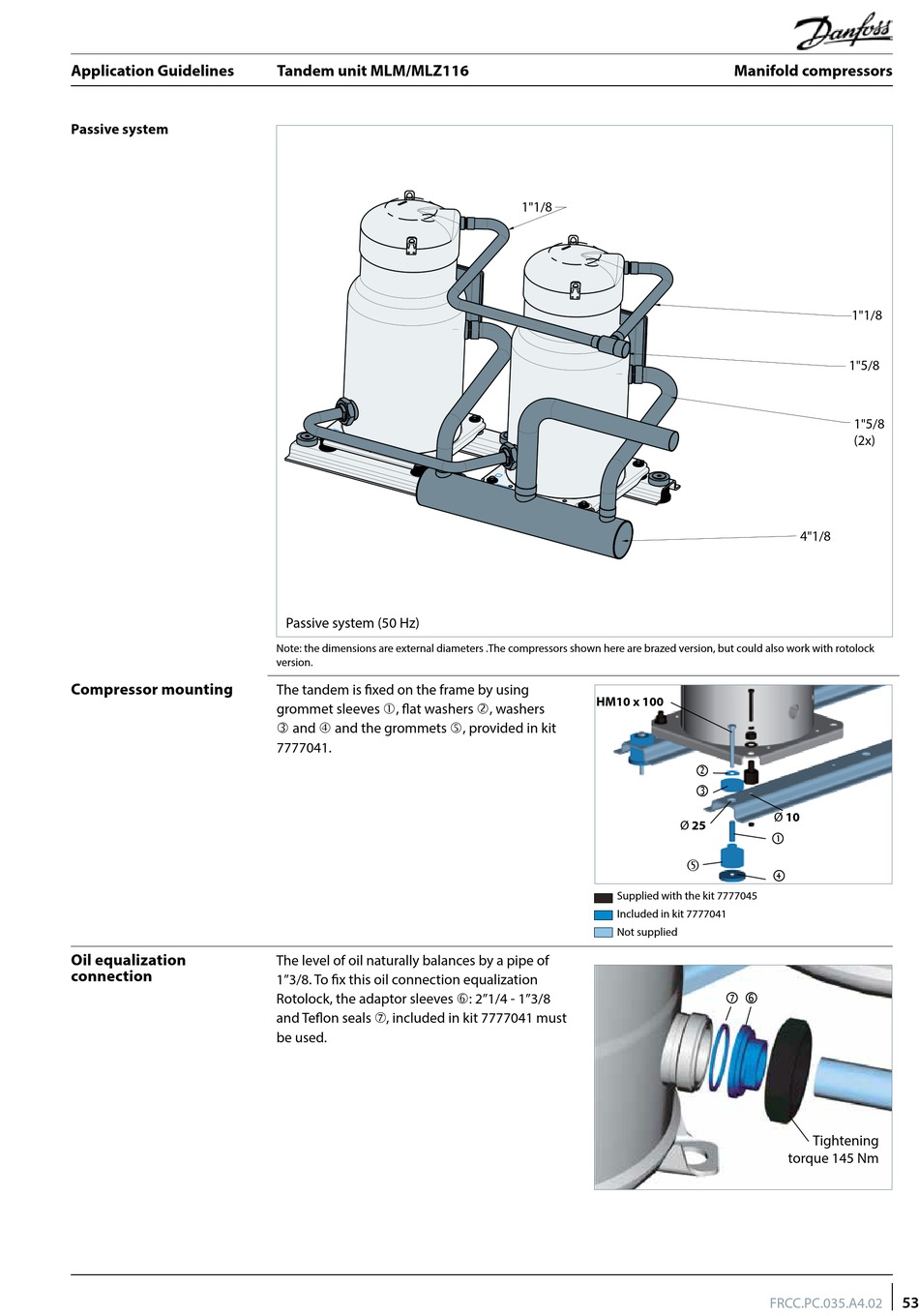

Tandem unit MLM/MLZ116
Passive system (50 Hz)
Note: the dimensions are external diameters .The compressors shown here are brazed version, but could also work with rotolock
version.
The tandem is fixed on the frame by using
grommet sleeves , flat washers , washers
 and  and the grommets , provided in kit
7777041.
The level of oil naturally balances by a pipe of
1"3/8. To fix this oil connection equalization
Rotolock, the adaptor sleeves : 2"1/4 - 1"3/8
and Teflon seals , included in kit 7777041 must
be used.
1"1/8
HM10 x 100
Ø 25
Supplied with the kit 7777045
Included in kit 7777041
Not supplied
Manifold compressors
1"1/8
1"5/8
1"5/8
(2x)
4"1/8
Ø 10
Tightening
torque 145 Nm
FRCC.PC.035.A4.02
53
