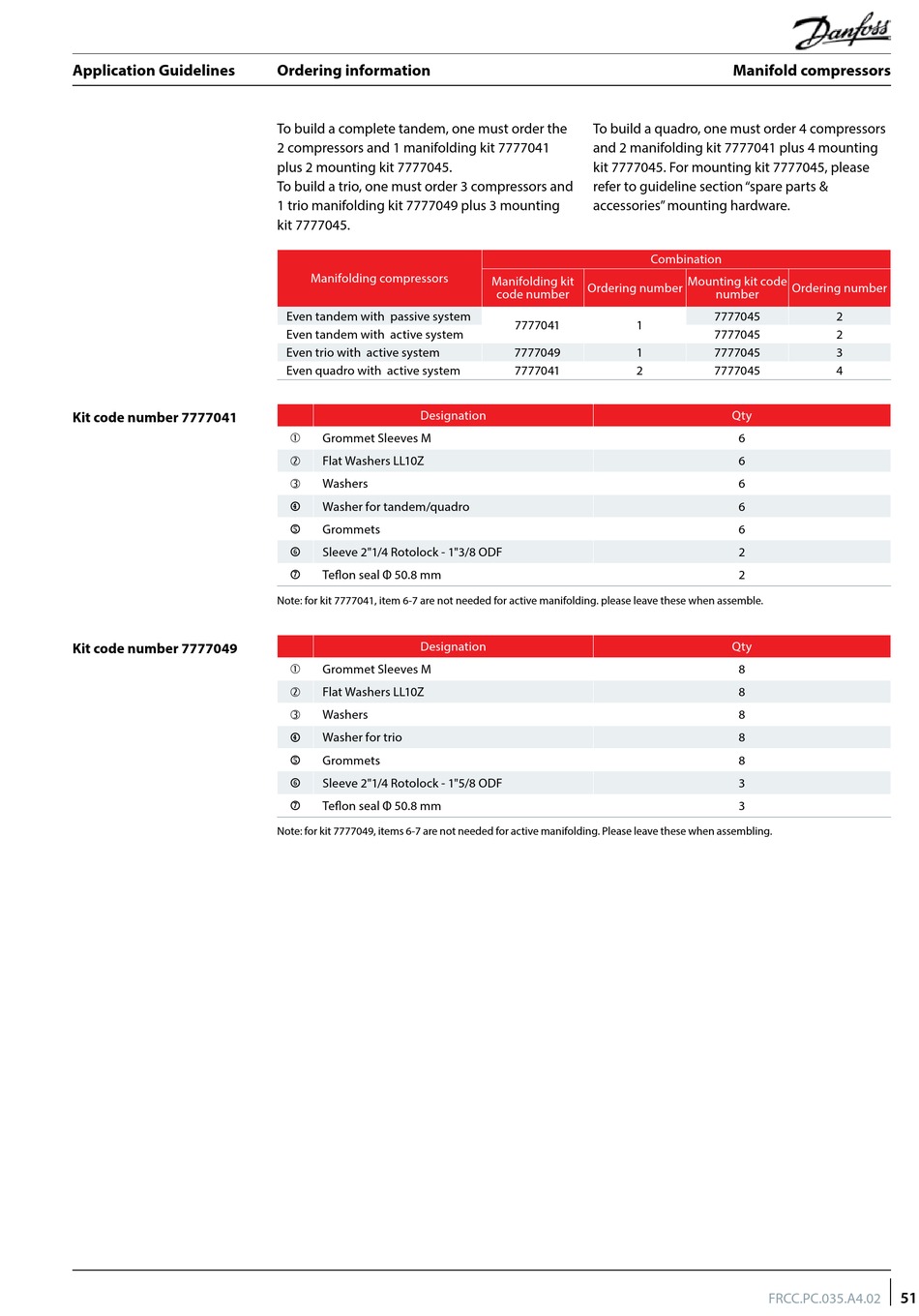

Ordering Information - Danfoss MLM116 Application Manuallines

Application Guidelines
Kit code number 7777041
Kit code number 7777049

Ordering information

To build a complete tandem, one must order the
2 compressors and 1 manifolding kit 7777041
plus 2 mounting kit 7777045.
To build a trio, one must order 3 compressors and
1 trio manifolding kit 7777049 plus 3 mounting
kit 7777045.
Manifolding compressors
Even tandem with passive system
Even tandem with active system
Even trio with active system
Even quadro with active system
Designation
 Grommet Sleeves M
Flat Washers LL10Z

 Washers
Washer for tandem/quadro

Grommets

Sleeve 2"1/4 Rotolock - 1"3/8 ODF

Teflon seal Φ 50.8 mm

Note: for kit 7777041, item 6-7 are not needed for active manifolding. please leave these when assemble.
Designation
Grommet Sleeves M

Flat Washers LL10Z

Washers

Washer for trio

Grommets

Sleeve 2"1/4 Rotolock - 1"5/8 ODF

Teflon seal Φ 50.8 mm

Note: for kit 7777049, items 6-7 are not needed for active manifolding. Please leave these when assembling.
To build a quadro, one must order 4 compressors
and 2 manifolding kit 7777041 plus 4 mounting
kit 7777045. For mounting kit 7777045, please
refer to guideline section "spare parts &
accessories" mounting hardware.
Combination
Manifolding kit
Ordering number
code number
7777041 1
7777049 1
7777041 2
Manifold compressors
Mounting kit code
Ordering number
number
7777045 2
7777045 2
7777045 3
7777045 4
Qty
6
6
6
6
6
2
2
Qty
8
8
8
8
8
3
3
