Richter Optica U2 Setup Instructions

Simple phase contrast setup

Download this manual

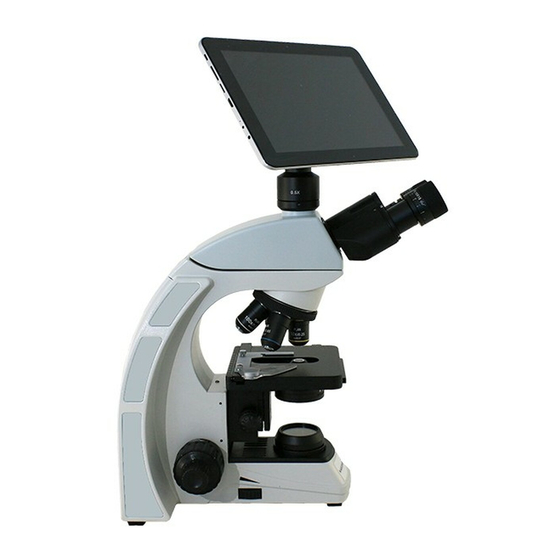

Setting up your Richter Optica U2 Microscope for simple phase

Shown below is the simple phase contrast kit used on the Richter Optica model U2

Microscope. It consists of one 40x Phase Contrast objective lenses, a centering

telescope and a phase slider.

To install:

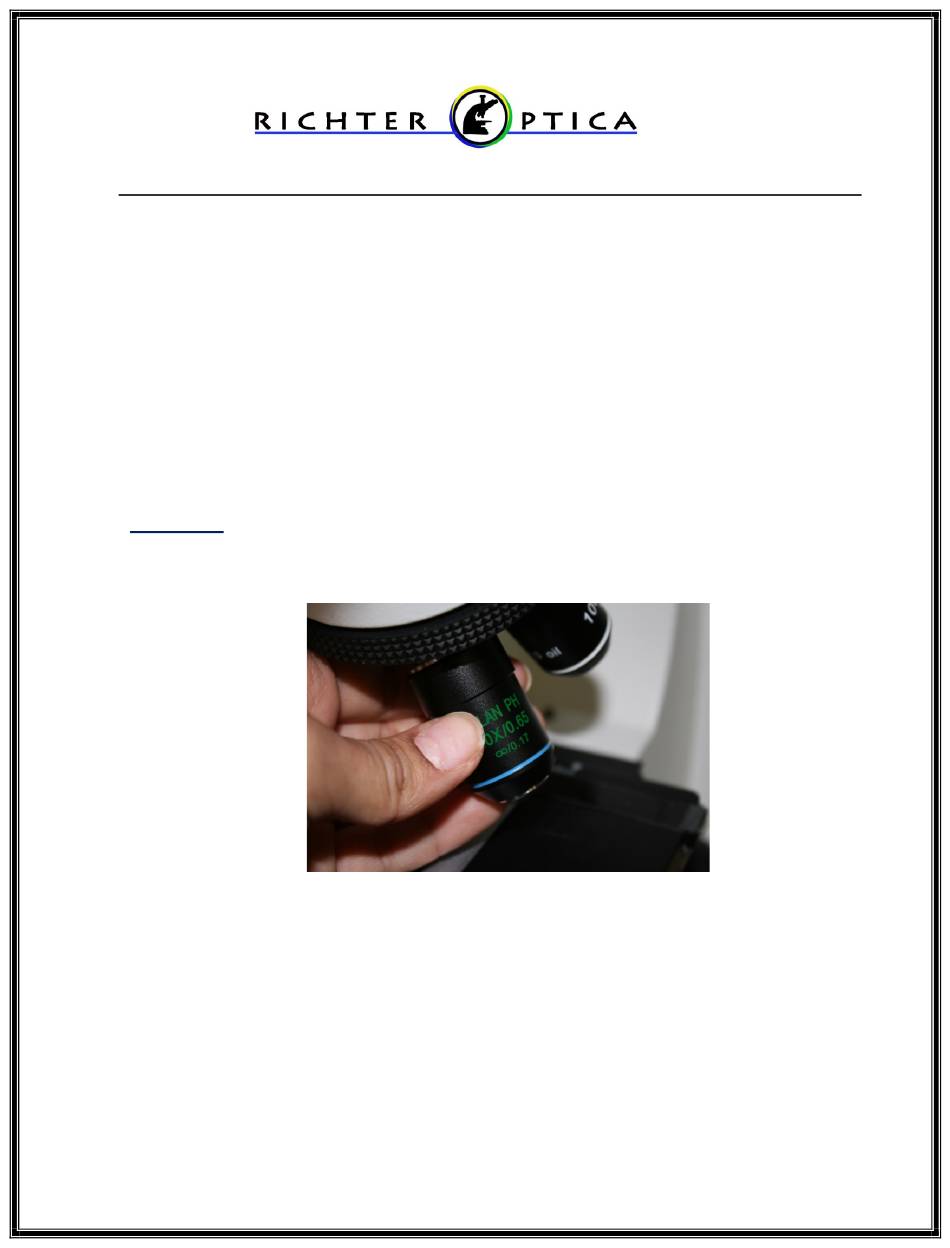

• First attach the 40x phase lens into the nosepiece

• Next, you'll need to remove the existing plug in the condenser and insert the

phase slider in its place.

info@richter-optica.com

contrast observations

Page 1 Setting up your Richter Optica U2 Microscope for simple phase contrast observations Shown below is the simple phase contrast kit used on the Richter Optica model U2 Microscope. It consists of one 40x Phase Contrast objective lenses, a centering telescope and a phase slider.
Page 2 • Not all phase contrast microscopes are the same but generally they rely on similar techniques to set up the system for optimum results. In the system shown below, the condenser has 5 settings, 4x, 10x 40x, 100x, PH. 4x-100x are for your brightfield settings with no Phase.
Page 3 To begin observation: • To set use your microscope for phase contrast, first set the condenser at BF for 4x and focus on the specimen. Then do the same with the 10x. Make sure you are adjusting the height of the condenser for optimum image quality. •...
Page 4 • When looking through the centering telescope, you will see two rings. They may or may not be concentric. By using a small allen wrench, you center the 40x ring on the phase slider so that the rings you see when looking through the telescope are concentric (see the image below).
Page 5 Image once aligned and optimized for Phase Contrast • Finally, remove the centering telescope and replace the eyepiece lens. Put your specimen back on the stage and you are ready for phase contrast observations.
