ATOMSTACK A 5 Pro Installation Manual page 7

S t e p 3
4
1
3
3
2
3
Synchronous belt *2
3
5
Tighten the T nut
and cut off the
excess belt.
Type T Nut *4 Type T Nut Lock
Profile end cover *4
Step3 Required
components:
Installation Manual:

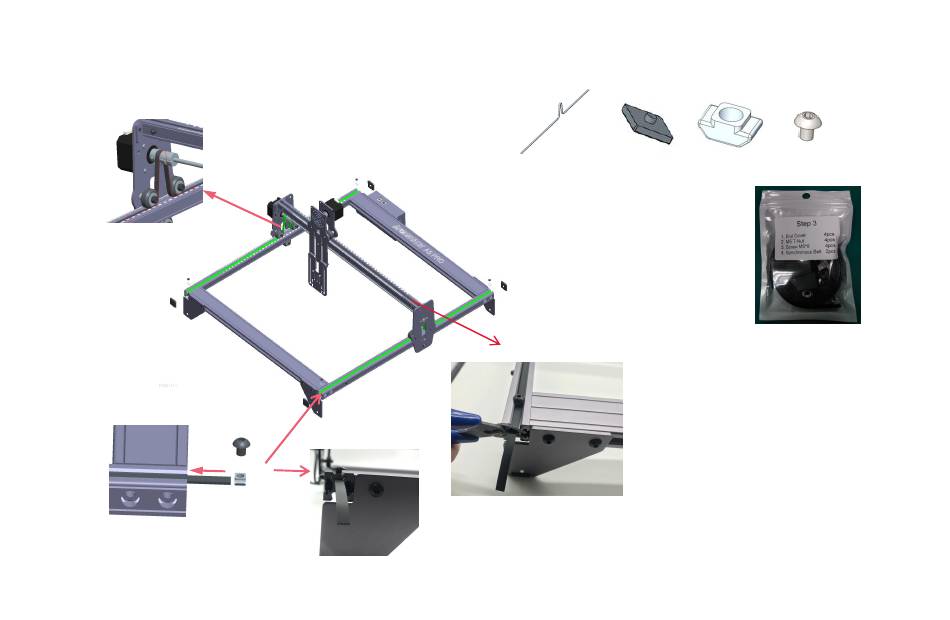

1. Install two synchronous belts as shown in the figure.
First tighten one end with a T-nut, then pass the other
end through the roller on the X-axis assembly as shown
in the figure, and finally tighten the other end and fix it
with a T-nut.
2. T-nut fixing method (Push the T-nut from the groove on
the end of the profile, and then use the screw to tighten
the T-nut), the T-nut is as close to the end of the profile
as possible, and cut off the excess belt.
3. Cover the profile end cover (the side of the end cap
with protrusions is facing down)
TIPS:
The installation of the Y-axis synchronous belt can refer
to the installed synchronous belt on the X-axis
assembly.Determine whether the timing belt is tight
enough: press the position shown in Figure 4 with your
fingers, and if there is no obvious deformation, it is tight
enough. If the deformation is large, loosen one end of
the T-nut and tighten the timing belt, and then tighten the
T-nut.
screws*4
