ATOMSTACK A 5 Pro Installation Manual page 5

S t e p 1
Tick mark font
direction
Y
The hole side faces
outward
X
Step1 Required components:
Installation Manual:

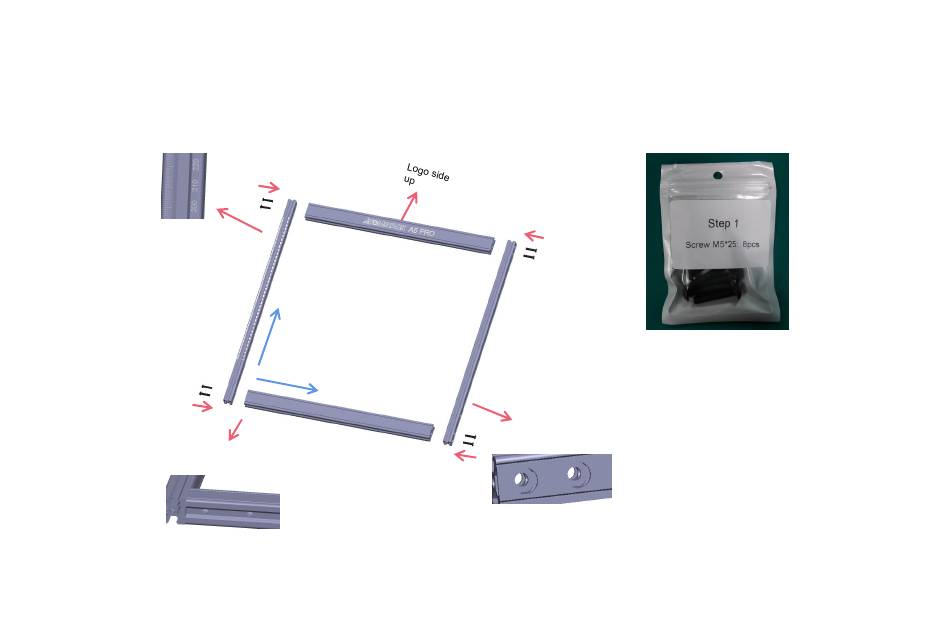

1. Find the four large profiles in the picture
above, place the four profiles as shown, and
pay attention to the direction of the profiles.
2. Tighten the M5 screw in the shaft, and
judge whether you have installed it correctly
Cut side
through the enlarged view details.
outward
Nota:
a. Place the screws, but do not tighten them.
b. Then tighten the screws diagonally.
c. Tools required, M5 Allen key+M5 screws.
