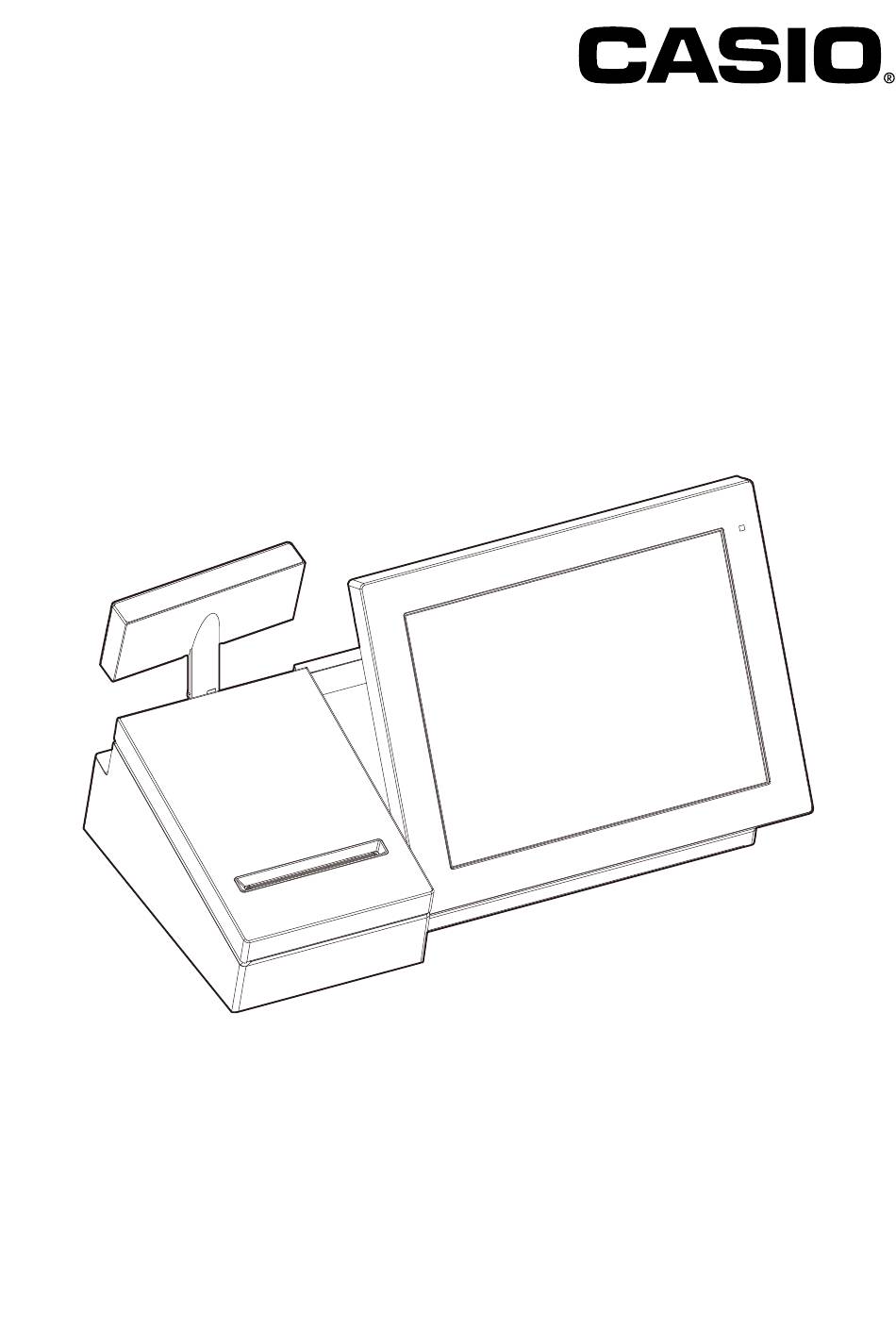

V-R200
Installation Manual
Ver 1.00E

Advertisement

Table of Contents
loading

Related Manuals for Casio V-R200

Summary of Contents for Casio V-R200

  • Page 1 V-R200 Installation Manual Ver 1.00E...
  • Page 2 This is the Installation Manual for those who carry out V-R200’s installation work. This Installation Manual describes how to set up accessories included in V-R200, how to connect optional parts, how to turn the power or shut down V-R200, etc.

  • Page 3: Table Of Contents

    V-R200 Installation Manual CONTENTS Before Installation 1. Precautions ............. P.1 2.

  • Page 4: Before Installation

    V-R200 Installation Manual I. Before Installation 1. Precautions • Do not place in unstable locations such as on an unsteady table or an inclined location. It could fall and cause injury. • Do not place in a location with high humidity or dust. This may result in fi re or electrical shock.

  • Page 5: Installation Space

    V-R200 Installation Manual 2. Installation Space To ensure the operability of the product, secure installation space as shown below. Do not place any objects within the installation space indicated by the dotted rectangle (within 50 mm from the product). 50 mm...

  • Page 6: Options

    V-R200 Installation Manual 4. Options Table. 1 Product Name Product Number Dimensions Remote printer (RS-232C port) UP-370B 145 (W) × 194 (D) × 124 (H) mm Remote printer (RS-232C / LAN port) UP-400B 145 (W) × 194 (D) × 124 (H) mm...

  • Page 7: Installing The Product

    V-R200 Installation Manual II. Installing the Product 1. Checking the accessories AC adaptor Power cord (US only) Multi-purpose tray Magnetic plate Pop tray Tilt switch cover Spacer Paper roll of 80 mm ( 30) Dust cover (For paper roll of 58 mm)

  • Page 8: Connecting Cables

    V-R200 Installation Manual 2. Connecting cables (1) Remove the connector cover. Cutout Connector cover Fig. 4 (2) Connect necessary cables. DC jack USB port LAN port COM3 port COM2 port COM1 port Fig. 5 (3) Run the cables from the side of the product as shown in Fig. 6, and attach the connector cover by fastening the included connector cover fastening screw.

  • Page 9: Installing The Pop Tray

    V-R200 Installation Manual 3. Installing the pop tray (1) Tilt the product, and attach and slide the pop tray so that the four stoppers on the bottom fi t into the round holes in the pop tray slide mechanism. Pop tray...
  • Page 10 V-R200 Installation Manual (2) Loosen the screw fastening the card cover, and remove the card cover. Screw Card cover Fig. 10 (3) Insert the SD/SDHC memory card into the memory card slot with its surface facing the display of the product.

  • Page 11: Setting The Paper Roll

    V-R200 Installation Manual 5. Setting the paper roll (1) Push to release the lock and open the printer cover. Fig. 13 (2) Push the paper holder lever toward you (in the direction of the arrow) until it makes a clicking sound.
  • Page 12 V-R200 Installation Manual When using a paper roll of 58 mm width, install the included spacer. Spacer [Installing method] Insert the four tabs of the spacer into the four slots in the paper compartment to attach it. [Setting the printer “Print Width”] For setting the print width, refer to “7.

  • Page 13: Adjusting The Angle Of The Main Display

    V-R200 Installation Manual 6. Adjusting the angle of the main display (1) Plug in the AC adaptor to the outlet and turn the power switch ON. Power switch Fig. 19 (2) Adjust the angle of the main display to a position that suits the operator’s work by pressing the tilt switch.

  • Page 14: Confi Guring The Printer Settings

    V-R200 Installation Manual 7. Confi guring the printer settings Check/Set for “Print Width” and “Paper Type”. Print Width Set the “Print Width” to suit the width of the paper roll (80 mm/58 mm) to be used. The default factory setting is 80 mm.

  • Page 15: Installing Options

    V-R200 Installation Manual III. Installing Options 1. MCR (1) Make sure that the following parts are included in the package. MCR unit Protective plate Screws Binding head screw x 2 Countersunk head screw x 2 (2) Peel off the tape from the MCR unit.
  • Page 16 V-R200 Installation Manual (5) Temporarily install the MCR unit in the product with two screws. NOTE: Use the countersunk head screws included in the MCR. NOTE: If the screws are fully tightened, the projection of the protective plate cannot be inserted into the MCR unit in the later procedure.
  • Page 17 V-R200 Installation Manual (7) Install the protective plate. Put the MCR cable edge on the bent edge of the protective plate, and then install the protective plate on the product. (See Fig. 31.) While taking care that the MCR cable is not caught, slide the protective plate to insert its projection into the MCR unit.
  • Page 18 V-R200 Installation Manual (8) Align the screw holes in the protective plate with those in the bottom of the product, and fi x the protective plate with three binding head screws. NOTE: Pay attention to the screw length. The included two screws are a little shorter than the one that was removed in Step (4).

  • Page 19: Drawer

    V-R200 Installation Manual 2. DRAWER (M-type) (1) Make sure that the following parts are included in the package. Drawer Keys Drawer fi xing hook *1 Drawer fi xing sheet *1 *1: The drawer fi xing hook is for M-size drawer only.
  • Page 20 V-R200 Installation Manual If the drawer does not open If the drawer fails to open due to a power cut or fault, it can be opened by moving the drawer release lever (tab on the drawer bottom). Drawer release lever Fig.
  • Page 21 V-R200 Installation Manual Attach the drawer hook to prevent the drawer from tilting forward. (1) Peel off the release paper from the drawer fi xing sheet, and attach the drawer fi xing sheet to the drawer fi xing hook. Fig. 40 Fig.

  • Page 22: Multi-Purpose Tray

    V-R200 Installation Manual 3. Multi-purpose tray Use the multi-purpose tray as a container for small items by putting it on the drawer. Since the tray has magnets on the bottom, it is attracted to the VR-200’s genuine drawer. Front Rear Magnets Fig.

  • Page 23: Information

    V-R200 Installation Manual IV. Information 1. Basic Operation (1) General information Power lamp Power switch Maintenance switch Reset switch Fig. 49 • The power switch is pressed. OFF state ON state Power lamp: OFF Power lamp: Green • The power switch is held down more than 5 sec., then choose "Power off".

  • Page 24: Shutdown Procedure

    V-R200 Installation Manual (2) Shutdown procedure There are two ways to shut down. Shutting down by the power switch Press and hold the power switch until “Power off” / “force tablet reboot” appears. Select “Power off” “OK”. Fig. 51 Fig. 52 Shutting down by the maintenance switch Press and hold the maintenance switch until “Pwer off”...

  • Page 25: Sd/Sdhc Memory Card (1) Recommended Sd/Sdhc Memory Card

    V-R200 Installation Manual 2. SD/SDHC memory card (1) Recommended SD/SDHC memory card SanDisk Corporation Transcend Information, Inc. SDSDB-016- SDSDUL-016- TS16GSDU1 Fig. 54 (2) Mounting the SD/SDHC memory card SD/SDHC memory card is automatically mounted when it is inserted. If it has been unmounted due to incorrect operation, mount it again.

  • Page 26: Magnetic Plate

    V-R200 Installation Manual 3. Magnetic plate The magnetic plate is used to temporarily keep paper money received from the customer. Front Rear Release paper Protective tape Fig. 57 Clean the surface where the magnetic plate is to be attached. Then attach the magnetic plate, taking care to avoid injury.
  • Page 27 CASIO COMPUTER CO., LTD. Overseas CS Department TOKYO, JAPAN © 2016 CASIO COMPUTER CO., LTD.
