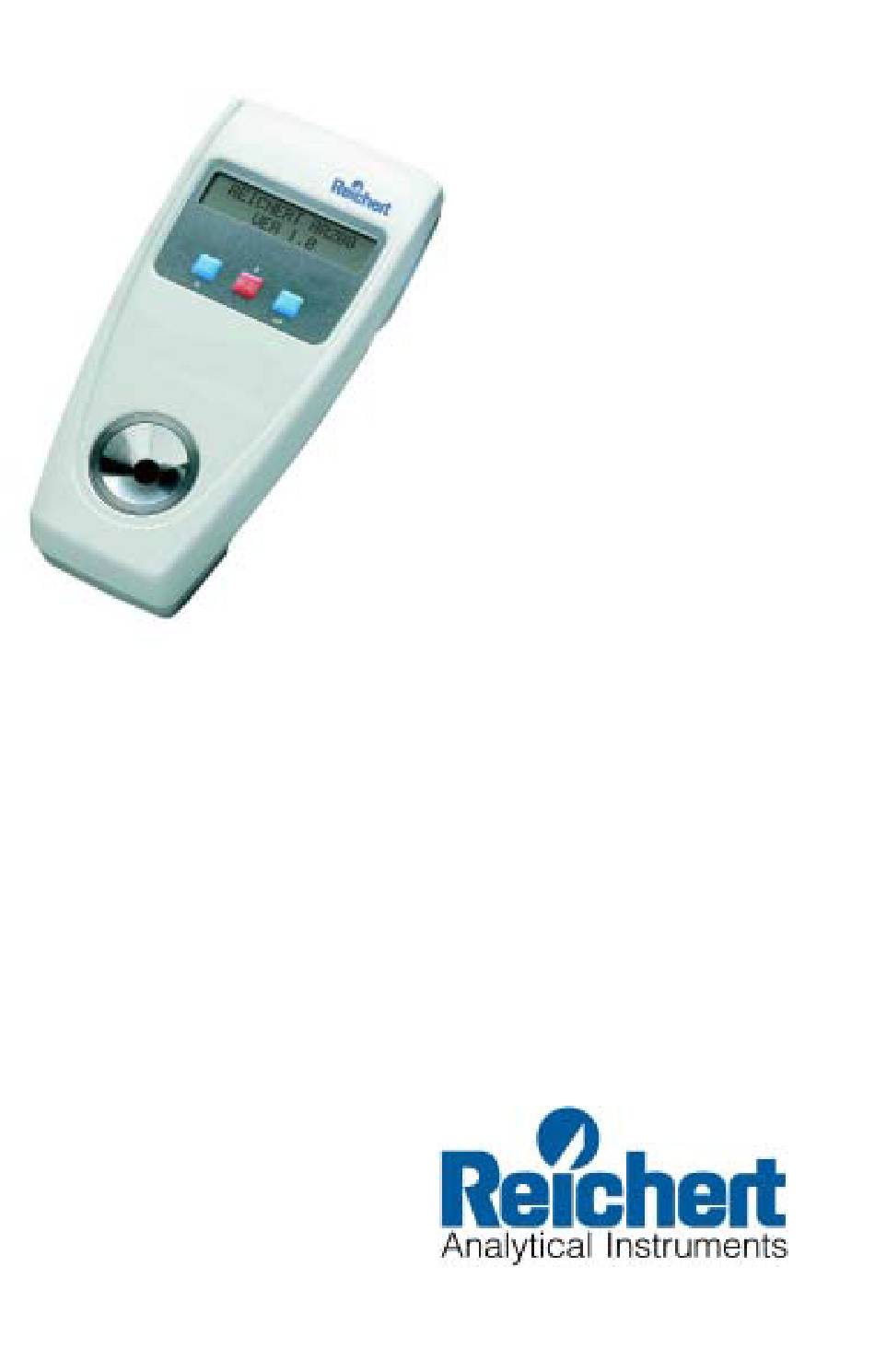

- Page 1 AR200 Refractometer User’s Guide Page 1...
-
Page 2: Table Of Contents
Reichert AR200 Instruction Manual Table of Contents Page Introduction Specifications Environmental Conditions Care and Cleaning 4.1 Care of Prism Surface Instrument Features Automatic Temperature Compensation 6.1 Temperature coefficient and correction calculations 7 Installation Procedure 7.1 Set Up Sample Reading Menu Options 10.0... -
Page 3: Introduction
0.0001or % Solids (Brix) to +/-0.1 with a range of 1.3300 to 1.5600nD and 0 to 95% Solids (Brix). Please note that an AR200 Refractometer is a high precision optical instrument. It is absolutely necessary to properly maintain the instrument to obtain the best possible accuracy. -
Page 4: Specifications
2.0 SPECIFICATIONS · The Reichert AR200 operates on four AAA batteries. The instrument is capable of 3000+ readings on a set of batteries and has auto/off sleep mode after 30 seconds of inactivity and low battery detection. · Three Key Operation: “CAL”, “READ”... -
Page 5: Environmental Conditions
· Altitude up to 2,000 meters 4.0 CARE AND CLEANING The Reichert AR200 is a precision optical instrument. The prism surface and well should be cleaned immediately after use. The interior components are protected from dust, spills, and other damage. The stainless steel well and prism assembly is sealed with corrosion-resistant epoxy. -

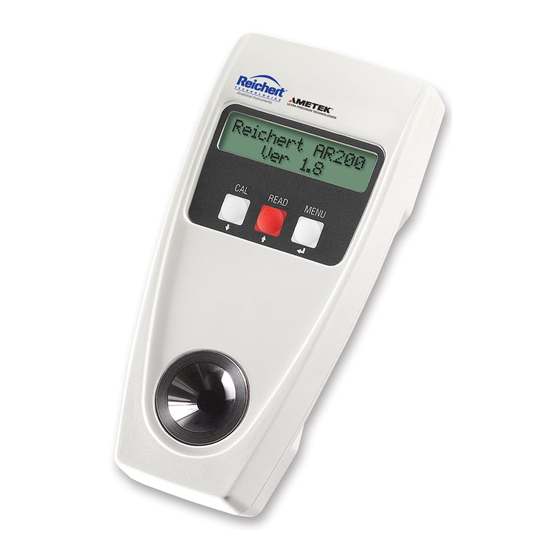

Page 6: Instrument Features
4. IR Window – Located on the bottom of the AR200, it is used to communicate with your PC when cradled in the optional docking station. -
Page 7: Automatic Temperature Compensation
It is however necessary to Allow Samples to Temperature Equilibrate (sample must reach same temperature as prism surface) so that the AR200 can properly correct for temperature. The automatic temperature compensation mode built into the AR200 is based on the temperature coefficients ( ∆nD/∆... -
Page 8: Set Up
Allow the instrument time to reach room temperature. Turn the AR200 on by pressing the “MENU” key. The title screen will appear followed by instructions to apply sample and press read. DO NOT, apply sample or press read at this time. - Page 9 J. Press the “READ” key and note the value on the display, which should be “0.0 Brix-TC, 20.0 C”. Please note that the 0.0 Brix - TC reading can vary by +/ - 0.1 which is the acceptable tolerance of the AR200. 0.0 Brix - TC 20.0 Page 9...
-
Page 10: Sample Reading
SAMPLE READING A. Clean and dry the prism and well with a soft wipe, which will leave no residue and recommended cleaning agents, soap and warm water, Methanol or Isopropyl Alcohol followed by distilled water. B. Add enough of the sample to cover prism surface and allow adequate time for sample to temperature equilibrate to prism/well. -
Page 11: Menu Options
F Select Channel – This feature is visible only when at least one custom channel has been added to the AR200. Entering this feature allows the operator to switch between available channels/scales. G Reading Mode – Allows for changing between nD, nD-TC, Brix or Brix-TC reading modes. -
Page 12: Daily Single Point Calibration
Exit Menu 3. Apply Distilled Water sample and Press the “CAL” key. Apply water CAL = Calibration MENU = Cancel 6. Set point cal successful message will appear if the AR200 is functioning properly. Set point cal successful Page 12... -
Page 13: Multipoint Calibration
10.0 MULTIPOINT CALIBRATION The AR200 can be calibrated with up to 5 points using distilled water and 4 user definable points (note that these are set at the factory to match available NIST certified standards). Performing a 2 point calibration will provide the required accuracy needed, using distilled water and a high refractive index NIST certified standard. -
Page 14: Calibration Oils
A through G making sure that you always start with the lowest refractive index sample and moving up to the highest refractive index sample. Clean and dry the prism surface and the AR200 will be ready to take readings. 11.1 CALIBRATION OILS... -
Page 15: Channels
The IR Communications Package includes a docking station and the software required to connect the AR200 to your PC. It is useful for down loading stored readings, up to 225 of the most recent readings and up to 5 point current calibration log. - Page 16 Reichert Analytical Instruments Reichert, Inc. 3362 Walden Ave Depew, NY 14043 Toll Free: 888-849-8955 Phone: 716-686-4500 email: info@reichert.com www.reichert.com Reichert GmbH Hubertusstrasse 4 D-82229 Seefeld Germany Tel: +49-8152-993530 ISO-9001 Certified 13950000-100 Rev. E Page 16...
