Orion
Francais
➊
Pour obtenir le manuel d'utilisation
complet, veuillez vous rendre sur le site Web
OrionTelescopes.eu/fr et saisir la référence
du produit dans la barre de recherche.
➋
Cliquez ensuite sur le lien du manuel
d'utilisation du produit sur la page de
description du produit.
Deutsche
➊
Wenn Sie das vollständige Handbuch
einsehen möchten, wechseln Sie zu
OrionTelescopes.de, und geben Sie in der
Suchleiste die Artikelnummer der
Orion-Kamera ein.
➋
Klicken Sie anschließend auf der Seite mit
den Produktdetails auf den Link des entspre-
chenden Produkthandbuches.
Español
➊
Para ver el manual completo, visite Orion-
Telescopes.eu y escriba el número de artí-
culo del producto en la barra de búsqueda.
➋
A continuación, haga clic en el enlace al
manual del producto de la página de detalle
del producto.
Italiano
➊
Per accedere al manuale completo, visitare il
OrionTelescopes.eu
sito Web
. Immettere the
product item number nella barra di ricerca
➋
Fare quindi clic sul collegamento al manuale
del prodotto nella pagina delle informazioni sul
prodotto.

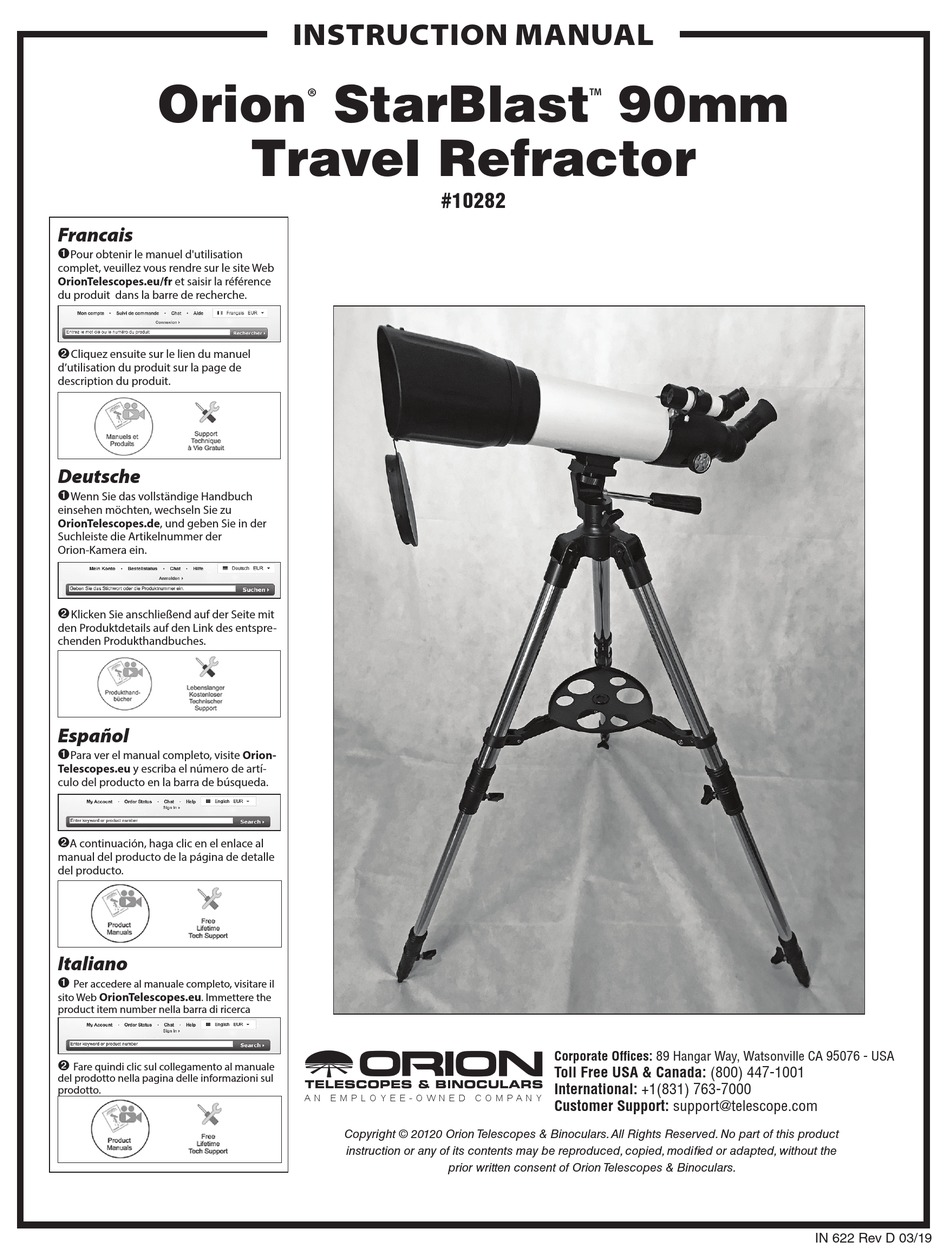

INSTRUCTION MANUAL

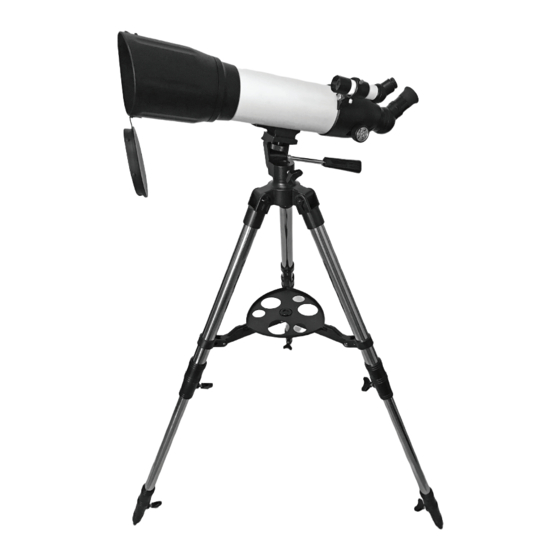

StarBlast
®
Travel Refractor
A N E M P L O Y E E - O W N E D C O M P A N Y
Copyright © 20120 Orion Telescopes & Binoculars. All Rights Reserved. No part of this product
instruction or any of its contents may be reproduced, copied, modified or adapted, without the
90mm
™
#10282
Corporate Offices: 89 Hangar Way, Watsonville CA 95076 - USA
Toll Free USA & Canada: (800) 447-1001
International: +1(831) 763-7000
Customer Support: support@telescope.com
prior written consent of Orion Telescopes & Binoculars.
IN 622 Rev D 03/19
Advertisement
Related Manuals for ORION TELESCOPES & BINOCULARS StarBlast 10282
Summary of Contents for ORION TELESCOPES & BINOCULARS StarBlast 10282
- Page 1 INSTRUCTION MANUAL Orion StarBlast 90mm ™ ® Travel Refractor #10282 Francais ➊ Pour obtenir le manuel d'utilisation complet, veuillez vous rendre sur le site Web OrionTelescopes.eu/fr et saisir la référence du produit dans la barre de recherche. ➋ Cliquez ensuite sur le lien du manuel d’utilisation du produit sur la page de description du produit.
-
Page 2: Included Items
Congratulations on your purchase of a quality Orion product. The StarBlast 90mm Travel Refractor is a versatile and portable 90mm-aperture telescope designed for exploring scenic daytime vistas as well as scanning the night skies for celestial treasures. A complete telescope with an extendable stainless steel tripod, great accessories, and a rugged case with shoulder strap that holds everything, the “StarBlast 90”... - Page 3 C ........Optical tube D ....5x20 correct-image finder scope E .
- Page 4 the image in both the finder scope and the telescope’s eyepiece is centered. The finder scope alignment needs to be checked before every observing session. This can easily be done at night, as well, Slot before a stargazing session. Choose any bright star or planet, center the object in the telescope eyepiece, and then adjust the finder scope’s alignment screws until the star or planet is also centered in the finder’s field of view.
- Page 5 viewing conditions. Your StarBlast 90mm refractor comes with (refer to Figure 7), then take hold of the pan handle and gently 25mm (E) and 9mm (F) Kellner eyepieces, which will suffice move it left or right. nicely to begin with. You can purchase additional eyepieces To move the telescope in altitude, first twist the pan handle later if you wish to have more magnification options.
- Page 6 • Saturn Terrestrial and Celestial Viewing with the StarBlast 90mm Best targets from rural locations (everything above, plus): The Orion StarBlast 90mm is equipped with a built-in, 45-degree • The Great Nebula in Orion – a spectacular glowing cloud “correct-image” diagonal, which provides an upright, “normal” of gas in Orion’s sword;...
-
Page 7: Telescope Care And Maintenance
To see what you’re doing in the darkness, use a red-filtered shines directly downward on the lunar surface, so no shadows flashlight rather than a white light. Red light does not spoil your are cast by the moon's topography. eyes’ dark adaptation like white light does. A flashlight with a red LED light is ideal. -
Page 8: Specifications
Specifications Diagonal: Integrated 45-degree correct-image, 1.25" Objective lens: 90mm (3. 5") diameter, Eyepiece magnification: 20x (with 25mm eyepiece) achromatic and 56x (with 9mm eyepiece) Effective focal length: 500mm Finder scope: 5x20 correct-image, Focal ratio: f/5.6 45-degree eyepiece angle Lens coatings: Antireflection coated Tripod: Stainless steel, 3-section...
