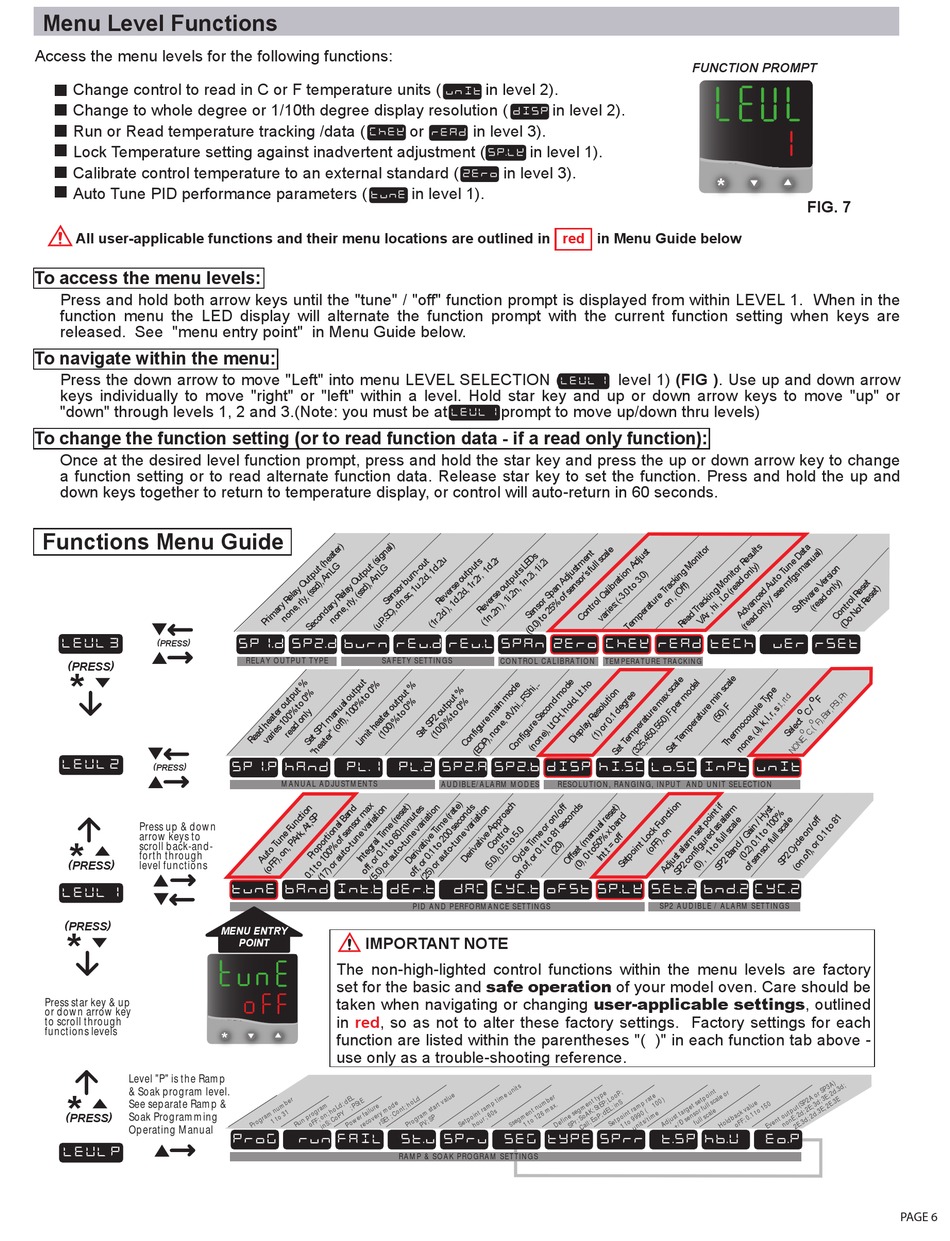

Quincy lab Bench ER Series Operating Manual page 6

Menu Level Functions
Access the menu levels for the following functions:
Change control to read in C or F temperature units (
Change to whole degree or 1/10th degree display resolution (
Run or Read temperature tracking /data (
Lock Temperature setting against inadvertent adjustment (
Calibrate control temperature to an external standard (
Auto Tune PID performance parameters (
All user-applicable functions and their menu locations are outlined in
To access the menu levels:
Press and hold both arrow keys until the "tune" / "off" function prompt is displayed from within LEVEL 1. When in the
function menu the LED display will alternate the function prompt with the current function setting when keys are
released. See "menu entry point" in Menu Guide below.
To navigate within the menu:
Press the down arrow to move "Left" into menu LEVEL SELECTION (
keys individually to move "right" or "left" within a level. Hold star key and up or down arrow keys to move "up" or
"down" through levels 1, 2 and 3.(Note: you must be at
To change the function setting (or to read function data - if a read only function):
Once at the desired level function prompt, press and hold the star key and press the up or down arrow key to change
a function setting or to read alternate function data. Release star key to set the function. Press and hold the up and
down keys together to return to temperature display, or control will auto-return in 60 seconds.
Functions Menu Guide
( PRESS )
LEVL 3
( PRESS )
*
LEVL 2
( PRESS )
Press up & down
arrow keys to
*
scroll back-and-
forth through
( PRESS )
level functions
LEVL 1
( PRESS )
*
Press star key & up
or down arrow key
to scroll through
functions levels
Level "P" is the Ramp
*
& Soak program level.
See separate Ramp &
( PRESS )
Soak Programming
Operating Manual
LEVL P
CHEK
TUNE
SP1.D SP2.D BURN REU.D REU.L SPAN ZERO CHEK READ TECH
RE LA Y O UT P UT TY P E S AF ET Y SETT I NG S
SP1.P HAND PL.1 PL.2 SP2.A SP2.B DISP HI.SC LO.SC INPT UNIT
M ANUAL A DJUS T M E NT S
TUNE BAND INT.T DER.T
MENU ENTRY
IMPORTANT NOTE
POINT
The non-high-lighted control functions within the menu levels are factory
set for the basic and safe operation of your model oven. Care should be
taken when navigating or changing user-applicable settings, outlined
in red, so as not to alter these factory settings. Factory settings for each
*
function are listed within the parentheses "( )" in each function tab above -
use only as a trouble-shooting reference.
PROG RUN FAIL
in level 2).
UNIT
in level 2).
DISP
or in level 3).
READ
in level 1).
SP.LK
in level 3).
ZERO
in level 1).
red
LEVL 1
prompt to move up/down thru levels)
LEVL 1
CO NT R OL C A LI BR A T IO N
AU DIBLE /ALA R M M OD ES R ESO LU T IO N, R A N G IN G, IN P U T A N D U N IT S EL ECT IO N
DAC CYC.T OFST SP.LK SET.2 BND.2 CYC.2
P I D AN D P ERFO RMA N CE SE TT IN G S
ST.U SPRU SEG TYPE SPRR
RAMP & SO AK P ROG RAM S ET T IN GS
FUNCTION PROMPT
*
in Menu Guide below
level 1) (FIG ). Use up and down arrow
UER RSET
TEM PER AT U R E TR A C KI NG
S P2 A U D IB L E / A L A R M S ET T IN GS
T.SP HB.V EO.P
FIG. 7
PAGE 6
