uincy
ab

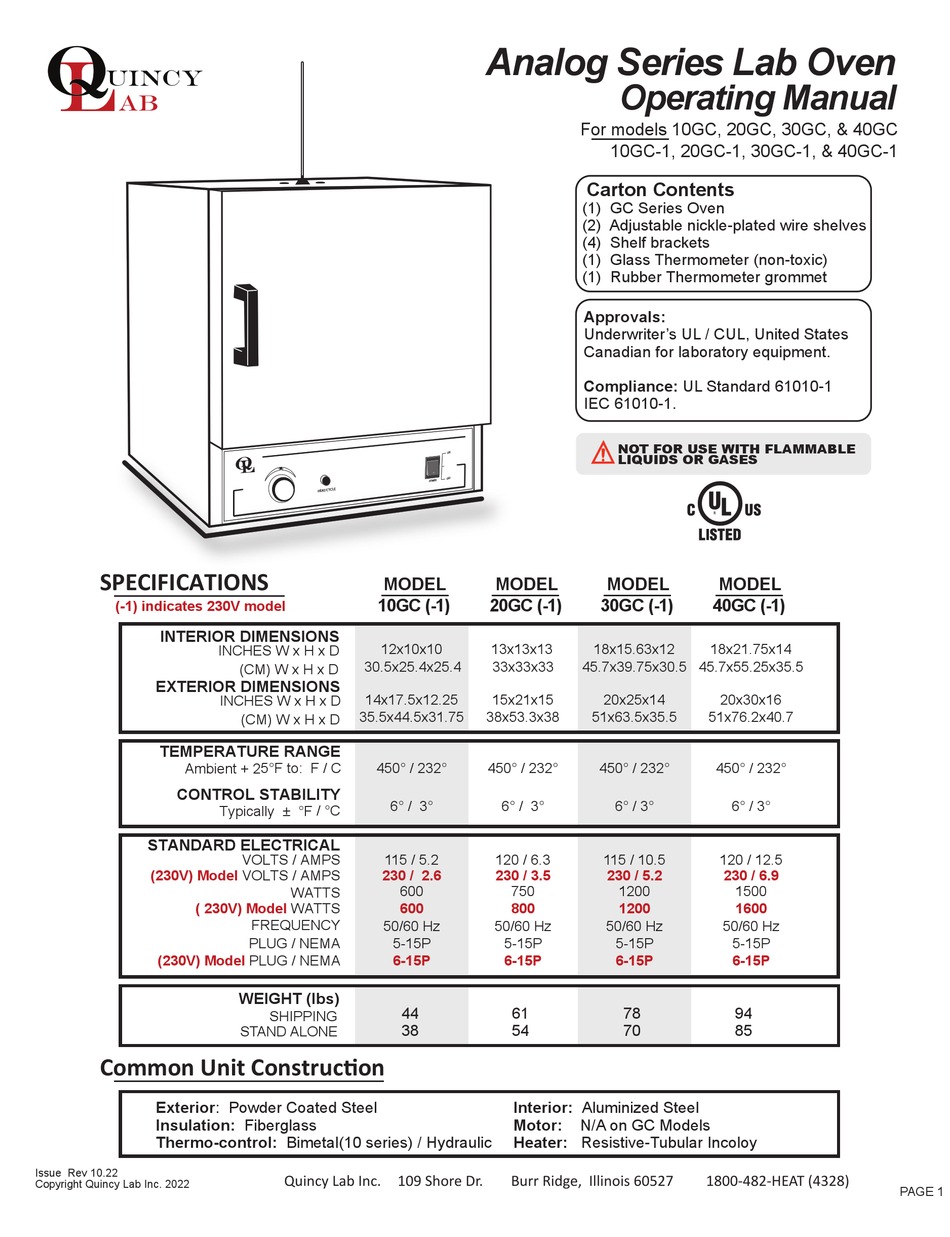

SPECIFICATIONS
(-1) indicates 230V model
INTERIOR DIMENSIONS
EXTERIOR DIMENSIONS
TEMPERATURE RANGE
CONTROL STABILITY
STANDARD ELECTRICAL
(230V) Model
( 230V) Model
(230V) Model
Common Unit Construc�on
Exterior: Powder Coated Steel
Insulation: Fiberglass
Thermo-control: Bimetal(10 series) / Hydraulic
Issue Rev 10.22
Copyright Quincy Lab Inc. 2022
MODEL
10GC (-1)
12x10x10
INCHES W x H x D
30.5x25.4x25.4
(CM) W x H x D
14x17.5x12.25
INCHES W x H x D
35.5x44.5x31.75
(CM) W x H x D
450° / 232°
6° / 3°
VOLTS / AMPS
115 / 5.2
VOLTS / AMPS
230 / 2.6
WATTS
WATTS
FREQUENCY
50/60 Hz
PLUG / NEMA
5-15P
6-15P
PLUG / NEMA
WEIGHT (lbs)
SHIPPING
STAND ALONE
Quincy Lab Inc. 109 Shore Dr.
Analog Series Lab Oven
MODEL
20GC (-1)
13x13x13
33x33x33
15x21x15
38x53.3x38
450° / 232°
6° / 3°
120 / 6.3
230 / 3.5
600
750
600
800
50/60 Hz
5-15P
6-15P
44
61
38
54
Interior: Aluminized Steel
Motor:
Heater: Resistive-Tubular Incoloy
Burr Ridge, Illinois 60527
Operating Manual
For models 10GC, 20GC, 30GC, & 40GC
10GC-1, 20GC-1, 30GC-1, & 40GC-1
Carton Contents
(1) GC Series Oven
(2) Adjustable nickle-plated wire shelves
(4) Shelf brackets
(1) Glass Thermometer (non-toxic)
(1) Rubber Thermometer grommet
Approvals:
Underwriter's UL / CUL, United States
Canadian for laboratory equipment.
Compliance: UL Standard 61010-1
IEC 61010-1.
NOT FOR USE WITH FLAMMABLE
LIQUIDS OR GASES
MODEL
MODEL
30GC (-1)
40GC (-1)
18x15.63x12
18x21.75x14
45.7x39.75x30.5
45.7x55.25x35.5
20x25x14
20x30x16
51x63.5x35.5
51x76.2x40.7
450° / 232°
450° / 232°
6° / 3°
6° / 3°
115 / 10.5
120 / 12.5
230 / 5.2
230 / 6.9
1200
1500
1200
1600
50/60 Hz
50/60 Hz
5-15P
5-15P
6-15P
6-15P
78
94
70
85
N/A on GC Models
1800-482-HEAT (4328)
PAGE 1
Advertisement
Related Manuals for Quincy lab Analog Series
Summary of Contents for Quincy lab Analog Series
- Page 1 Interior: Aluminized Steel Insulation: Fiberglass Motor: N/A on GC Models Thermo-control: Bimetal(10 series) / Hydraulic Heater: Resistive-Tubular Incoloy Issue Rev 10.22 Quincy Lab Inc. 109 Shore Dr. Burr Ridge, Illinois 60527 1800-482-HEAT (4328) Copyright Quincy Lab Inc. 2022 PAGE 1...
- Page 2 WARNING IMPORTANT WARNING Refers to an important note in the usage of the unit Warns of a possible electrical shock Warns of a possible risk of fire CAUTION WARNING Cautions of HOT exterior surface during operation Warns of possible injury or muscle strains, use assistance when moving or lifting Safety Precautions Read Operating Instructions thoroughly prior to operation Operate the oven in accordance with all state, local, and federal laws that may govern its usage for your specific...
- Page 3 General Operation (continued) For 10GC models: Rotate the dial clockwise to around the number '8'. The “heat/cycle” light will come on indicating heater activity. Monitor the reading on the thermometer until it reaches the desired temperature. Next, rotate the control knob very slowly counter-clockwise until the heat-cycle light goes out. The thermostat will then cycle automatically maintaining the set temperature.
-
Page 4: Troubleshooting
Burr Ridge, Illinois 60527 Limited Warranty Quincy Lab, Inc. warrants to the original purchaser that this product will be free from defects in material and workmanship under normal use throughout the warranty period. The standard warranty period for this instru- ment is twenty four (24) months from date of shipment. - Page 5 LAB OVEN SERIES Calibra�on and Temperature Range Adjustement for Analog Lab Ovens A calibration to the knob can be performed if the chamber temperature is off by 15 degrees Fahrenheit or more from the temperature number printed on the dial on models 20,30,and 40 GC/AF. A temperature range adjustment can be performed to the oven when not able to reach lower or higher temperatures when set with the dial.
