SPECIFICATIONS
INTERIOR DIMENSIONS
INCHES W x H x D
(CM) W x H x D
EXTERIOR DIMENSIONS
INCHES W x H x D
(CM) W x H x D
TEMPERATURE RANGE
CONTROL STABILITY
@ 100C
@ 200C
STANDARD ELECTRICAL
VOLTS/AMPS
WATTS
PLUG/NEMA
*Standard models voltage only, optional 230 voltage available by adding (-1) onto model number. Check label on back of unit.
WEIGHT
SHIPPING
STAND ALONE
Common Unit Construc�on
Exterior:
Insula�on:
Thermo-control:
Issue Rev B 0120
Copyright Quincy Lab Inc. 2020

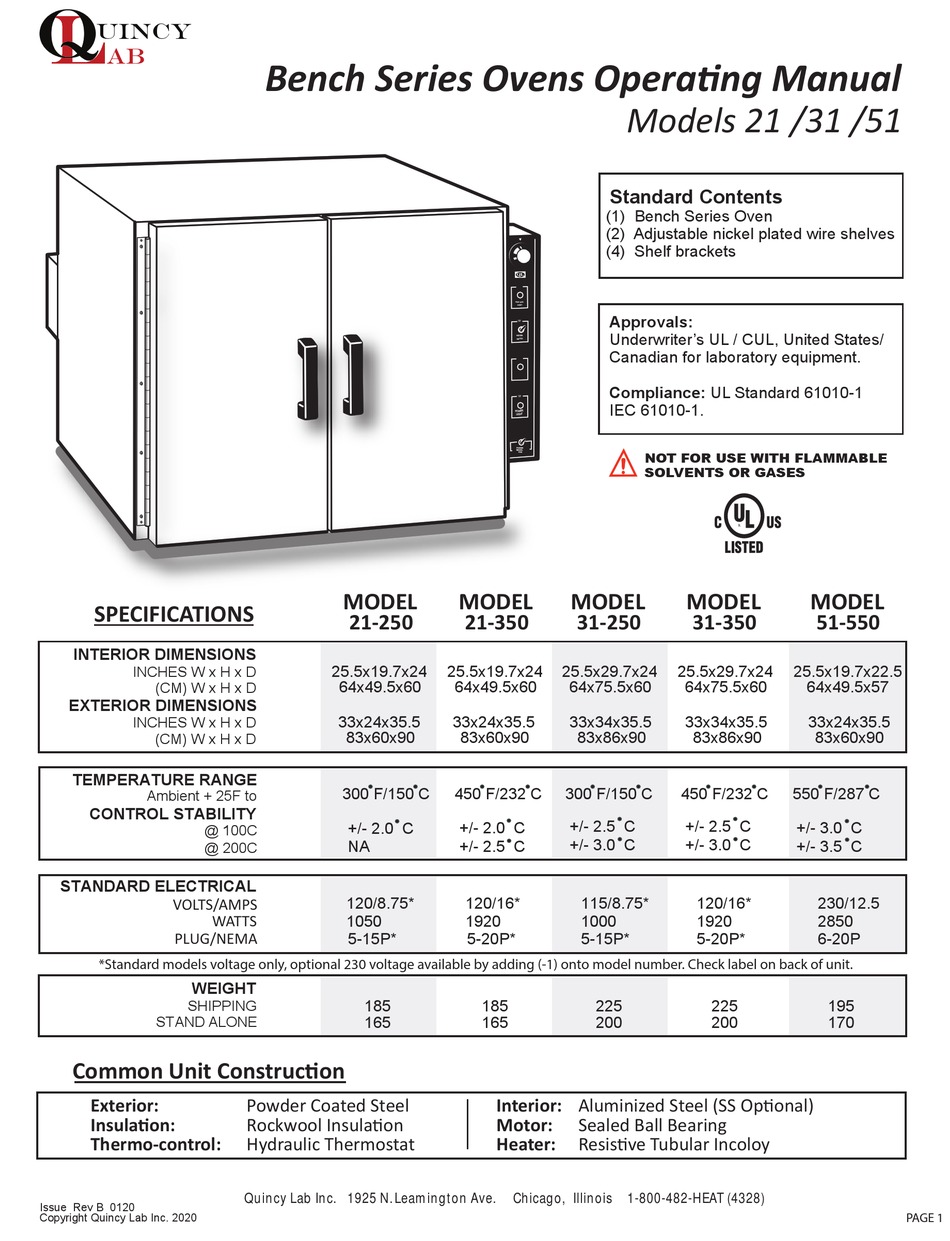

Bench Series Ovens Operating Manual
MODEL
21-250
25.5x19.7x24
64x49.5x60
33x24x35.5
83x60x90
300 F/150 C
+/- 2.0 C
NA
120/8.75*
1050
5-15P*
185
165
Powder Coated Steel
Rockwool Insula�on
Hydraulic Thermostat
Quincy Lab Inc. 1925 N. Leamington Ave.
Standard Contents
(1) Bench Series Oven
(2) Adjustable nickel plated wire shelves
(4) Shelf brackets
Approvals:
Underwriter's UL / CUL, United States/
Canadian for laboratory equipment.
Compliance: UL Standard 61010-1
IEC 61010-1.
MODEL
MODEL
21-350
31-250
25.5x19.7x24
25.5x29.7x24
64x49.5x60
64x75.5x60
33x24x35.5
33x34x35.5
83x60x90
83x86x90
450 F/232 C
300 F/150 C
+/- 2.5 C
+/- 2.0 C
+/- 3.0 C
+/- 2.5 C
120/16*
115/8.75*
1920
1000
5-20P*
5-15P*
185
225
165
200
Interior:
Aluminized Steel (SS Op�onal)
Motor:
Sealed Ball Bearing
Heater:
Resis�ve Tubular Incoloy
Chicago, Illinois
Models 21 /31 /51
NOT FOR USE WITH FLAMMABLE
SOLVENTS OR GASES
MODEL
31-350
25.5x29.7x24
25.5x19.7x22.5
64x75.5x60
33x34x35.5
83x86x90
450 F/232 C
550 F/287 C
+/- 2.5 C
+/- 3.0 C
+/- 3.0 C
+/- 3.5 C
120/16*
1920
5-20P*
225
200
1-800-482-HEAT (4328)
MODEL
51-550
64x49.5x57
33x24x35.5
83x60x90
230/12.5
2850
6-20P
195
170
