3.2 Display

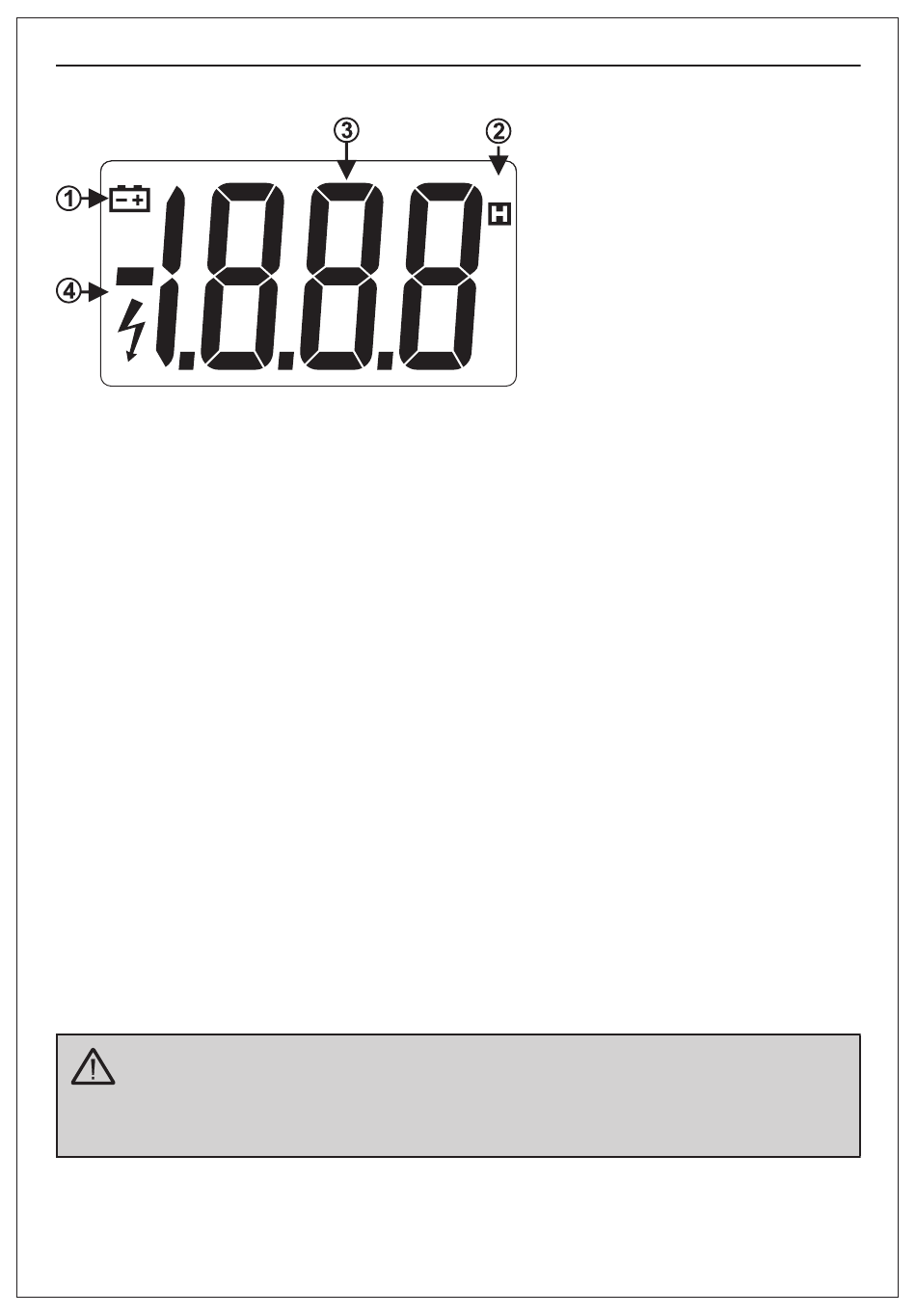

1. Low battery indicator

2. Data retention

3. Measurement screen
4. Polarity indicator
3.3 Use of the meter
3.3.1 Data retention
The data retention function will keep the current reading on the display.
• Press the "HOLD" button to keep the current reading. The "H" symbol will
appear on the display.
• Press the "HOLD" button to release the hold.

3.3.2 AC/DC voltage measurement

• Set the thumbwheel to the appropriate AC or DC voltage range.
• Connect the red test leads to the input terminal or the black test lead to the
COM terminal.
• Connect the test probes to the circuit being tested and read the measurement
on the display. Observe the polarity for DC measurements
WARNING
Do not measure voltages above 600V DC or AC RMS to avoid damage to the
multimeter or personal injury.
