EEI – 2120

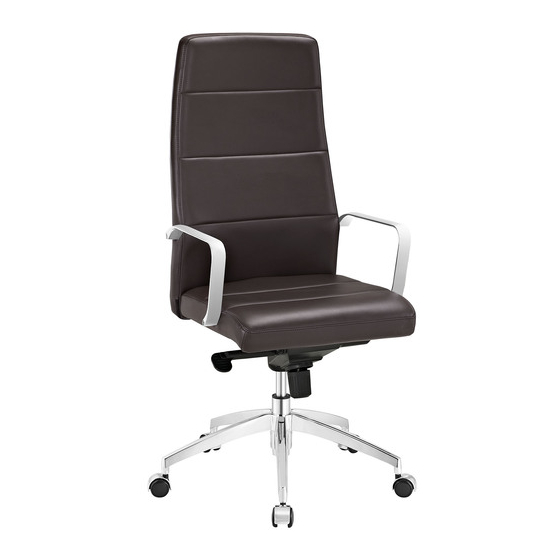

OFFICE CHAIR
Thank you for purchasing the MODWAY OFFICE CHAIR！
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the office chair, we recommend that it is assembled by two adults, on a carpeted
or padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of small children.
Component:
A
Chair Back
x1
E
Cylinder
x1
Customer Service 908-368-1025︱www.modwayfurniture.com
A
B
D
E
G
G
G
B
Armrest
x2
F
Chair Base
x1
Hardware:
1
2
3
4
5
6
7
8
Note: 1,2,3,5,6 assembled at the bottom of the chair back;
B
C
F
G
G
C
Chair Seat
x1
G
Caster
x5
Bolt M8x20mm
Bolt M8x25mm
Bolt M8x30mm
Bolt M8x50mm
Flat Washer
Plastic Washer
Allen Wrench M5
Allen Wrench M6
D
Control Mechanism
Page 1 of 4
x2
x2
x4
x4
x8
x2
x1
x1
x1
Advertisement
Table of Contents
Related Manuals for modway EEI-2120
Summary of Contents for modway EEI-2120
- Page 1 EEI – 2120 OFFICE CHAIR Thank you for purchasing the MODWAY OFFICE CHAIR！ Before you start, here is some helpful advice: 1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step instructions.
- Page 2 EEI – 2120 OFFICE CHAIR STEP 1: Please put Chair Base (F) upside down on a carpeted or padded surface. Insert 1pc of Castor (G) into the Chair Base (F) as shown by hand. Repeat the same steps for the remaining 4pcs of Castor (G). STEP 2: Flip the assembled Chair Base (F) with Castors (G) on the floor.
- Page 3 EEI – 2120 OFFICE CHAIR STEP 3: Place 2 pieces of Plastic Washer (6) to the two front holes on the bottom of the Chair Seat (C) as shown. Attach Control Mechanism (D) to the Chair Seat (C) by using 2 pieces of Bolt (1) and 2 pieces of Bolt (2) with 4 pieces of Flat Washer (5) as shown.
- Page 4 EEI – 2120 OFFICE CHAIR STEP 5: Attach Armrest (B) to the side of assembled Chair Back (A), Chair Seat (C) and Control Mechanism (D) by using 4 pieces of Bolt (4) as shown. Secure Bolts (4) by using Allen Wrench (8) clockwise until secure. 4x4pcs 8x1pc Hardware &...
