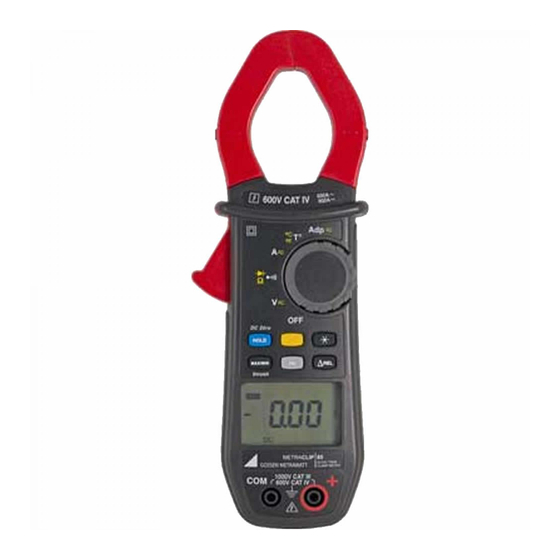

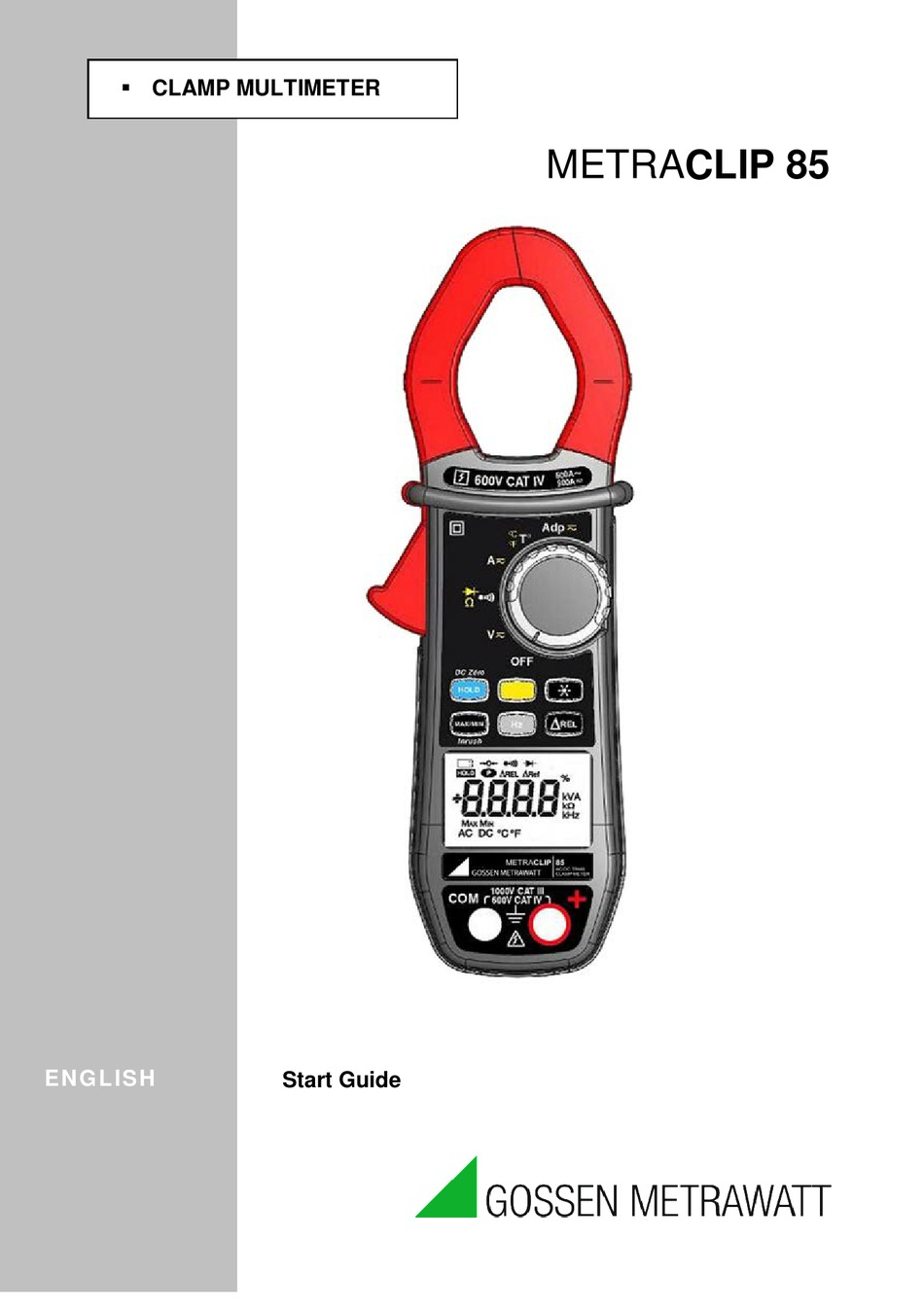

- Page 1 CLAMP MULTIMETER METRACLIP 85 ENG L ISH Start Guide...
- Page 2 Clamp Multimeter METRACLIP 85 English You have just acquired an METRACLIP 85 clamp multimeter and we thank you. For best results from your device : • read this user manual attentively, • observe the precautions for its use. Meanings of the symbols used on the device Danger.
- Page 3 English Clamp Multimeter METRACLIP 85 PRECAUTIONS FOR USE This device complies with safety standards IEC-61010-1 and 61010-2-032 for voltages of 1000V in category III or 600V in category IV at an altitude OF less than 2000m, indoors, with a degree of pollution not exceeding 2.
- Page 4 Clamp Multimeter METRACLIP 85 English MEASUREMENT CATEGORIES Definitions of the measurement categories : CAT II: Circuits directly connected to the low-voltage installation. Example: power supply to household electrical appliances and portable tools. CAT III: Power supply circuits in the installation of the building.
- Page 5 English Clamp Multimeter METRACLIP 85 THE SWITCH The switch has six positions. To access the , functions, set the switch to the desired function. Each setting is confirmed by an audible signal. The functions are described in the table below.
- Page 6 Clamp Multimeter METRACLIP 85 English DISPLAY Item Function Display of the modes selected (keys) Display of the measurement value and unit Display of the MAX/MIN modes Type of measurement (AC or DC) Display of the selected modes (switch) Spent battery indication 1.3.1...
- Page 7 English Clamp Multimeter METRACLIP 85 Milli- prefix Kilo- prefix Compensation of the resistance of the leads Continuity test Diode test Permanent display (automatic switching off de-activated) Spent battery indicator The O.L (Over Load) symbol is displayed when the display capacity is exceeded.
- Page 8 Clamp Multimeter METRACLIP 85 English 2 USE COMMISSIONING Insert the battery supplied with the device as follows: Using a screwdriver, unscrew the screw of the battery compartment cover (item 1) on the back of the housing and open it. Place the battery in the compartment (item 2), taking care to get the polarities right.
