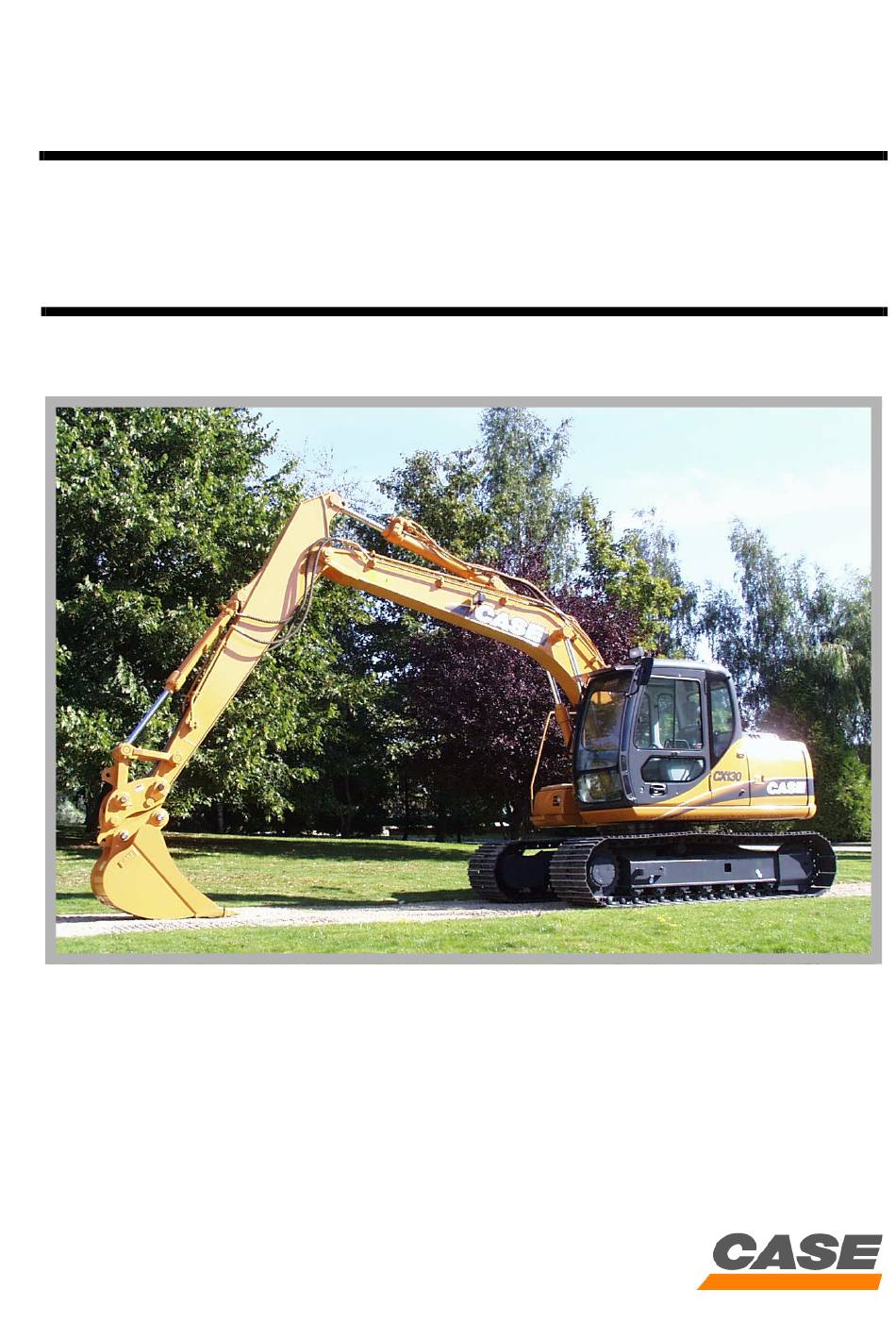

HYDRAULIC EXCAVATOR
CX130
CASE TRAINING CENTRE
AUGUST 2000

Advertisement

Table of Contents
loading

Related Manuals for Case CX130

Summary of Contents for Case CX130

  • Page 1 HYDRAULIC EXCAVATOR CX130 CASE TRAINING CENTRE AUGUST 2000...
  • Page 3 HYDRAULIC EXCAVATOR CX130 SECTION N°1 GENERALE INTRODUCTION CASE TRAINING CENTRE AUGUST 2000...
  • Page 4 CENTRE DE FORMATION CASE EDITION AOUT 2000...
  • Page 5 Check all shafts that have wear or damage. Check the bearing and oil seal surfaces of the shafts for damage. Service parts Always install genuine Case service parts. When ordering refer to the Parts Catalog for the correct part number of the genuine Case replacement items. Failures due to the use of other than genuine Case replacement parts are not covered by warranty.
  • Page 6 Operator’s WARNING: Read the operator’s manual to and Service Manuals may be obtained from familiarize yourself with the correct control your Case dealer. functions. WARNING: If you wear clothing that is too WARNING: Operate the machine and equip- loose or do not use the correct safety equip- ment controls from the seat position only.
  • Page 7 (approved goggles or other approved eye protectors). WARNING: Use suitable floor (service) jacks or chain hoist to raise wheels or tracks off the floor. Always block machine in place with suitable safety stands. CASE TRAINING CENTER 1 - 3 AUGUST 2000...
  • Page 8 Spanner [in.] 0.20 0.24 0.32 0.39 0.47 0.55 0.55 0.67 Socket Head Cap Screw [Nm] 21.6 42.1 78.4 117.6 176.4 245.0 343.0 Tightening torque [lb-ft] 15.9 31.1 57.8 86.8 130.1 180.8 253.1 CASE TRAINING CENTER 1 - 4 AUGUST 2000...
  • Page 9 TYPE, SERIAL NUMBER AND YEAR OF MANUFACTURE OF THE MACHINE When placing a parts order or making a request for information or assistance, always give you CASE Dealer the type and serial number of the machine concerned. Enter the required information on the lines below: Type, serial number, year of manufacture of the machine and the serial numbers of hydraulic and mechanical components.
  • Page 10 Extreme pressure grease EP NLGI grade 0. Engine oil CASE engine oil No. 1 is recommended for your engine. This oil ensures correct lubrication of your engine in all working conditions. If CASE No. 1 Multiperformance or Performance engine oil is not available, use oil corresponding to category API/ CG/CF.
  • Page 11 Oil viscosity/Oil range CS98M561 (A) FAHRENHEIT temperature (B) CELSIUS temperature (1) all-seasons (2) winter (3) tropical (4) Arctic (*) shows that an engine oil heater or engine coolant solution heater must be used. CASE TRAINING CENTER 1 - 7 AUGUST 2000...
  • Page 12 (kerosene), paint solvents, etc. Use only water, soap and a soft cloth. The use of petrol (gasoline), paraffin (kerosene), paint solvents, etc, will cause discoloration, cracking or deformation of these components. CASE TRAINING CENTER AUGUST 2000 1 - 8...
  • Page 13 GENERAL INFORMATION Engine ....... . . CX130 Make - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Isuzu...
  • Page 14 700 mm track pads- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 0.29 bar Weight Engine361 kg Hydraulic pump90 kg Attachment control valve140 kg Motor/reduction gear assembly99 kg travel motor/reduction gear assembly144 kg Boom cylinder108 kg Dipper cylinder157 kg Bucket cylinder93 kg CASE TRAINING CENTER 1 - 10 AUGUST 2000...
  • Page 15 88-107 19 * Hydraulic swivel 109-127 109-127 20 Cab 78-80 78-80 21 Battery 20-29 20-29 Nota: Use Loctite 262 or an equivalent on retaining screws of components marked with an asterisk (*). CASE TRAINING CENTER 1 - 11 AUGUST 2000...
  • Page 16 GENERAL INFORMATION 16 18 12 13 CS00E508 CS00E509 CS00E510 CASE TRAINING CENTER AUGUST 2000 1 - 12...
  • Page 17 GENERAL INFORMATION CS00E512 CS00E513 CX130 CS00E516 CS00E515 CS00E518 CS00E519 CS00E520 CX130 CASE TRAINING CENTER 1 - 13 AUGUST 2000...
  • Page 18 GENERAL INFORMATION MACHINE OVERALL DIMENSIONS Only on CX130 machines with 3 m dipper IMPORTANT: For CX130 machines with 3 m dipper, it is imperative that the dipper cylinder head/dipper Point B linkage is positioned at point B. Point A NOTE: Never work with the pin in this position.
  • Page 19 WARNING: The conditions of use for individual fluids and lubricants must be respected. Hydraulic fluid CASE hydraulic fluid is specially designed for high pressure applications and for the CASE hydraulic system. The type of fluid to be used depends on the ambient temperature. Temperate climates -20°C to +40°C...
  • Page 20 GENERAL INFORMATION Engine oil CASE N°1 motor oil is the oil recommended for your engine. This oil ensures correct lubrication of your engine in all working conditions. If CASE N°1 Multiperformance or Performance engine oil cannot be obtained, use only oil of the API/CG/CF cate- gory.
  • Page 21 GENERAL INFORMATION (A) Fahrenheit Temperature (B) Celsius Temperature (1) All seasons (2) Winter (3) Tropical (4) Arctic ) Use of an engine oil heater, or and engine coolant heater is required. CASE TRAINING CENTER 1 - 17 AUGUST 2000...
  • Page 22 Travel reduction gears 1000 (H) Suction filter 2000 5000 Return filter 2000 (F) Ultra clean filter 2000 Hydraulic fluid 10 000 Safety valves Cooling circuit Tracks Fuel tank filter Machine inspection Fire extinguisher CASE TRAINING CENTER 1 - 18 AUGUST 2000...
  • Page 23 GENERAL INFORMATION (A) Have this checked by your CASE Dealer every 600 hours or once a year. (B) Or when the central zone of the restriction indicator is red. (C) Or after cleaning 6 times. (D) Check after the first 50 hours during the run-in period.
  • Page 25 HYDRAULIC EXCAVATOR CX130 SECTION N°2 COMPONENTS LAYOUT CASE TRAINING CENTRE AUGUST 2000...
  • Page 26 CENTRE DE FORMATION CASE EDITION AOUT 2000...
  • Page 27 COMPONENTS LAYOUT CX130 TABLE OF CONTENTS Specifications GENERAL LAYOUT ..........2 ELECTRICAL COMPONENT LAYOUT OF THE UPPER CHASSIS .
  • Page 28 COMPONENTS LAYOUT CX130 General layout CONTROL VALVE HYDRAULIC RESERVOIR HYDRAULIC PUMP SOLENOID VALVE BLOCK ENGINE FUEL TANK COOLERS AIR FILTER CUSHION VALVE PILOT PRESSURE MANIFOLD SWING MOTOR AND SWING REDUCER REMOTE CONTROLS FOOT CONTROLS CASE TRAINING CENTER 2- 2 AUGUST 2000...
  • Page 29 COMPONENTS LAYOUT CX130 Turret electrical components Full View of Main Components Overload pressure sensor Work light Turret work light Boom light Windshield washer Horns motor Fuel tank filling pump Fuel level Rotating sender beacon Upper pressure switch Swing pilot Travel...
  • Page 30 COMPONENTS LAYOUT CX130 Cab electrical components Sprayer motor wiper Dome light Wiper arm Speaker Harness Antenna Harness Harness Harness Wiper washer hose Wiper motor controller Reservoir CASE TRAINING CENTER 2- 4 AUGUST 2000...
  • Page 31 COMPONENTS LAYOUT CX130 Cab controls Wipper motor controller Wipper motor Windshield switch Iddle switch Horn switch Instrument panel Gate lock lever Engine throttle knob Key switch Crusher/braker rocker switch Door switch A/C controls Overload switch Dome light A/C unit Cigar lighter...
  • Page 32 COMPONENTS LAYOUT CX130 Instrument panel Travel mode switch 2. Work mode switch 3. Auto mode switch 4. Buzzer stop switch 5. Swing brake switchr 6. Emergency shutdown switch 7. Hourmeter 8. Cushion switch 9. Rotating beacon switch 10. Work light switch 11.
  • Page 33 HYDRAULIC EXCAVATOR CX130 SECTION N°3 COMPONENTS CASE TRAINING CENTRE AUGUST 2000...
  • Page 34 CENTRE DE FORMATION CASE EDITION AOUT 2000...

  • Page 35: Table Of Contents

    COMPONENTS CX130 TABLE OF CONTENTS HAND REMOTE CONTROLS ........2 TRAVEL FOOT CONTROLS .

  • Page 36: Hand Remote Controls

    COMPONENTS CX130 Hand remote controls In neutral the hand control is a closed center hydraulic valve. The inlet oil from the pilot pump is blocked at all four regulator spools (27 ). The ports (1), (2), (3), (4) are ported inside of the valve back to tank through the notches in the regulator spool (27).
  • Page 37 COMPONENTS CX130 Hand remote control CASE TRAINING CENTER 3 - 3 AUGUST 2000...
  • Page 38 COMPONENTS CX130 Foot control In neutral the foot control is a closed center hydraulic valve. The inlet oil from the pilot pump is blocked at both regulator spools (17 ). The ports (1), (2), (3), (4) are ported inside of the valve back to tank through a hole drilled in the end, and a cross drilled hole in the regulator spool (17).
  • Page 39 COMPONENTS CX130 Foot control CASE TRAINING CENTER 3 - 5 AUGUST 2000...

  • Page 40: Auxiliary Foot Controls

    COMPONENTS CX130 Auxiliary foot control In neutral the auxiliary foot control is a closed center hydraulic valve. The inlet oil from the pilot pump is blocked at both regulator spools (12). The ports (1), (2), are ported inside of the valve back to tank through a hole drilled in the end, and a cross drilled hole in the regulator spool (12).
  • Page 41 COMPONENTS CX130 Auxiliary foot control CASE TRAINING CENTER 3 - 7 AUGUST 2000...

  • Page 42: Cushion Valve

    COMPONENTS CX130 Cushion valve Purpose of cushion valve There is a cushion control valve plumbed between the arm and boom hand control valve and the control valve. The cushion valve prevents the control spool from returning to neutral very rapidly. The pilot oil is metered as ist returns to the hand control vale.
  • Page 43 COMPONENTS CX130 TANK CONTROL VALVE CONTROL VALVE DIPPER BOOM CUSHION VALVE FILTER SOLENOID VALVE PILOTE PRESSURE PUMP CUSHION BUTTON BOOM CLOSED OPEN DOWN CASE TRAINING CENTER 3 - 9 AUGUST 2000...
  • Page 44 COMPONENTS CX130 Neutral position In neutral position of the remote control, the control valve spool ends are connected to the tank through the spool F, the central and cross drilled orifices of the spools E and the remote control valve.
  • Page 45 COMPONENTS CX130 Neutral position CASE TRAINING CENTER 3 - 11 AUGUST 2000...
  • Page 46 COMPONENTS CX130 Piloting The pilot pressure coming from the remote control enters the cushion valve in B and pushes the spool E and F. The pilot pressure goes freely to the control valve work spool end through D port.. The oil in the opposite end spool of the control valve return to the tank through the port C, and the opened return filter port T.
  • Page 47 COMPONENTS CX130 Piloting CASE TRAINING CENTER 3 - 13 AUGUST 2000...
  • Page 48 COMPONENTS CX130 Cushionning operation In Soft mode, the solenoid switch is off and the pilot pressure doesn't come from port "S". Thus, the cushion spool inside the cushion valve is still set as original position and has a restriction of pressure by orifice inside the spool rooms.
  • Page 49 COMPONENTS CX130 Cushionning operation CASE TRAINING CENTER 3 - 15 AUGUST 2000...
  • Page 50 COMPONENTS CX130 Cushion cancellation When arm opening and the lever is returned to neutral, pressurized oil from control valve (a pilot of arm opening) flows into port "D" of the cushion valve. Electric signal is sent to a controller with hard mode at this time and the controller sends the signal to a solenoid valve.
  • Page 51 COMPONENTS CX130 Cushion cancellation CASE TRAINING CENTER 3 - 17 AUGUST 2000...
  • Page 52 COMPONENTS CX130 Pump Port name Port size Discharge port SAE 6000 psi 3/4" 1, 2 Intake port SAE 2500 psi 2 1/2" Drain port G 3/8 Negative flow control pressure port G 1/4 Gauge port G 1/4 1, 2, 6, 7...
  • Page 53 COMPONENTS CX130 Pump CASE TRAINING CENTER 3 - 19 AUGUST 2000...
  • Page 54 COMPONENTS CX130 Pump (follow) CASE TRAINING CENTER AUGUST 2000 3 - 20...
  • Page 55 COMPONENTS CX130 Pump (follow) CASE TRAINING CENTER 3 - 21 AUGUST 2000...
  • Page 56 COMPONENTS CX130 Pump control block (follow) CASE TRAINING CENTER AUGUST 2000 3 - 22...
  • Page 57 COMPONENTS CX130 Pump control block) CASE TRAINING CENTER 3 - 23 AUGUST 2000...
  • Page 58 COMPONENTS CX130 Pump rotating group assembly (follow) CASE TRAINING CENTER AUGUST 2000 3 - 24...
  • Page 59 COMPONENTS CX130 Pump rotating group assembly (follow) CASE TRAINING CENTER 3 - 25 AUGUST 2000...

  • Page 60: Pilot Pressure Gear Pump

    COMPONENTS CX130 Pilot pressure pump CASE TRAINING CENTER AUGUST 2000 3 - 26...
  • Page 61 COMPONENTS CX130 Pilot pressure pump CASE TRAINING CENTER 3 - 27 AUGUST 2000...

  • Page 62: Proportional Solenoid Valve

    COMPONENTS CX130 Proportional solenoid valve CASE TRAINING CENTER AUGUST 2000 3 - 28...
  • Page 63 COMPONENTS CX130 Proportional solenoid valve CASE TRAINING CENTER 3 - 29 AUGUST 2000...

  • Page 64: Control Valve

    COMPONENTS CX130 Control valve Description Port Description Port Bucket closing Dual flow PO, OPT Bucket opening Return to tank R1, R2, R3 Boom lowering Negative flow control pressure FR, FL Boom up Travel pressure signal Left travel forward Upper pressure signal...
  • Page 65 COMPONENTS CX130 Control valve LEFT SIDE MOUNTING THREAD MAIN RELIEF VALVE BOOM ANTIDRIFT NEGATIVE FLOW CONTROL PRESSURE VALVE ARM IN REGENERATION VALVE ARM ANTI-DRIFT RIGHT SIDE SWING PRIORITY VARIABLE THROTTLE CASE TRAINING CENTER 3 - 31 AUGUST 2000...
  • Page 66 COMPONENTS CX130 Control valve (follow) ARM 1 AUX BOOM 2 SWING SPOOL COVER BOLT O-RING CONTROL VALVE LOAD CHECK VALVES ARM 1 SWING BOOM 2 AUXILIARY SWING PRIORITY O-RING VALVE LEFT END PLATE COVER TRAVEL REGENERATION VALVE PLUG PLUG BOLT...
  • Page 67 COMPONENTS CX130 Control valve (follow)) BOOM REGENERATION COVER CHECK VALVE BOLT END PLATE CHECK VALVE O-RING LOAD CHECK VALVES STRAIGHT TRAVEL SPOOL ARM SEMI- ARM 2 PARRALLEL SWITCH VALVE SPOOLS CONTROL VALVE O-RING BOOM 1 BUCKET BOLT NEGATIVE FLOW SPOOL COVER...

  • Page 68: Boom Safety Valve

    COMPONENTS CX130 Boom savety valve (H.B.C.V.) CASE TRAINING CENTER AUGUST 2000 3 - 34...
  • Page 69 COMPONENTS CX130 Dipper arm savety valve (H.B.C.V.) CASE TRAINING CENTER 3 - 35 AUGUST 2000...
  • Page 70 COMPONENTS CX130 Boom savety valve (H.B.C.V) Purpose: Two safety valves are fitted on the piston end of the boom cylinders. They avoid any uncontrollable boom down movement when a plumbing failure may occur on the piping between the piston end cylinder and the control valve.
  • Page 71 COMPONENTS CX130 CASE TRAINING CENTER 3 - 37 AUGUST 2000...

  • Page 72: Dipper Arm Safety Valve

    3C groove. Leak specification P2 to P1+ T1 < 4cc / mn at 9,81Mpa with oil temperature at 50°C Valve de sécurité de vérin de balancier de CX130 CASE TRAINING CENTER AUGUST 2000...
  • Page 73 COMPONENTS CX130 CASE TRAINING CENTER 3 - 39 AUGUST 2000...

  • Page 74: Dual Flow Valve

    COMPONENTS CX130 Dual flow valve CASE TRAINING CENTER AUGUST 2000 3 - 40...
  • Page 75 COMPONENTS CX130 Dual flow valve CASE TRAINING CENTER 3 - 41 AUGUST 2000...

  • Page 76: Swing Motor

    COMPONENTS CX130 Swing motor CASE TRAINING CENTER AUGUST 2000 3 - 42...
  • Page 77 COMPONENTS CX130 Swing motor CASE TRAINING CENTER 3 - 43 AUGUST 2000...
  • Page 78 COMPONENTS CX130 Travel motor CASE TRAINING CENTER AUGUST 2000 3 - 44...
  • Page 79 COMPONENTS CX130 Travel motor CASE TRAINING CENTER 3 - 45 AUGUST 2000...
  • Page 80 COMPONENTS CX130 Travel motor (follow) CASE TRAINING CENTER AUGUST 2000 3 - 46...
  • Page 81 COMPONENTS CX130 Travel motor (follow) CASE TRAINING CENTER 3 - 47 AUGUST 2000...

  • Page 82: Swivel Joint

    COMPONENTS CX130 Swivel joint CASE TRAINING CENTER AUGUST 2000 3 - 48...
  • Page 83 COMPONENTS CX130 Swivel joint CASE TRAINING CENTER 3 - 49 AUGUST 2000...

  • Page 84: Flow Restrictor

    COMPONENTS CX130 Flow restrictor CASE TRAINING CENTER AUGUST 2000 3 - 50...

  • Page 85: Boom Cylinder

    COMPONENTS CX130 Boom cylinder CASE TRAINING CENTER 3 - 51 AUGUST 2000...

  • Page 86: Solenoid Valve Block

    COMPONENTS CX130 Solenoid valve block Swing lock Power boost Travel speed (high) Cushion cancelation Swing brake Pilot pressure CASE TRAINING CENTER AUGUST 2000 3 - 52...
  • Page 87 HYDRAULIC EXCAVATOR CX130 SECTION N°4 DIAGNOSTIC - MODEL SELECTION CASE TRAINING CENTRE AUGUST 2000...
  • Page 88 CENTRE DE FORMATION CASE EDITION AOUT 2000...
  • Page 89 To detect overloads on the electrical circuit, press the travel speed switch G. To detect short-circuits, operate the return to idle switch and the starter motor switch simultaneously, but do not start the engine CASE TRAINING CENTER 4 - 1 AUGUST 2000...
  • Page 90 0000 TR2 show an overload on the swing brake and battery relay circuit. 0100 0000 NOTE: In diagnostic mode, if an error code is changed to zero, the data is also erased. CASE TRAINING CENTER 4 - 2 AUGUST 2000...
  • Page 91 SW2 0 0 0 0 SW3 0 0 0 0 Pilot pressure Engine oil pressure Battery charge Travel pilot pressure Coolant solution level Swing pilot pressure Safety valve pressure Hammer pilot pressure CASE TRAINING CENTER 4 - 3 AUGUST 2000...
  • Page 92 Boom cylinder pressure 0005 0000 SP1 and SP2: Not used 0010 0000 0 0 0 4 1: below 30°C 2: between 30°C and 45°C 3: between 45°C and 65°C 4: between 65°C and 75°C CASE TRAINING CENTER 4 - 4 AUGUST 2000...
  • Page 93 0000 0032 0000 0016 0000 0000 0000 Example: The screen above shows that there is a defect in the electronic regulator rack position detector (0032) and in the fuel temperature sender (0016). CASE TRAINING CENTER 4 - 5 AUGUST 2000...
  • Page 94 M0090: CAN communication circuit M00A0: Electronic control box re-initialisation M00B0: Engine electronic control box M00C0: Boom cylinder pressure Example: The screen above shows a failure in the hydraulic oil temperature sender (0020). CASE TRAINING CENTER 4 - 6 AUGUST 2000...
  • Page 95 B. To erase the failure codes and the number of hours, press the work mode switch for 10 seconds. C. When data is erased from screens DIAG5 and DIAG6. it is recorded in the electronic control box memory (this data is only visible using an external computer). CASE TRAINING CENTER 4 - 7 AUGUST 2000...
  • Page 96 0000 0000 (25 MPa) Between 250 bar (25 MPa) and 300 bar 0000 0000 (30 MPa) Between 300 bar (30 MPa) and 350 bar (35 MPa) 350 bar (35 MPa) or above CASE TRAINING CENTER 4 - 8 AUGUST 2000...
  • Page 97 45°C to 60°C (3rd bar) 60°C to 80°C (4th bar) 80°C to 88°C (5th bar) 0000 0000 88°C to 95°C (6th bar) 95°C to 98°C (7th bar) 0000 0000 98°C or higher (8th bar) 0000 0000 CASE TRAINING CENTER 4 - 9 AUGUST 2000...
  • Page 98 70% to 80% 0000 0000 80% or higher 0000 0000 To erase all data from the machine history mode (screens HR1 to HR12), press the work mode switch for 10 seconds or more. CASE TRAINING CENTER 4 - 10 AUGUST 2000...
  • Page 99 D. Turn the starter key switch to the OFF position. 0000 0000 E. Check the engine speed on screen CHK1. Example: In the above screen, the engine speed for the hammer option is set at 1800 rpm. CASE TRAINING CENTER 4 - 11 AUGUST 2000...
  • Page 100 C. To save the selection, press the work mode switch for 10 seconds. The audible warning device sounds when saving is completed. D. Turn the starter key switch to the OFF position. CASE TRAINING CENTER 4 - 12 AUGUST 2000...
  • Page 101 C. To save the settings, press the work mode switch for 10 seconds. The audible warning device sounds when saving is completed. D. Turn the starter key switch to the OFF position. CASE TRAINING CENTER 4 - 13 AUGUST 2000...
  • Page 102 This message shows that there is a defect in the electrical system. Shut down ELEC. PROBLEM the engine, remove the starter switch key, then find the reason for the problem. CASE TRAINING CENTER 4 - 14 AUGUST 2000...
  • Page 103 DIAGNOSTIC - SELECTION CASE TRAINING CENTER 4 - 15 AUGUST 2000...
  • Page 104 CONT. P / N KHR2669 MACHINE : SH0120- 3 Example: TERRITORY : LANGUAGE : ? The screen above corresponds to a CX130 model excavator for Europe in French. CONT. P / N KHR2669 CASE TRAINING CENTER 4 - 16 AUGUST 2000...
  • Page 105 - If the machine code is wrong, start the procedure again from the beginning. - If the engine electronic control box installed is not correct, change it. CASE TRAINING CENTER 4 - 17 AUGUST 2000...
  • Page 106 Turn the starter key switch to OFF. CONT. P / N KHR2669 Example: In the screen opposite, the language code has changed from 5 (French) to 1 (English). CASE TRAINING CENTER 4 - 18 AUGUST 2000...
  • Page 107 Your CASE Dealer can do this for you. Once this operation has been performed, a special access code has to be entered each time you start the engine.
  • Page 108 (2) to proceed to the second digit. Press the button (1) same number of times as the second digit (e.g. twice) and then press button (2) to proceed to the third digit. Repeat the procedure for the third and fourth digits. CASE TRAINING CENTER 4 - 20 AUGUST 2000...
  • Page 109 3. Turn the starter key switch to ON and then OFF. 4. Reconnect the two wires (A) (B) covering the anti-theft system (see paragraph 2). 5. To save the new access code, consult the anti-theft protection section in the operator’s manual. CASE TRAINING CENTER 4 - 21 AUGUST 2000...
  • Page 110 21. Check the alternator voltage (with engine speed above the throttle 27.5-29.5 V Change control mid-point) (when battery charge is insufficient, there can be 25 V only at start up) 22. Noise from battery relay (with starter motor ON or OFF) Change CASE TRAINING CENTER 4 - 22 AUGUST 2000...
  • Page 111 Grey Orange BR indicates colour B striped with R. Example: BR indicates a black wire with red stripes IMPORTANT: Before removing or installing a connector, always turn the ignition key to OFF. CASE TRAINING CENTER 4 - 23 AUGUST 2000...
  • Page 112 Description of the problem Problem No. The engine does "ELEC. PROBLEM" is shown on the monitor. not start. 3. Problem without message. Description of the problem Problem No. Impossible to change travel speed CASE TRAINING CENTER 4 - 24 AUGUST 2000...
  • Page 113 Note: All the bar graph indicators have disappeared when the circuit is open Resistance between GL and BG Monitor 1. Refill the tank Resistance (OHM) 80-75 75-61 61-47 47-37 37-30 30-24 24-19 19-10 CASE TRAINING CENTER 4 - 25 AUGUST 2000...
  • Page 114 CN24 Short-circuit on Disconnect the connector CN4 wire GrG Repair wire to see if the message between CN24 disappears and CN4 Change the Main electronic main control box electronic defective control box CASE TRAINING CENTER 4 - 26 AUGUST 2000...
  • Page 115 CN24 Short-circuit on Disconnect connector CN4 to wire LgY Repair wire see if the message disappears between CN24 and CN4 Change the Main electronic main control box electronic defective control box CASE TRAINING CENTER 4 - 27 AUGUST 2000...
  • Page 116 1. Make sure that 8 bars are displayed on the hydraulic oil and engine coolant temperature gauge bar-graphs. CM00F004 1. Main electronic control box 2. Engine electronic control box 3. Engine coolant temperature sender 4. Hydraulic oil temperature sender CASE TRAINING CENTER 4 - 28 AUGUST 2000...
  • Page 117 CN7 connecting and CNAO terminals on connections CN7 and CNAO Note: In the event of a short-circuit, the bar-graph disappears completely. CASE TRAINING CENTER 4 - 29 AUGUST 2000...
  • Page 118 Change the Electronic electronic control box control box defective or or clean the connecting connection terminals on on CN1 Note: In the event of a short-circuit, the bar-graph disappears completely. CASE TRAINING CENTER 4 - 30 AUGUST 2000...
  • Page 119 2.45 k9 30°C 4.24 k9 1.66 k9 40°C 3.02 k9 1.15 k9 50°C 2.18 k9 0.81 k9 60°C 1.61 k9 0.58 k9 70°C 1.20 k9 0.43 k9 80°C 0.91 k9 0.32 k9 CASE TRAINING CENTER 4 - 31 AUGUST 2000...
  • Page 120 Battery charge circuit defective Description of problem No. 5 - The message is still displayed. CM00F005 1. Main electronic control box 2. Hourmeter 3. Battery relay 4. Alternator 5. Starter motor 6. Starter motor switch CASE TRAINING CENTER 4 - 32 AUGUST 2000...
  • Page 121 10 V and the alternator and the alternator Short-circuit on Repair wire wire LgR540 LgR540 or chang between the the starting motor starting motor switch switch and CN22 or starting motor switch defective CASE TRAINING CENTER 4 - 33 AUGUST 2000...
  • Page 122 - The message is still displayed CS00F528 1. Main electronic control box 2. Engine electronic control box 3. Engine 4. Electronic regulator 5. Engine speed detector 6. Proportioning valve 7. Battery relay CASE TRAINING CENTER 4 - 34 AUGUST 2000...
  • Page 123 8. Fuse 9. Shock absorbing solenoid valve 10. Swing cancellation solenoid valve 11. Function locking solenoid valve 12. Swing brake solenoid valve 13. Travel 2nd speed solenoid valve 14. Power boost solenoid valve CASE TRAINING CENTER 4 - 35 AUGUST 2000...
  • Page 124 Repair the wiring CN23 and CN6 The failure code disappears after disconnecting connector Short circuit on wire between Repair the wiring CN22 and CN5 Change the Electronic control box defective electronic control CASE TRAINING CENTER 4 - 36 AUGUST 2000...
  • Page 125 3- Make sure that the starter motor is working and turning the engine. CM00F006 1. Fuse 5. Stop position 2. Emergency stop switch 6. Start position 3. Emergency stop relay 7. Cab end 4. Emergency stop motor 8. Service connector end CASE TRAINING CENTER 4 - 37 AUGUST 2000...
  • Page 126 Change the between the by replacing it emergency emergency temporarily by one of stop relay or stop relay the relays from the repair wire L and wire L other functions CASE TRAINING CENTER 4 - 38 AUGUST 2000...
  • Page 127 Voltage under 5 V, at input to Change the electronic control one of the detectors Voltage equal to 5 V, at input to Change the faulty detector one of the detectors CASE TRAINING CENTER 4 - 39 AUGUST 2000...
  • Page 128 (CN1 terminal 6 and 13) is defective Voltage below 5 V, at sender Change the electronic control input Voltage equal to 5 V, at sender Change the oil temperature input sender CASE TRAINING CENTER 4 - 40 AUGUST 2000...
  • Page 129 2. For harness end of engine emergency stop motor (6P) BS98F229 6. For harness end of pressure switch BS98F226 3. For solenoid valve and fuel gauge BS98F230 7. For air conditioning evaporator (2P) CASE TRAINING CENTER 4 - 41 AUGUST 2000...
  • Page 130 DIAGNOSTIC - SELECTION CS00E531 8. For hydraulic oil temperature and engine coolant temp senders CS00E530 9. For engine speed detector CS00E532 10. For pressure detector CASE TRAINING CENTER 4 - 42 AUGUST 2000...
  • Page 131 100 or CX130 less 50 or CX210 less CD00F022 1. Disconnect the proportioning valve connector (A) from the hydraulic pump. CS00E534 A. To hydraulic pump B. To main harness C. Meter CASE TRAINING CENTER 4 - 43 AUGUST 2000...
  • Page 132 4. Turn the starter switch key to "ON", the meter reading should be 24 V. CS00E535 1. Disconnect connector from engine emergency stop motor (B). CS99A846 2. Connect the appropriate service connector (6P) to the connector at the main harness end only. CASE TRAINING CENTER 4 - 44 AUGUST 2000...
  • Page 133 1. Disconnect connector (A) from one of the solenoids on the 6 solenoid valve block (B) CD00F023 Ring Marking Function colour Swing pilot cancellation Green Power boost Yellow 2nd travel speed Shock absorption Light green Swing brake Pink Pilot pressure Blue CASE TRAINING CENTER 4 - 45 AUGUST 2000...
  • Page 134 2. Connect the appropriate service connector (2P) to the connector on the disconnected solenoid only and install the meter. 3. When the connection has been made, the solenoid resistance reading should be 45 9 at 20°C. NOTE: The resistance value varies with temperature. CASE TRAINING CENTER 4 - 46 AUGUST 2000...
  • Page 135 DIAGNOSTIC - SELECTION Engine speed detector CX130 CD00F024 CX210 CD00F025 1. Disconnect connector (A) from the engine speed detector. CASE TRAINING CENTER 4 - 47 AUGUST 2000...
  • Page 136 2. Connect the appropriate service connector (2P) to the connector on the speed detector only and install the meter. 3. When the connection has been made, the speed detector resistance should be 0.7 k9 at 25°C. NOTE: The resistance value varies with temperature. CASE TRAINING CENTER 4 - 48 AUGUST 2000...
  • Page 137 DIAGNOSTIC - SELECTION Engine coolant and hydraulic oil temperature senders CX130 CD00F026 CX210 CD00F027 CX130/CX210 CD00F028 A. Coolant temperature sender B. Oil temperature sender CASE TRAINING CENTER 4 - 49 AUGUST 2000...
  • Page 138 1.15 k 9 40°C 2.18 k 9 0.81 k 9 50°C 1.61 k 9 0.58 k 9 60°C 1.20 k 9 0.43 k 9 70°C 0.91 k 9 0.32 k 9 80°C CASE TRAINING CENTER 4 - 50 AUGUST 2000...
  • Page 139 DIAGNOSTIC - SELECTION Pressure sender CX130 CD00E145 CX210 CD00E146 P1. Pressure detector P1 P2. Pressure detector P2 Pump regulating pressure detector 1. Disconnect the pressure detector connector from the hydraulic pump. CASE TRAINING CENTER 4 - 51 AUGUST 2000...
  • Page 140 3. When the connection has been made, start the engine and check the voltages in accordance with the pressures. Pressure detectors P1 and P2 Pressure (MPa) Voltage (V) 43.7 37.5 17.5 Pressure detector N Pressure (MPa) Voltage (V) 4.37 3.75 2.50 1.25 CASE TRAINING CENTER 4 - 52 AUGUST 2000...
  • Page 141 HYDRAULIC EXCAVATOR CX130 SECTION N°5 ELECTRICAL CASE TRAINING CENTRE AUGUST 2000...
  • Page 142 CENTRE DE FORMATION CASE EDITION AOUT 2000...
  • Page 143 CENTRE DE FORMATION CASE EDITION AOUT 2000...
  • Page 144 ELECTRIC CIRCUIT General location of components (outside the cab) Model CX130 CM00E003 CASE TRAINING CENTER 5 - 1 AUGUST 2000...
  • Page 145 33. Main protective fuse for circuit F2 34. Main protective fuse for circuit F1 35. Batteries 36. Coolant solution level 37. Air conditioning compressor magnetic clutch contact switch 38. Swing pilot pressure switch CASE TRAINING CENTER 5 - 2 AUGUST 2000...
  • Page 146 ELECTRIC CIRCUIT Model CX210 CM00E004 CASE TRAINING CENTER 5 - 3 AUGUST 2000...
  • Page 147 33. Main protective fuse for circuit F2 34. Main protective fuse for circuit F1 35. Batteries 36. Coolant solution level 37. Air conditioning compressor magnetic clutch contact switch 38. Swing pilot pressure CASE TRAINING CENTER 5 - 4 AUGUST 2000...
  • Page 148 ELECTRIC CIRCUIT Relays and main fuses (battery compartment) Model CX130 CI00E501 CASE TRAINING CENTER 5 - 5 AUGUST 2000...
  • Page 149 2. Fuse 65A: protection of circuits F3 to F10 and F13 to F20A 3. Fuse 20A: protection of circuits F11 and F12 (before contact) 4. Fuse 20A: protection of circuits F1 5. Fuse 20A: protection of circuits F2 6. Battery cables CASE TRAINING CENTER 5 - 6 AUGUST 2000...
  • Page 150 ELECTRIC CIRCUIT General location of components (inside the cab) 26 25 10 11 12 13 14 CM00E002 CASE TRAINING CENTER 5 - 7 AUGUST 2000...
  • Page 151 20. Starting contact switch 21. Throttle control 22. Instrument panel 23. Engine idle control 24. Windshield contact switch 25. Windshield wiper motor electronic control box 26. Windshield wiper motor 27. Cab interior lighting CASE TRAINING CENTER 5 - 8 AUGUST 2000...
  • Page 152 Working light (not used) F17 Fuse 10A: DC converter (24 V - 12 V) F18 Fuse 15A: Windshield wiper and washer F19 Fuse 10A: Horn F20 Fuse 15A: Cigar lighter and cab seat CASE TRAINING CENTER 5 - 9 AUGUST 2000...
  • Page 153 12. Windshield washer switch 13. Control screen CS00F521 14. Travel speed indicator 15. Working mode indicator 16. Idle mode indicator 17. Water temperature indicator 18. Hydraulic oil temperature indicator 19. Fuel level indicator CASE TRAINING CENTER 5 - 10 AUGUST 2000...
  • Page 154 12. Engine 5. Main electronic control box 13. Rack detector 6. Engine electronic control box 14. Control circuit 7. Electronic acceleration 15. Cancellation circuit 8. Engine speed detector 16. Electronic acceleration circuit CASE TRAINING CENTER 5 - 11 AUGUST 2000...
  • Page 155 4. If the emergency mode is activated when an electronic acceleration assistance error occurs, the engine operates in emergency mode (See "Emergency Mode" Section). CASE TRAINING CENTER 5 - 12 AUGUST 2000...
  • Page 156 1. Working mode switch 2. Automatic mode switch 3. Instrument panel 4. Main electronic control box 5. Proportioning valve 6. Engine electronic control box 7. Electronic acceleration 8. Engine 9. SERIES communication CASE TRAINING CENTER 5 - 13 AUGUST 2000...
  • Page 157 5. The main electronic control box (4) transmits the new data to the display screen (LCD) via series communications. CASE TRAINING CENTER 5 - 14...
  • Page 158 4. If the engine coolant solution temperature is too low, or the voltage arriving at the engine electronic control box is too low, the idle speed increases to prevent the engine becoming too cool or the battery being discharged. CASE TRAINING CENTER 5 - 15...
  • Page 159 Current (equal to S mode + 40 mA) Hydraulic power boost Automatic Automatic Number of engine revolutions (MAX) 1850±10 1700±10 LA mode Current (equal to S mode) Hydraulic power boost Automatic Automatic CASE TRAINING CENTER 5 - 16 AUGUST 2000...
  • Page 160 6. If the number of engine revolutions has become less than the number of revolutions resulting from the torque set by the throttle control, the value of current delivered by the proportioning valve (2) becomes that of mode "L". CASE TRAINING CENTER 5 - 17...
  • Page 161 ELECTRIC CIRCUIT 3) Relation between the throttle control and the number of engine revolutions Throttle control (%) Mode H Mode S Mode L Throttle control (%) CASE TRAINING CENTER 5 - 18 AUGUST 2000...
  • Page 162 (3). 6. When automatic or manual idle mode is on, the "ENG. IDLING" message appears on the control screen (LCD). CASE TRAINING CENTER 5 - 19...
  • Page 163 When the hammer pressure switch (2) is on, the value of current delivered by the proportioning valve (4) becomes that of mode "S". 3) Time diagram (5V) Hammer/grab switch (0V) Hammer pilot (5V) pressure (0V) switch Engine speed Pre-set hammer speed Throttle control lower than pre-set hammer speed CASE TRAINING CENTER 5 - 20 AUGUST 2000...
  • Page 164 (LCD) only if the pre-heating time exceeds 3 seconds (engine coolant solution temperature below -5°C). NOTE: When the ignition is switched on, the "CASE" logo appears on the control screen (LCD) for 3 seconds. CASE TRAINING CENTER...
  • Page 165 ELECTRIC CIRCUIT 3) Figure showing pre-heating time (Tp) and after pre-heat (Ta) Engine coolant solution temperature (°C) Engine coolant solution temperature (°C) CASE TRAINING CENTER 5 - 22 AUGUST 2000...
  • Page 166 Time calculation Time calculation Water temp. after pre-heat pre-heat temp. Calculated time Calculated time Glow-plug on Glow-plug on Signal active Elapsed time Elapsed time Glow-plug Glow-plug Signal deactivated activated for deactivated Glow-plug deactivated CASE TRAINING CENTER 5 - 23 AUGUST 2000...
  • Page 167 Pre-heat glow-plug 3 sec. Control screen Pre-heat CASE logo A. Pre-heating time Tp D. Time after pre-heat Ta B. 2 seconds of additional pre-heat C. Pre-heating time when engine is being started CASE TRAINING CENTER 5 - 24 AUGUST 2000...
  • Page 168 4. If one of the above conditions is not present, the automatic engine warm-up does not operate. To perform the engine warm-up again, the engine has to be shut down and re-started. 5. When automatic engine warm-up is operating, "AUTO WARM UP" is displayed on the control screen (LCD). CASE TRAINING CENTER 5 - 25 AUGUST 2000...
  • Page 169 3) Diagram showing times Engine speed (rpm) 1800 1500 1200 Floating engine throttle control Warm-up time in minutes Engine speed (rpm) 1800 Floating 1500 engine throttle control 1200 Warm-up time in minutes CASE TRAINING CENTER 5 - 26 AUGUST 2000...
  • Page 170 Adjusting the speed in accordance with battery voltage 1200 (1300) 1100 (1200) 1000 (1100) (1000) (900) (800) Voltage supplied to the engine electronic control box (volt) NOTE: Numbers in brackets () show values for the CX130. CASE TRAINING CENTER 5 - 27 AUGUST 2000...
  • Page 171 Adjusting the idle speed in accordance with the coolant solution temperature 1200 (1300) 1100 (1200) 1000 (1100) (1000) (900) (800) Coolant solution temperature (°C) NOTE: Numbers in brackets () show values for the CX130. CASE TRAINING CENTER 5 - 28 AUGUST 2000...
  • Page 172 5. The emergency stop status is maintained even after the ignition switch is turned off. To deactivate the emergency stop, the emergency stop switch has to be pressed again, with the LED off. CASE TRAINING CENTER 5 - 29 AUGUST 2000...
  • Page 173 ELECTRIC CIRCUIT 3) Timing diagram 24 V Supply Emergency stop switch OUT1/IN1 Emergency stop relay Emergency stop motor OUT2 CASE TRAINING CENTER 5 - 30 AUGUST 2000...
  • Page 174 Variation in engine speed ³ 500 rpm for 1 second Variation in engine speed ³ 1000 rpm for 1 second Variation in engine speed < 500 rpm for 10 seconds Variation in engine speed < 1000 rpm for 10 seconds CASE TRAINING CENTER 5 - 31 AUGUST 2000...
  • Page 175 In emergency mode, the engine speed is controlled only by the engine throttle control. Control by the Engine throttle control (%) engine throttle control is different from control under normal conditions. CASE TRAINING CENTER 5 - 32 AUGUST 2000...
  • Page 176 When the engine is started and the control cancellation lever is in the work position, the pilot pressure solenoid valve is activated. When the pilot pressure solenoid valve is activated, the pilot pressure is supplied to the pilot systems and the machine is ready to operate. CASE TRAINING CENTER 5 - 33 AUGUST 2000...
  • Page 177 P1/P2 (2 and 3). When the travel (4) or option (5) pressure switch is activated, the main electronic control box deactivates the power boost solenoid valve. CASE TRAINING CENTER 5 - 34 AUGUST 2000...
  • Page 178 While the swing is locked, the transistor OUT 2 output is activated and the swing brake (10) is locked. The swing brake remains in the previous state even when the ignition is switched off. CASE TRAINING CENTER 5 - 35...
  • Page 179 - The starter switch (3) is in the = OFF position. When the pressure supplied by the pump (P1 or P2) exceeds 150 bar (15 MPa) during one single travel, the mechanical swing brake is deactivated for 5 seconds, then reactivated. CASE TRAINING CENTER 5 - 36 AUGUST 2000...
  • Page 180 4. Pressure detector P1 5. Pressure detector P2 6. Pump regulating pressure detector (N) 7. Travel pilot pressure switch 8. Travel 2nd speed solenoid valve 2) Timing diagram Supply 24 V Travel speed switch Speed CASE TRAINING CENTER 5 - 37 AUGUST 2000...
  • Page 181 (1st speed). 4. Travel speed II can be forced (for cleaning tracks) by holding the speed control switch pressed for over 2 seconds (IN1 = 0 volt). CASE TRAINING CENTER 5 - 38 AUGUST 2000...
  • Page 182 PN < 7 bar CX130 1950 RPM CX210 1800 RPM Actuel RPM < target RPM P1 < 30 bar P1 < 40 bar P2 < 30 bar P2 < 40 bar solenoid Solenoid desactivated activated CASE TRAINING CENTER 5 - 39 AUGUST 2000...
  • Page 183 24 V box supply (IN1) Start engine (IN2) 24 V 0.5 sec 3 sec 0.5 sec 3 sec Batter relay coil excited ON (24 V) (OUT) OFF (0 V) Supply to battery relay CASE TRAINING CENTER 5 - 40 AUGUST 2000...
  • Page 184 “ELEC. PROBLEM” appears on the instrument panel control screen. Use the diagnostic mode to locate the short-circuit. Check the wiring and the components of the affected circuit. CASE TRAINING CENTER 5 - 41 AUGUST 2000...
  • Page 185 CAN connection (8). C. The main electronic control box (2) calculates the number of bars to display and transmits the information to the water temperature gauge (6) via the series connection (7). CASE TRAINING CENTER 5 - 42 AUGUST 2000...
  • Page 186 (4) via the series connection (5). C. When the 8th bar is displayed on the hydraulic oil temperature gauge, the message “OVER HEAT” appears on the instrument panel control screen (1) and the audible warning device sounds. CASE TRAINING CENTER 5 - 43 AUGUST 2000...
  • Page 187 (4) via the series connection (5). C. When only one bar is displayed on the fuel level gauge (4), the message “LOW FUEL” appears on the instrument panel control screen (1) and the audible warning device sounds. CASE TRAINING CENTER 5 - 44 AUGUST 2000...
  • Page 188 9. Throttle control 10. Starter motor switch 11. CAN connection 12. Detector and sender information input 13. Engine speed signal 14. Rack position detector signal 15. Rack control signal 16. Engine speed detector signal CASE TRAINING CENTER 5 - 45 AUGUST 2000...
  • Page 189 (17) control section (19). E. The control section (19) sends a signal to the regulator (7) linear motor (17) to actuate the fuel injection pump (5) rack control (18). CASE TRAINING CENTER 5 - 46 AUGUST 2000...
  • Page 191 HYDRAULIC EXCAVATOR CX130 SECTION N°6 HYDRAULIC CIRCUIT CASE TRAINING CENTRE AUGUST 2000...
  • Page 192 CENTRE DE FORMATION CASE EDITION AOUT 2000...
  • Page 193 CENTRE DE FORMATION CASE EDITION AOUT 2000...
  • Page 194 D ports of the left and right travel motors. The original pressure (3.9 MPa) entered the D ports of the left and right travel motors positions the inclination angle of the travel motor to smaller inclination side, and make the speed faster. CASE TRAINING CENTER 6 - 1 AUGUST 2000...
  • Page 195 JAUNE ROSE ANNULATION ANNULATION ROTATION AMORTISSEMENT VERT VERT CLAIR 5a31 5a32 5b31 5b32 4b22 Ø2.5 4b21 Ø2.5 TRANSLATION (G) TRANSLATION (D) ARRIERE SELECTEUR ARRIERE AVANT AVANT DE VITESSE CONTROLEUR MODE DE TRAVAIL CASE TRAINING CENTER 6 - 2 AUGUST 2000...
  • Page 196 By these flows, the machine travels forward and backward. The 2 speed travel solenoid valve is turned OFF, the hydraulic oil in D port of the travel motor is connected to the tank line. CASE TRAINING CENTER 6 - 3 AUGUST 2000...
  • Page 197 JAUNE ROSE ANNULATION ANNULATION ROTATION AMORTISSEMENT VERT VERT CLAIR 5a31 5a32 5b31 5b32 4b22 Ø2.5 4b21 Ø2.5 TRANSLATION (G) TRANSLATION (D) ARRIERE SELECTEUR ARRIERE AVANT AVANT DE VITESSE CONTROLEUR MODE DE TRAVAIL CASE TRAINING CENTER 6 - 4 AUGUST 2000...
  • Page 198 Straight Travel Circuit This section describes the case where travel and boom-up operations are conducted at the same time. The hydraulic oil entered the pilot pump from Ps1, which is connected to the tank via travel spool, is shut off by changing over of the travel spool.
  • Page 199 AVANT AVANT COMMANDE PRESSION 2 eme VITESSE PILOTAGE ROUGE BLEU SURTARAGE FREIN ROTATION JAUNE ROSE ANNULATION ANNULATION ROTATION AMORTISSEMENT VERT VERT CLAIR SELECTEUR MODE DE TRAVAIL CONTROLEUR 1 , 2 DE VITESSE CASE TRAINING CENTER 6 - 6 AUGUST 2000...
  • Page 200 A1 or A2 (MPa) Swing pressure Swing brake Swing motor Key switch pressure on switch solenoid valve mechanical brake pressure sensor 0 or swing operation pressure 14.7 MPa or more CASE TRAINING CENTER 6 - 7 AUGUST 2000...
  • Page 201 JAUNE ROSE ON 0.5 MPa 0.098 MPa 72.6 psi 13 psi 5 bar 0.9 bar ANNULATION OFF 0.3 MPa ANNULATION ROTATION 43.5 psi AMORTISSEMENT 3 bar VERT VERT CLAIR GAUCHE DROITE ROTATION CASE TRAINING CENTER 6 - 8 AUGUST 2000...
  • Page 202 When swing and arm in or boom up is operated at the same time, the parallel oil passage remains restricted, and the swing pressure is designed to be retained. Priority is placed on swing before the cut valve. CASE TRAINING CENTER 6 - 9 AUGUST 2000...
  • Page 203 OUVERT OPTION FERME MARTEAU FLECHE (2) 5a31 5a32 5b31 5b32 FLECHE (1) MONTEE 4b22 ROTATION Ø2.5 DESCENTE GAUCHE DROITE 4b21 Ø2.5 TRANSLATION (G) TRANSLATION (D) ARRIERE AVANT AVANT ARRIERE ROTATION GAUCHE DROITE CASE TRAINING CENTER 6 - 10 AUGUST 2000...
  • Page 204 The discharged oil from A2 is supplied to the boom (2) spool from the parallel oil passage via the straight travel valve and merges at the downstream of the boom (1) spool. CASE TRAINING CENTER 6 - 11 AUGUST 2000...
  • Page 205 HYDRAULIC CIRCUIT 0.29 Mpa 42 psi ø 3 2.9 bar 4a42 4a41 5a51 5a52 5b52 5b51 FLECHE (2) 5a31 MONTEE DESCENTE 5a32 5b31 5b32 FLECHE (1) MONTEE 4b22 Ø2.5 DESCENTE 4b21 Ø2.5 CASE TRAINING CENTER 6 - 12 AUGUST 2000...
  • Page 206 Due to the bleeding oil passage of the central bypass, a high pressure occurrence is restricted and extra vibration is reduced even when boom down is operated very quickly, since hydraulic oil is bled. CASE TRAINING CENTER 6 - 13...
  • Page 207 HYDRAULIC CIRCUIT 0.29 Mpa 42 psi ø 3 2.9 bar 4a42 4a41 FLECHE (1) DESCENTE MONTEE 4b22 4b21 CASE TRAINING CENTER 6 - 14 AUGUST 2000...
  • Page 208 (1) spool, then, flows into the rod side of the arm cylinder via the holding valve. The returned oil from the bottom side goes back to the arm (1) and (2) spools via the tank oil passage. CASE TRAINING CENTER 6 - 15 AUGUST 2000...
  • Page 209 ø 1.2 0.29 Mpa 42 psi ø 3 2.9 bar BALANCIER (2) SORTIE 4a42 BALANCIER (1) 4a41 RENTREE 5a51 SORTIE RENTREE 5a52 5b52 5b51 5a31 5a32 5b31 5b32 4b22 Ø2.5 4b21 Ø2.5 CASE TRAINING CENTER 6 - 16 AUGUST 2000...
  • Page 210 When the load pressure is high at the bottom side, the forced recycle valve is changed over to the left and the opening of the tank passage becomes larger and no recycle occurs. CASE TRAINING CENTER 6 - 17 AUGUST 2000...
  • Page 211 ø 1.2 0.29 Mpa 42 psi ø 3 2.9 bar BALANCIER (2) RENTREE SORTIE 4a42 BALANCIER (1) SORTIE 4a41 5a51 RENTREE 5a52 5b52 5b51 5a31 5a32 5b31 5b32 4b22 Ø2.5 4b21 Ø2.5 CASE TRAINING CENTER 6 - 18 AUGUST 2000...
  • Page 212 As a result, hydraulic oil at P0 port of the control valve enters OPT port of control valve auxiliary spool via the holding valve check and merges the hydraulic oil from A2. CASE TRAINING CENTER 6 - 19 AUGUST 2000...
  • Page 213 5b51 RENTREE GODET OPTION OUVERT FERME MARTEAU FLECHE (2) 5a31 5a32 5b31 5b32 FLECHE (1) MONTEE 4b22 ROTATION Ø2.5 DESCENTE GAUCHE 4b21 DROITE Ø2.5 TRANSLATION (G) TRANSLATION (D) ARRIERE AVANT AVANT ARRIERE CASE TRAINING CENTER 6 - 20 AUGUST 2000...
  • Page 214 HYDRAULIC CIRCUIT Circuit for Breaker & Crusher (Auxiliary Line Holding Valve) HOLDING VALVE RELEASE SPOOL HOLDING VALVE CIRCUIT DIAGRAM CASE TRAINING CENTER 6 - 21 AUGUST 2000...
  • Page 215 HYDRAULIC CIRCUIT CASE TRAINING CENTER 6 - 22 AUGUST 2000...
  • Page 216 The pilot pressure entered at 5a4 of the control valve, change over the auxiliary spool while the discharged oil from A2 is supplied to the breaker through the direction valve. CASE TRAINING CENTER 6 - 23 AUGUST 2000...
  • Page 217 RENTREE GODET OUVERT OPTION FERME CISAILLE MARTEAU FLECHE (2) 5a31 5a32 5b31 5b32 FLECHE (1) MONTEE ROTATION 4b22 Ø2.5 DESCENTE GAUCHE 4b21 DROITE Ø2.5 TRANSLATION (G) TRANSLATION (D) ARRIERE AVANT AVANT ARRIERE CASE TRAINING CENTER 6 - 24 AUGUST 2000...
  • Page 218 HYDRAULIC CIRCUIT OPTION CIRCUITS Hammer option Double acting option CASE TRAINING CENTER 6 - 25 AUGUST 2000...
  • Page 219 HYDRAULIC CIRCUIT Clamshell option Multipurpose option CASE TRAINING CENTER 6 - 26 AUGUST 2000...
  • Page 220 HYDRAULIC CIRCUIT 2nd auxiliary circuit option Hammer and 2nd auxiliary option CASE TRAINING CENTER 6 - 27 AUGUST 2000...
  • Page 221 HYDRAULIC CIRCUIT Clamshell and 2nd auxiliary option Clamshell and double acting option CASE TRAINING CENTER 6 - 28 AUGUST 2000...
  • Page 222 HYDRAULIC CIRCUIT Clamshell and 2nd auxiliary and multipurpose option CASE TRAINING CENTER 6 - 29 AUGUST 2000...
  • Page 223 HYDRAULIC CIRCUIT PUMP CX 130 Pump engine stopped CASE TRAINING CENTER 6 - 30 AUGUST 2000...
  • Page 224 (L, S , H or AUTO) Engine stop, the servo piston is not pushed by the compensated pump pressure of the spool C and the pump swash plates are totally pushed in full flow position. CASE TRAINING CENTER 6 - 31 AUGUST 2000...
  • Page 225 HYDRAULIC CIRCUIT 0.29 Mpa 42 psi 2.9 bar ø 3 ISUZU 4BGIT 66,2KW 2100 3.92 Mpa 565 psi 39 bar CASE TRAINING CENTER 6 - 32 AUGUST 2000...
  • Page 226 (bigger area). The pumps deliver a small flow to insure the cooling of the hydraulic oil. Note: the negative flow control pressure signal is slightly lower than the pump outlet pressure CASE TRAINING CENTER 6 - 33 AUGUST 2000...
  • Page 227 HYDRAULIC CIRCUIT 0.29 Mpa 42 psi 2.9 bar ø 3 ISUZU 4BGIT 66,2KW 2100 3.92 Mpa 565 psi 39 bar CASE TRAINING CENTER 6 - 34 AUGUST 2000...
  • Page 228 L' push the valve D' to the left and the piston B' & C' are connected; the force is higher on B' piston and the angle of the swash plate decreases. CASE TRAINING CENTER 6 - 35...
  • Page 229 HYDRAULIC CIRCUIT 0.29 Mpa 42 psi 2.9 bar ø 3 ISUZU 4BGIT 66,2KW 2100 3.92 Mpa 565 psi 39 bar CASE TRAINING CENTER 6 - 36 AUGUST 2000...
  • Page 230 C acts identically on the lever L & L'. L & L' levers push on the torque regulations valves D & D' to reduce proportionally the swash plate angle of the two pumps. CASE TRAINING CENTER 6 - 37...
  • Page 231 HYDRAULIC CIRCUIT 0.29 Mpa 42 psi 2.9 bar ø 3 ISUZU 4BGIT 66,2KW 2100 3.92 Mpa 565 psi 39 bar CASE TRAINING CENTER 6 - 38 AUGUST 2000...
  • Page 232 The proportional valve acts on the pump torque regulation On the CX130 the pump torque increases when the proportional valve pressure increases. The output pressure from the proportional valve pushes the piston G & G' to the left side and compresses the non-adjustable spring.
  • Page 233 HYDRAULIC CIRCUIT 0.29 Mpa 42 psi 2.9 bar ø 3 ISUZU 4BGIT 66,2KW 2100 3.92 Mpa 565 psi 39 bar CASE TRAINING CENTER 6 - 40 AUGUST 2000...
  • Page 235 HYDRAULIC EXCAVATOR CX130 SECTION N°7 SETTINGS CASE TRAINING CENTRE AUGUST 2000...
  • Page 236 CENTRE DE FORMATION CASE EDITION AOUT 2000...
  • Page 237 Total circuit capacity - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 123 litres CASE TRAINING CENTER...
  • Page 238 3 cables (5 m long)........E3144472 1 electric plug 220V50Hz ......D5344467 1 cigarette lighter cable ......E5344468 1 instruction manual ........------------- CD99C002 1 carrying case........... N5344476 SET OF HIGH PRESSURE HYDRAULIC HOSES CAS 30036 (INCLUDING TWO HIGH PRESSURE HOSES). CD98M009...
  • Page 239 HYDRAULIC PRESSURE SETTINGS IDENTIFICATION OF HYDRAULIC COMPONENTS CX130 pump CS00E543 CS00E516CS00E542 Port Description Location A1-A2 Pump output (P1-P2) SAE 6000 psi 3/4 " Pilot pump output G 3/8 Main pump intake SAE 6000 psi 3/4 " Pilot pump intake G 3/4...
  • Page 240 HYDRAULIC PRESSURE SETTINGS CX130 control valve CI00E505 CI00E504 CI00E506 CASE TRAINING CENTER 7 - 4 AUGUST 2000...
  • Page 241 G 1/4 Boom/dipper load holding pilot pressure By-pass return G 1/4 To shock absorber (heating) G 1/4 Priority to swing G 1/4 Cancel priority to swing G 1/4 Dipper parallel flow variation CASE TRAINING CENTER 7 - 5 AUGUST 2000...
  • Page 242 Description Supply to pilot manifold Return to reservoir Select 2nd travel speed Swing brake control Higher pressure - 2-stage relief Cancel pilot system shock absorbing Cancel swing piloting Pilot pressure cancellation control CASE TRAINING CENTER 7 - 6 AUGUST 2000...
  • Page 243 In the event of incorrect operation of the circuit, change the accumulator. Never try to repair it. Non-observance of these instructions and the procedure shown below can cause serious or fatal injury. CASE TRAINING CENTER 7 - 7 AUGUST 2000...
  • Page 244 Engine speed 1950±10 rpm Amperage 450 mA Lower the engine speed to idle for 30 seconds, then shut down the engine. Turn the starter key switch to "ON", without starting the engine. CASE TRAINING CENTER AUGUST 2000 7 - 8...
  • Page 245 Install the flange (2) (CAS 2764) on the hose (1). Connect the elbow union (3) (CAS 2764) on the pump outlet to be checked. Install the hoses (4) (CAS 30036) on the elbow union (3) and on the flange (2). CX130 CASE TRAINING CENTER 7 - 9 AUGUST 2000...
  • Page 246 (against cylinder stops) pressure detector at this test point is located on 30 seconds. the pump (port X3 on CX130). It is used to Actuate the bucket and dipper controls in the other check the pump regulated pressure. direction (against...
  • Page 247 15.6 bar (1.56 MPa) 2 bar (0.2 MPa) RH swing secondary relief valve 5 bar (0.5 MPa) 5 bar (0.5 MPa) LH swing secondary relief valve 5 bar (0.5 MPa) 5 bar (0.5 MPa) CASE TRAINING CENTER 7 - 11 AUGUST 2000...
  • Page 248 (H) until 39±1 bar (3.9±0.1 MPa) is reached. Tighten the lock nut while holding the adjusting screw in position. When the adjusting screw has been tightened, check the pressure again and make sure there are no leaks. CASE TRAINING CENTER AUGUST 2000 7 - 12...
  • Page 249 Untighten the screw (1) to reduce pressure. Tighten the lock nut (2) while holding the adjusting screw (1) in position. When the adjusting screw has been tightened, check the pressure again and make sure there are no leaks. CASE TRAINING CENTER 7 - 13 AUGUST 2000...
  • Page 250 Operate and hold in position the corresponding check the pressure again and make sure there are attachment control (against the cylinder stops). no leaks. Read the pressure on the diagnostic screen, the pressure should be: CASE TRAINING CENTER AUGUST 2000 7 - 14...
  • Page 251 Note the pressures if they are not correct to find the Reset the secondary relief valve (A) to its original number of shims needed for adjustment. One 0.1 mm pressure (refer "Setting standard shim corresponds to 5 bars of pressure. pressure"). CASE TRAINING CENTER 7 - 15 AUGUST 2000...
  • Page 252 (1) to 157 Nm. Reassemble the valve on the swing motor and the tighten to 78 Nm. Check the pressure of the valves again and make sure there are no leaks. CASE TRAINING CENTER AUGUST 2000 7 - 16...
  • Page 253 CS99B579 1 locking pin of above dimensions Connect a pressure test point and a 0-100 bar 1 receptacle of10 litres capacity pressure gauge to port G3 (CX130) or a4 (CX210) 1 hose on the pump. 1 plug Display the diagnostic screen "CHK1".
  • Page 254 Since the quantity of oil can vary depending on the test point used, repeat the measurement (Step 10) with the upperstructure at 90°, then at 180°. NOTE: The maximum permitted is about 4 L/min. CASE TRAINING CENTER AUGUST 2000 7 - 18...
  • Page 255 Check the travel motors for leaks Higher than normal pressure, Below 3 L/min Drain the reduction gear and check if there is any contamination (metal particles). Replace or repair the travel reduction gear CASE TRAINING CENTER 7 - 19 AUGUST 2000...
  • Page 256 Check the pilot pressure at the travel Check the travel motor displacement motor displacement change spool Pressure correct (39 bar - 3.9 MPa) change spool. Repair or change the travel motor CASE TRAINING CENTER 7 - 20 AUGUST 2000...
  • Page 257 Voltage < 24 V Check the electrical harness solenoid valve Infinite or 0 Ohm Change the solenoid valve Check the pilot solenoid valve coil About 40 Ohm Change the solenoid valve coil CASE TRAINING CENTER 7 - 21 AUGUST 2000...
  • Page 258 Difficult to move broken faulty movement Check the pilot pressure of the Check the operation of the control Pressure below 30 bar control valve spool lever spool, change or repair CASE TRAINING CENTER 7 - 22 AUGUST 2000...
  • Page 259 Repair or change the load holding Check the load holding operation Sticking valve Check the pilot pressure at the Check the operation of the control Pressure below 30 bar control valve spool lever spool, change or repair CASE TRAINING CENTER 7 - 23 AUGUST 2000...
  • Page 261 OFF 0.3 MPa EXTENDED ON 0.5 MPa 43.5 psi 72.6 psi 3 bar 3.92 Mpa 5 bar 565 psi OFF 0.3 MPa 39 bar 43.5 psi CONNECTION ITEM NO. 3 bar RETRACTED OPTIONAL ITEM NO. CX130 EXCAVATOR HYDRAULIC SCHEMATIC Number 7-27610...
  • Page 262 BR 207 BR 207 BR 207 1.25 YR 208 1.25 W 209 ITEM DESCRIPTION 1.25 R 206 CONTROLLER BR 207 INSTRUMENT PANEL CN C1 CN C3 CN C4 1.25 YR 208 SWITCH PANEL (LEFT) CN C2 1.25 WR 209 2A1. TRAVEL SPEED SWITCH BrR 544 BR 203...

Table of Contents
