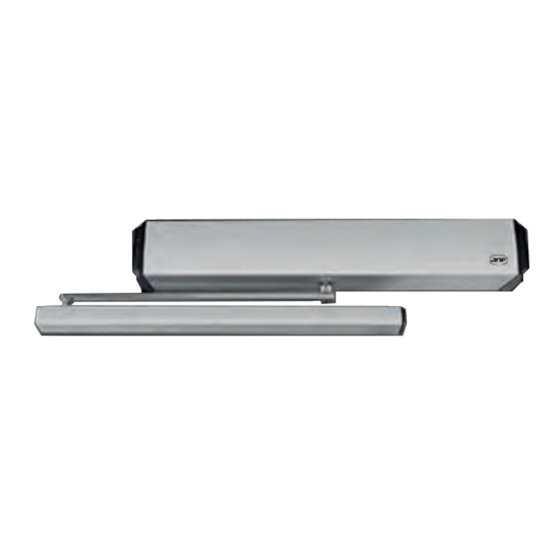

- Page 1 IN.21.900 LOCKING SYSTEMS AUTOMATIC OVERHEAD DOOR CLOSER MOLA DE PORTA AEREA AUTOMATICA CIERRA PUERTAS AEREO AUTOMATICO MANUAL DE INSTALAÇÃO / INSTALLATION MANUAL / MANUAL DE INSTALACION...
- Page 2 WARNING IT MIGHT CAUSE DAMAGE TO THE PROPERTY OR INJURY TO THE USER UNDER THE INCORRECT USAGE. IT MIGHT CAUSE A SERIES INQUIRY OR DEATH UNDER INCORRECT USAGE.
-
Page 3: Table Of Contents
5.7. ANTI-CLAMP SENSOR (EXAMPLE: IN.15.737) 5.8. ANTI-CLAMP SENSOR (EXAMPLE: IN.15.730) 6. REMOTE CONTROL 6.1. OPERATION OF THE REMOTE CONTROL 7. DATA SETTING 8. LED DISPLAY FEEDBACK 8.1. SINGLE OPENING 8.2. DOUBLE OPENING 9. TROUBLESHOOTING INSTALLATION MANUAL / MI0315.1 www.jnf.pt 3/72... -
Page 4: General Safety Instruction
Please, read these instructions in full before starting the installation. 1.2. OVERVIEW This manual is applicable to the installation, use and maintenance of the IN.21.900, which is designed for being used indoors. The section in this manual related to installation and commissioning, is limited only and exclusively for use by qualified skilled technicians 1.3. -
Page 5: Pre-Installation
Q. Certified transformer. 220V/110V, Power 50w. CAPTION 1. SWING DOOR MECHANISM 2. MICROWAVE SENSOR 3. E-LOCK 4. NUMBER KEYPAD 5. PUSH BUTTON (WIRELESS) 6. TOUCHLESS SENSOR 7. REMOTE CONTROL 8. PUSH BUTTON 9. TOP SENSOR INSTALLATION MANUAL / MI0315.1 www.jnf.pt 5/72... -
Page 6: Technical Data
CLOSE SPEED 45º/s OPENING TIME 0-60 s (adjustable) PROTECTION CLASS IP21 NOTES: Data recorded under zero wind pressure. Door leaf over weight is not allowed, service life will get shorter. 3.3. DIMENSIONS 39,5 28,5 INSTALLATION MANUAL / MI0315.1 www.jnf.pt 6/72... -
Page 7: Components
TOUCH SWITCH IN.21.903 IN.28.501 IN.24.207 NUMERIC KEYBOARD NUMERIC KEYBOARD WIRELESS PUSH BUTTON IN.28.108 IN.28.109 IN.15.732 (*) WIRELESS RECEIVER WIRELESS TOUCHLESS SWITCH TOUCHLESS SWITCH (*) (OPTIONAL / NOT NEEDED FOR THIS SYSTEM (*) IN.21.910.RC IN.21.910.WL IN.21.910 INSTALLATION MANUAL / MI0315.1 www.jnf.pt 7/72... -
Page 8: Mechanism Components
3.6. MECHANISM COMPONENTS Right side cover Controller Motor Le side cover Pull bar Transformer 220V input BOTTOM PLATE PULL BAR COVER PULL GUIDER MECHANISM Power switch 0 = Power off I = Power on INSTALLATION MANUAL / MI0315.1 www.jnf.pt 8/72... -
Page 9: Mechanical Installation
4. MECHANICAL INSTALLATION 4.1. BAR TYPE 4.1.1. PULL BAR - OPEN TO INSIDE (MECHANISM INSIDE) Open direction 4.1.2. PUSH BAR - OPEN TO OUTSIDE (MECHANISM INSIDE) Open direction Open direction INSTALLATION MANUAL / MI0315.1 www.jnf.pt 9/72 Open direction... -
Page 10: Installation Of Bottom Plate
(Steel material M6 x 15 mm Inner hexagonal screw) Le side installation Ø17 Power cable Ø17 Controller cable 150 31 Fix the bottom plate on the door frame with 6 screws (Steel material M6 x 15 mm Inner hexagonal screw) INSTALLATION MANUAL / MI0315.1 www.jnf.pt 10/72... -
Page 11: Push Bar
8 screws (Steel material M6*15 - Inner hexagonal screw) Le side installation Mechanism position Open direction Tip: For push bar installation, the mechanism and open direction are the same. For pull bar installation, the mechanism and open direction are opposite. INSTALLATION MANUAL / MI0315.1 www.jnf.pt 11/72... -
Page 12: Installation Of Sliding Arm
Install the fix plate with 3 self-tapping degree (Position limiter is at le while le installation) Automaitc door right installation INSTALLATION MANUAL / MI0315.1 www.jnf.pt 12/72 position stopper Move position limiter to adjust open degree (Position limiter is at le... -
Page 13: Pull Bar For Glass Door
Adjust the push bar lenght by two screw Automatic door right installation according to the door frame’s depth(L). Adjust the push bar lenght by two screw Automatic door right installation according to the door frame’s depth(L). INSTALLATION MANUAL / MI0315.1 www.jnf.pt 13/72... -
Page 14: Push Bar For Glass Door
The glass clamp of the push arm shall be fastened on the door wing with 4 plug screws (M6x12) as show in the image Tip: The glass clamp of the push arm shall be fastened on the door wing with 4 plug screws (M6*12) as shown in the figure INSTALLATION MANUAL / MI0315.1 www.jnf.pt 14/72... - Page 15 Install the x plate of the push bar with 2 screw (M5*8) on glass clamp. Mechanism Wall Wall Push bar Glass clamp Push bar ≤200 Glass clamp Door leaf Open direction ≤200 Door leaf Open direction INSTALLATION MANUAL / MI0315.1 www.jnf.pt 15/72...
-
Page 16: Mechanism Installation
4. MECHANICAL INSTALLATION 4.4. MECHANISM INSTALLATION Hang the mechanism on the fixed base cover with screws. 4.5. ASSEMBLE AND DISASSEMBLE OF THE MECHANISM UP COVER INSTALLATION MANUAL / MI0315.1 www.jnf.pt 16/72... -
Page 17: Wired Diagram
LED will stop flash. Date setting is finished. CONNECTION OF THE POWER SUPPLY FOR SINGLE OPEN EXTERNAL POWER (AC100 - 240V) CONNECTION OF THE POWER SUPPLY FOR DOUBLE OPEN EXTERNAL POWER (AC100 - 240V) INSTALLATION MANUAL / MI0315.1 www.jnf.pt 17/72... -
Page 18: Interlock
Dr12 and Dr13 means that there is no bridge connection 11. SYNCHRONOUS (OUT) 5.3. 24G MICROWAVE SENSOR (IN.15.731) ONE POINT 1. +24V 2. GND black yellow 9. OPEN - B 10. COM green 18. GND 19. UPS + INSTALLATION MANUAL / MI0315.1 www.jnf.pt 18/72... -
Page 19: Different Sensor Example
TIP: The magnetic lock should connect with the power access. The lock current should be lower than 800mA Anti-clamp sensor when opening 24. Anti-collision(open) PINK 22. GND INSTALLATION MANUAL / MI0315.1 www.jnf.pt 19/72 BROWN 22. GND WHITE +24V 20. +24V... -
Page 20: Anti-Clamp Sensor (Example: In.15.737)
Anti-clamp sensor when opening YELLOW 24. Anti-collision(open) BROWN 22. GND BLACK 22. GND +24V 20. +24V Anti-clamp sensor when closing DOUBLE ACTION SENSOR IN.15.730 YELLOW 23. Anti-collision(close) BROWN 22. GND BLACK 22. GND +24V 20. +24V INSTALLATION MANUAL / MI0315.1 www.jnf.pt 20/72... -
Page 21: Remote Control
5. In double open mode, accessories should connect to both controller (parallel connection) 5. In the double open mode, the accessories should be connect to both controllers (parallel connection) INSTALLATION MANUAL / MI0315.1 www.jnf.pt 21/72... -
Page 22: Data Setting
Over current prote on for connected when single opening) Er01 controller Er02 Motor has problem Over current prote on for Er01 controller Er03 Synchronous wired problem Er02 Motor has problem Master door and slave door Er04 problem INSTALLATION MANUAL / MI0315.1 www.jnf.pt 22/72... -
Page 23: Troubleshooting
(faster) too slow INSTALLATION MANUAL / MI0315.1 www.jnf.pt 23/72... - Page 24 NOTAS / NOTES www.jnf.pt 68/72...
