JNF IN.15.702 Installation Manual

Automatic sliding glass doors system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

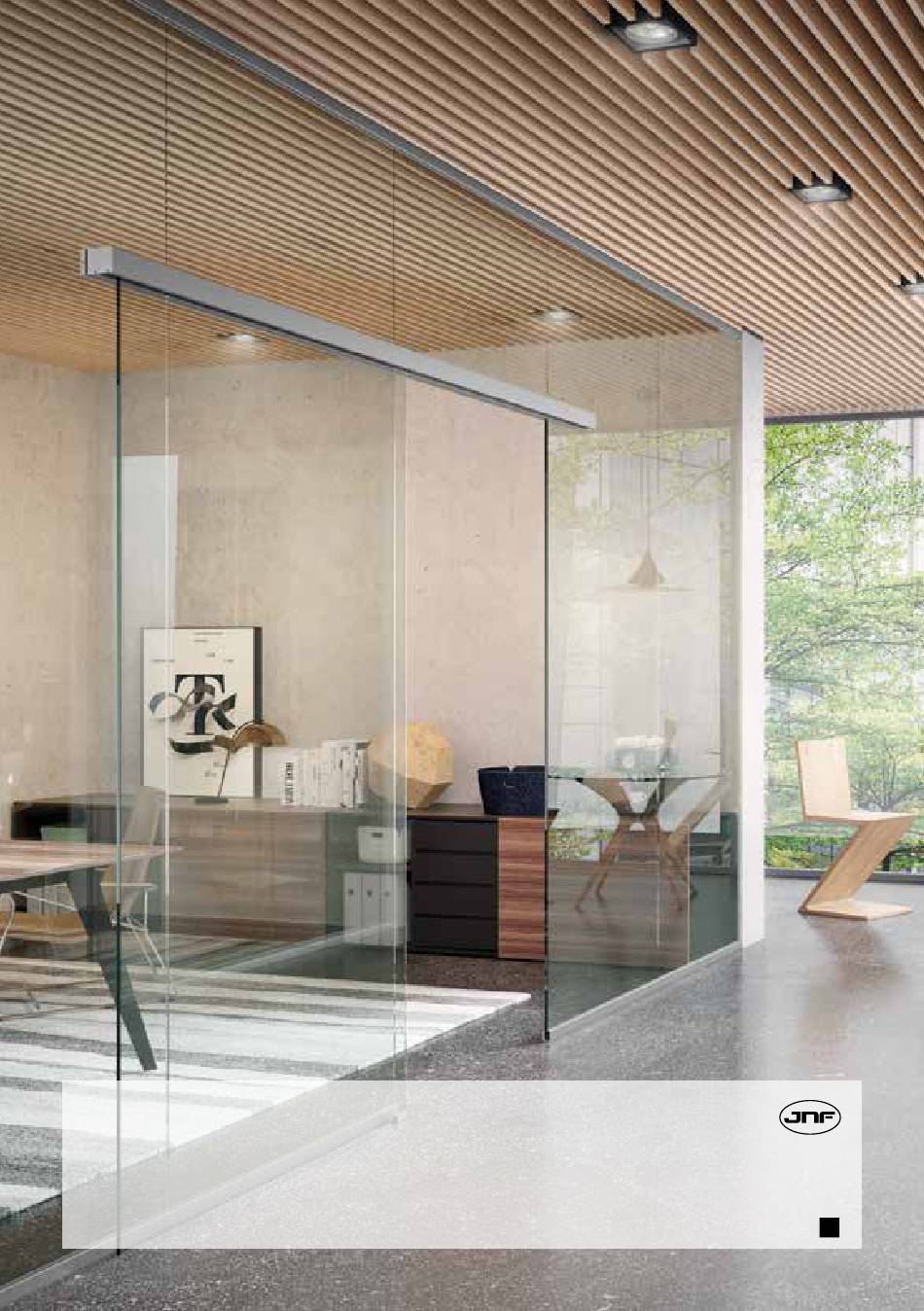

IN.15.702 / IN.15.712 | LINEAR POLARIS
IN.15.702.EL / IN.15.712.EL | LINEAR POLARIS WITH E-LOCK
AUTOMATIC SLIDING GLASS DOORS SYSTEM
EN
INSTALLATION MANUAL
INSTALLATION MANUAL / MI0216.1
www.jnf.pt
1/44

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IN.15.702 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JNF IN.15.702

Summary of Contents for JNF IN.15.702

  • Page 1 IN.15.702 / IN.15.712 | LINEAR POLARIS IN.15.702.EL / IN.15.712.EL | LINEAR POLARIS WITH E-LOCK AUTOMATIC SLIDING GLASS DOORS SYSTEM INSTALLATION MANUAL INSTALLATION MANUAL / MI0216.1 www.jnf.pt 1/44...
  • Page 2 WARNING It might cause damage to property or user injury under incorrect usage. It might cause series inquiry or death under incorrect usage INSTALLATION MANUAL / MI0216.1 www.jnf.pt 2/44...
  • Page 3 GENERAL SAFETY INSTRUCTION 1. Introduction Dear client: We thank for your confidence in JNF for acquiring this innovative Linear Polaris automatic operator for interior sliding doors. JNF offers products designed and developed following high demanding production standards, to ensure we deliver a product with the best quality, as well as a superb user friendly experience and easy installation.

  • Page 4: General Safety Instruction

    Due to our policy of continuous development and improvement of the products, JNF reserves the right to modify or develop the product described herein, without previous advice. Therefore, the drawings, descriptions and data contained in this manual must not be considered as a contractual obligation, but only indicative.
  • Page 5 GENERAL SAFETY INSTRUCTION JNF declines all civil or criminal liabilities for injuries caused to persons, animals and/or objects as a result of: * Not proceeding following the indications contained in the installation, user and maintenance manuals. * A non-authorized manipulation of the product.
  • Page 6 (etc) may contain contaminating materials, and as such, they must be carefully removed and delivered to companies specialized in their evacuation, classification and disposal. Do not throw away the packaging or product materials anywhere. Recycle!! INSTALLATION MANUAL / MI0216.1 www.jnf.pt 6/44...

  • Page 7: Technical Specifications

    Force <100 N Motion control by means of a driver with field oriented control (FOC) CONTROL Self-adjustment of clear opening Wireless communication via Bluetooth Voltage: 24V CC ACCESSORIES Current: 1A OPERATING Min. 5ºC Max. 40ºC TEMPERATURE INSTALLATION MANUAL / MI0216.1 www.jnf.pt 7/44...
  • Page 8 TECHNICAL DATA IN.15.702.D - FOR GLASS IN.15.702.D.EL - FOR GLASS WITH E- LOCK IN.15.712.D - FOR WOOD IN.15.716.D.EL - FOR WOOD WITH E-LOCK INSTALLATION MANUAL / MI0216.1 www.jnf.pt 8/44...
  • Page 9 TECHNICAL DATA INSTALLATION MANUAL / MI0216.1 www.jnf.pt 9/44...
  • Page 10 TECHNICAL DATA UPPER TRACK (x1) FRONT COVER (x1) SIDE COVER (x2) FLOOR GUIDE (x1) STOPPER (x2) POWER CABLE (x1) MOTOR (x1) WHEELS (x2) CURRENT TRANSFORMER (x1) WOOD ADAPTER (OPTIONAL) ELOCK (OPTIONAL) INSTALLATION MANUAL / MI0216.1 www.jnf.pt 10/44...

  • Page 11: Installation Instruction

    INSTALLATION INSTRUCTION 2.VERIFY THE OPENING DIRECTION AND THE OPERATOR LENGTH IN.15.702.D / IN.15.712.D RIGHT SIDE OPENING (FROM THE SIDE OF THE OPERATOR) IN.15.702.E / IN.15.712.E LEFT SIDE OPENING (FROM THE SIDE OF THE OPERATOR) INSTALLATION MANUAL / MI0216.1 www.jnf.pt 11/44...

  • Page 12: Mounting The Operator

    CW = Clear width SW = Width of Sliding leaf Door with = OW + D1 + D2 D1/D2 = Overlap D3 = Finger protection / Handle (Optional) A1/A2 = Header extension (Optional) Without overlap INSTALLATION MANUAL / MI0216.1 www.jnf.pt 12/44...
  • Page 13 3.2. Preparations before mounting 3.2.1. Drilling d=200 mm Ø6 D1+A1/A2 D1 = Leaf overlap A1 = Header Extension Fixing to roof Fixing to glass Fixing to iron beam Fixing to wall (With optional corner) INSTALLATION MANUAL / MI0216.1 www.jnf.pt 13/44...
  • Page 14 INSTALLATION INSTRUCTION 3.MOUNTING THE OPERATOR 3.2.2. Cutting the track If it’s needed to cut the track, the front cover and the guide must be also cutted. For that it’s recomended to use a circular saw. INSTALLATION MANUAL / MI0216.1 www.jnf.pt 14/44...
  • Page 15 The track must be cutted on the oposite side of the current transformer Be sure that the guide and the side cover don’t conctact ATTENTION No contact between the side cover and the guide INSTALLATION MANUAL / MI0216.1 www.jnf.pt 15/44...
  • Page 16 INSTALLATION INSTRUCTION 3.MOUNTING THE OPERATOR 3.2.2. Door dimension - Glass Ø14 +2,5 +2,5 -2,5 -2,5 Ø14 Ø14 +2,5 +2,5 +2,5 -2,5 -2,5 -2,5 INSTALLATION MANUAL / MI0216.1 www.jnf.pt 16/44...
  • Page 17 38,5 Ø14 +2,5 +2,5 +2,5 -2,5 -2,5 -2,5 30mm 30mm 30mm 30mm 30mm 35mm 35mm 35mm 35mm 35mm 29,5 29,5 29,5 40mm 40mm 40mm 40mm 40mm 50mm 50mm 50mm 50mm 50mm >30mm >30mm >30mm INSTALLATION MANUAL / MI0216.1 www.jnf.pt 17/44...
  • Page 18 INSTALLATION INSTRUCTION 3.MOUNTING THE OPERATOR 3.2.2. Glass Cutout (not E-LOCK) MIN. 950mm INSTALLATION MANUAL / MI0216.1 www.jnf.pt 18/44...
  • Page 19 INSTALLATION INSTRUCTION 3.MOUNTING THE OPERATOR 3.3. Glass Cutout - E-LOCK Example for Open Right cases For Open Left, the dimensions must be inverted MIN. 1000mm INSTALLATION MANUAL / MI0216.1 www.jnf.pt 19/44...
  • Page 20 Clean the track Clean the glass with after mounting degreasing agent before mounting Relieve the nut before next to the motor before mounting the door. Note: Only tight again after the “Self Adjustment” (Page 34). INSTALLATION MANUAL / MI0216.1 www.jnf.pt 20/44...
  • Page 21 INSTALLATION INSTRUCTION ATTENTION 10 N.m (x4) TORQUE WRENCH 2.0 N.m +2,5 - 2,5 INSTALLATION MANUAL / MI0216.1 www.jnf.pt 21/44...
  • Page 22 3.MOUNTING THE OPERATOR 3.4. Mounting instructions - WOOD ATTENTION Clean the track after mounting Relieve the nut before next to the motor before mounting the door. Note: Only tight again after the “Self Adjustment” (Page 34). INSTALLATION MANUAL / MI0216.1 www.jnf.pt 22/44...
  • Page 23 INSTALLATION INSTRUCTION ATTENTION 10.0 N.m TORQUE WRENCH 2.0 N.m +2,5 - 2,5 INSTALLATION MANUAL / MI0216.1 www.jnf.pt 23/44...
  • Page 24 Once tighten, make sure that the two front wheels of the motor slide smoothly on the top of the aluminium frame. This simple but critical operation will balance the motor and ensure that the separation between the magnets and the motor is correct. Allen nº4 INSTALLATION MANUAL / MI0216.1 www.jnf.pt 24/44...

  • Page 25: Switch Off

    INSTALLATION INSTRUCTION 5.WIRING AND COMMISSIONING 5.1. Connect the power cable SWITCH OFF SWITCH ON SWITCH OFF BROWN / BLACK / GREY BLUE YELLOW-GREEN INSTALLATION MANUAL / MI0216.1 www.jnf.pt 25/44...
  • Page 26 INSTALLATION INSTRUCTION 5.WIRING AND COMMISSIONING 5.2. Push button SWITCH OFF SWITCH ON SWITCH OFF ACTIVATION IMPULSE INSTALLATION MANUAL / MI0216.1 www.jnf.pt 26/44...

  • Page 27: Internal Sensor

    SWITCH OFF INTERNAL SENSOR FOLLOW THE SENSOR manufacturer’s instructions EXTERNAL SENSOR FOLLOW THE SENSOR manufacturer’s instructions 5.WIRING AND COMMISSIONING 5.4. Touchless switch (BEA Magic Switch*) Power Power (*) Consult factory for photocells from other manufacturers. INSTALLATION MANUAL / MI0216.1 www.jnf.pt 27/44...
  • Page 28 INSTALLATION INSTRUCTION 5.WIRING AND COMMISSIONING 5.5. Safety devices SWITCH OFF SWITCH ON SWITCH OFF * BEA VIO-DT 1&2 SENSOR (For others models, consult factory) 5.WIRING AND COMMISSIONING 5.6. Photocells TRANSMITTER RECEIVER INSTALLATION MANUAL / MI0216.1 www.jnf.pt 28/44...
  • Page 29 - One operator can be controlled by multiple remote controls - To delete all transmitters from the memory, press the pairing button and hold during 8 seconds Transmitter Functions DRIVER DIP SWITCHES Operating mode LEDs GREEN(G) ORANGE(O) RED(R) INSTALLATION MANUAL / MI0216.1 www.jnf.pt 29/44...
  • Page 30 (if supplied). (*) Warning: in the event of power failure, for safety reasons the lock is programmed to release and unblock the door leaf so it can be moved manually to open position. INSTALLATION MANUAL / MI0216.1 www.jnf.pt 30/44...
  • Page 31 INSTALLATION INSTRUCTION 5.WIRING AND COMMISSIONING 5.8. Acess control with number key pad (IN.28.108) SWITCH OFF SWITCH ON SWITCH OFF Access Control ACTIVATION IMPULSE DC 12V (Example: IN.28.110) Power supply Black Yellow Orange White IN.28.108 (EXAMPLE) INSTALLATION MANUAL / MI0216.1 www.jnf.pt 31/44...
  • Page 32 (*) The opening speed can only be adjusted with the operator in “Normal mode”, and the speed depends on the leaf weight and the clear opening. In “Low energy” mode, the speed is determined by the operator itself, to adjust the opening/closing force as per EN16005. INSTALLATION MANUAL / MI0216.1 www.jnf.pt 32/44...
  • Page 33 6.2. Configuration of “Hold open time” (FIRMWARE I/O 3.1.X / DR 20.1.X) Changing the position of any of the dip switches. HOLD OPEN TIME NOT IN USE Hold open time Switch 3 Switch 4 2,5 s. OFFO 5 s. 10 s. 15 s. INSTALLATION MANUAL / MI0216.1 www.jnf.pt 33/44...

  • Page 34: On/Off Switch

    6. Set Dip switch no. 4 on the motor Driver to ON position to save the parameters in memory. 7. SWITCH OFF, wait until all leds on driver are off and then SWITCH ON again. 8. Tight the nut next to the motor to make the final adjustment (check figure bellow). INSTALLATION MANUAL / MI0216.1 www.jnf.pt 34/44...

  • Page 35: Error Info

    º Check the wiring connections in the Correct operation of the power terminal plug: phase, neutral, earth. supply circuit and the I/O º Test the continuity of the fuse. Replace the accessories control board. 2A fuse if necessary. INSTALLATION MANUAL / MI0216.1 www.jnf.pt 35/44...

  • Page 36: Led Status

    º The pairing process between the I/O accessories control board and motor driver takes more than 2 minutes. º Run a new self-adjustment (OFF / 10s / ON). INSTALLATION MANUAL / MI0216.1 www.jnf.pt 36/44...
  • Page 37 º Check that the antenna on the receiver is not touching any element of the automatic The guide does not respond to guide (cables, aluminium tracks, control the commands received from the board). remote control. INSTALLATION MANUAL / MI0216.1 www.jnf.pt 37/44...
  • Page 38 º The door is continuously doing opening GREEN LED LEDs are ON only 10 seconds and closing cycles (normally used for ORANGE LED afterselecting the operating mode, quality control tests). then the LEDs will turn OFF. INSTALLATION MANUAL / MI0216.1 www.jnf.pt 38/44...
  • Page 39 º Reduce the opening speed (dip switches on driver). º Check that the operating temperature does not exceed 50ºC. º Repeat the self-adjustment (switch OFF > wait 10s > switch ON). INSTALLATION MANUAL / MI0216.1 www.jnf.pt 39/44...
  • Page 40 Pairing process fails. the correct position. º When setting the dip switch to ON, you must listen a “click” sound indicating that the dip switch is firmly placed in position. Then run a new pairing process. INSTALLATION MANUAL / MI0216.1 www.jnf.pt 40/44...

  • Page 41: Declaration Of Conformity

    European Union: Product: Automatic guide for internal sliding door Model: Linear Polaris Serial number: IN.15.702 / IN.15.712 Directives and standards: Directive 2006/42/CE on machinery - EN ISO 12100:2012 - EN ISO 13857:2008 Directive 2004/108/CE “Electronic Compatibility (EMC)” - EN 61000-3-2:2006+A1:2009+A2:2009...
  • Page 42 NOTES INSTALLATION MANUAL / MI0216.1 www.jnf.pt 42/44...
  • Page 44 J. Neves & Filhos Comércio e Indústria de Ferragens, S.A. Rua das Mimosas, 849/851 Zona Industrial das Mimosas S. Pedro da Cova | Ap. 75 4429-909 Gondomar PORTUGAL jnf@jnf.pt | www.jnf.pt INSTALLATION MANUAL / MI0216.1 www.jnf.pt 44/44...

This manual is also suitable for:

In.15.712In.15.702.elIn.15.712.el
