Mounting The Entrance Station (2) - Aiphone GH-1KD Installation And Operation Manual

3-2
1
GH-DA/A
ON
4
3
2
1
0
2
GH-DA/A
ON
4
3
1 2
CN2 0
GH-SW
ON
CN1
3
CN2
CN1
CN2
CN1
CN2
4
5
GH-DA/A
ON
4
3
2
1
0

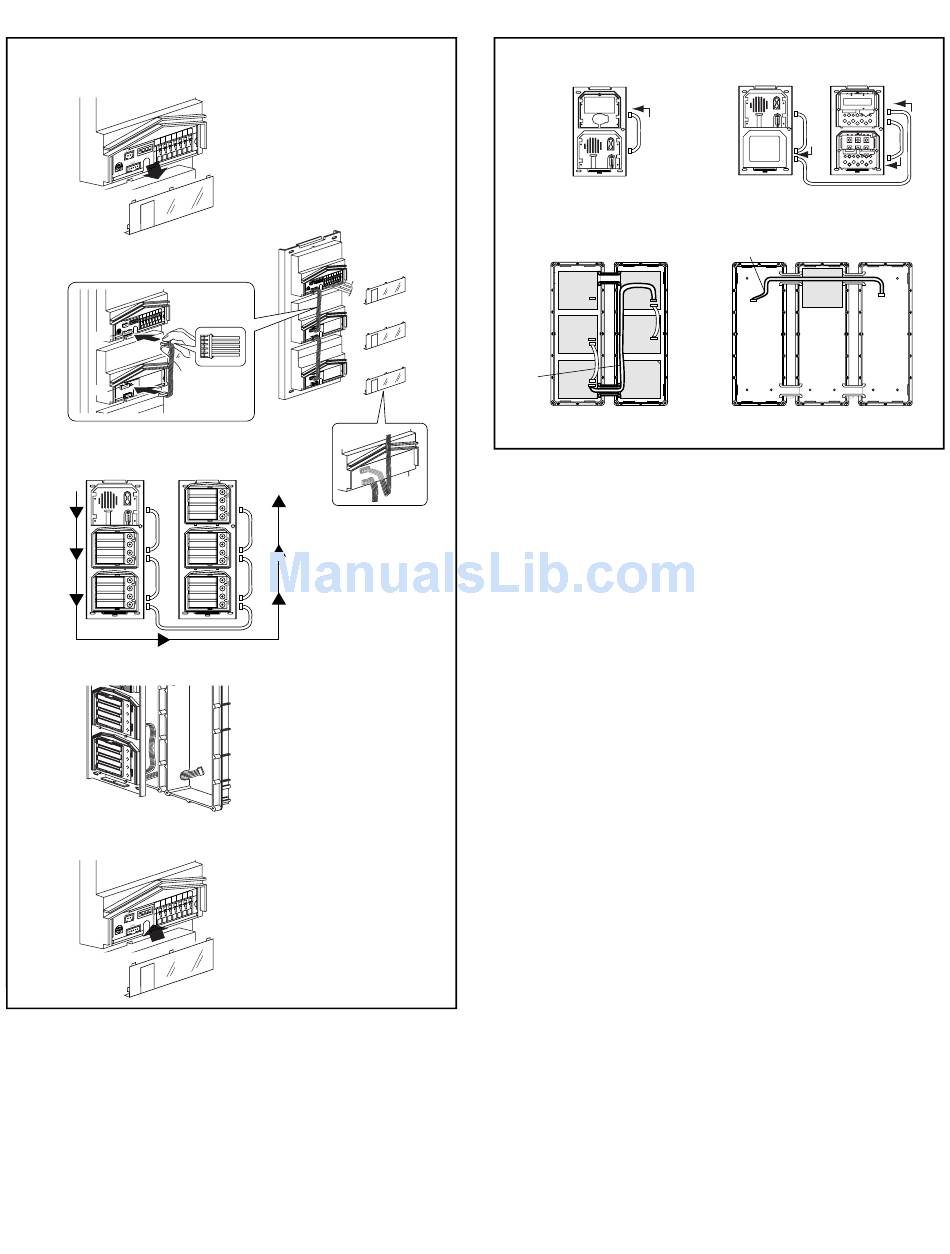

Mounting the Entrance Station (2)

1. Remove the terminal cover.
2. From the speech module to the next module, insert the attached
connector into the socket. Make sure to run the cable under the
terminal cover for protection.
3. Connect the connectors between the modules with cables.
4. Run the connection cable through the joint pipe (which you
should have made open in advance) and connect CN1 of GH-
SW to the next row.
5. Put back the terminal cover.
ON
3 4
1 2
0
ON
ON
1 2
CN1
CN2
CN1
CN2
CN1
3-3
1
CN3
GH-VA
GH-DA/A
CN1
2
GH-VA GH-NS
GH-DA/A GH-10K
GH-AD GF-BP
GF-C
GF-3B GF-3B
Mounting the Entrance Station (3)
1. Example of interconnection of modules.
2. Use GF-C to connect to the name scrolling module.
3. To position the speech module in the center row, run GF-C
through the joint pipe in advance.
- 12 -
GH-DA/A GH-NS
CN1
CN2
CN3
CN1
CN100
CN2
GH-AD GH-10K
3
GF-C
GH-DA/A
GF-3B GF-3B GF-3B
