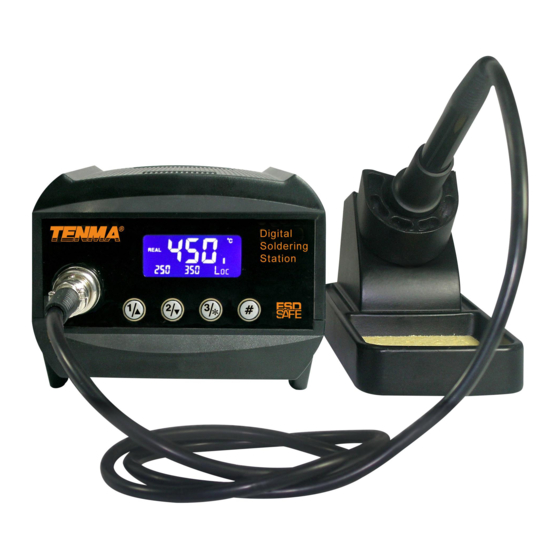

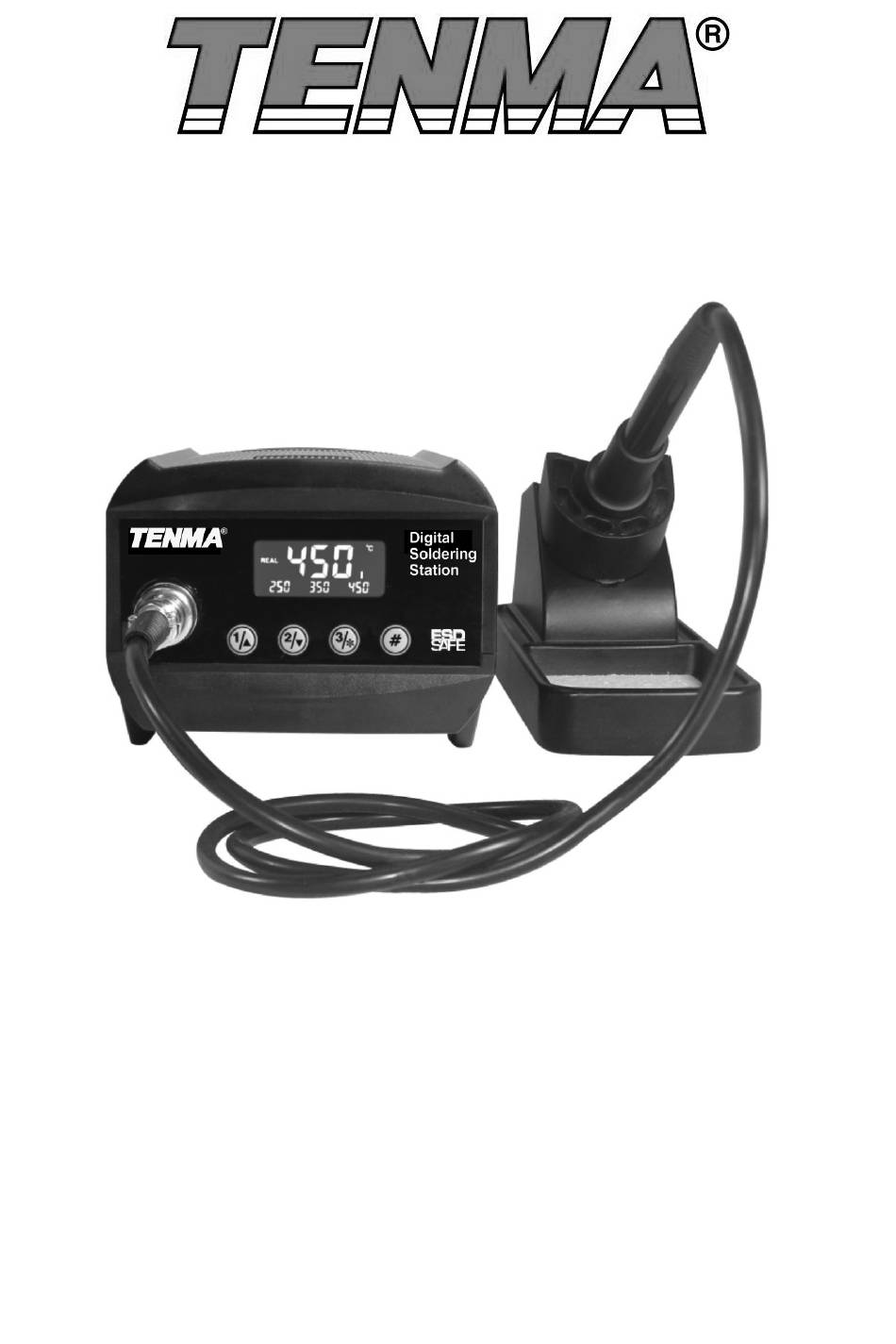

- Page 1 Model: 21-21310 80W Soldering Station...
- Page 2 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION • When using electrical appliances basic safety precautions should always be followed. • Check that the voltage indicated on the rating plate corresponds with that of the local network before connecting the appliance to the mains power supply.
- Page 3 Display of status: SET: Set temperature Setting value and temperature display REAL: Real temperature CAL: Calibration temperature Temperature unit Heater ON indicator Memory temperature 1 Memory temperature 3 Memory temperature 2 OPERATION • Before using the soldering iron for the first time, wet the cleaning sponge and place it in the iron holder tray.
- Page 4 Temperature Lock Function: • Temperature lock and unlock functions can be entered by pressing and holding “#” for three seconds. • “Loc”, located in the bottom right of the LCD screen shows when the temperature lock is active. • Whenever the machine is locked the function keys can no longer be used.
- Page 5 SPECIFICATIONS Power Consumption Input Voltage 220-240V~50Hz Temperature Range 150-480°C (302-896°F) Temperature Stability +/-2°C (still air and no load) Temperature Accuracy +/-10°C Setting Mode 3 presets and variable 2 button adjustment Tip to ground impedance <=2Ω Tip to ground voltage <=2mV Box Dimensions (L x W x H) 250 x 210 x 134mm Weight...
- Page 6 INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT. When this product has reached the end of its life it must be treated as Waste Electrical & Electronics Equipment (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.
