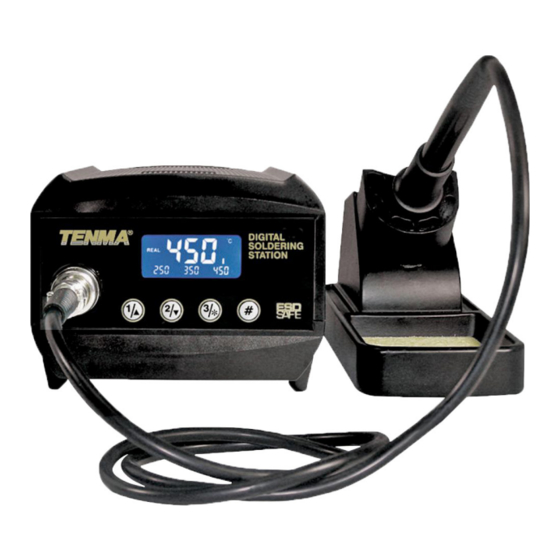

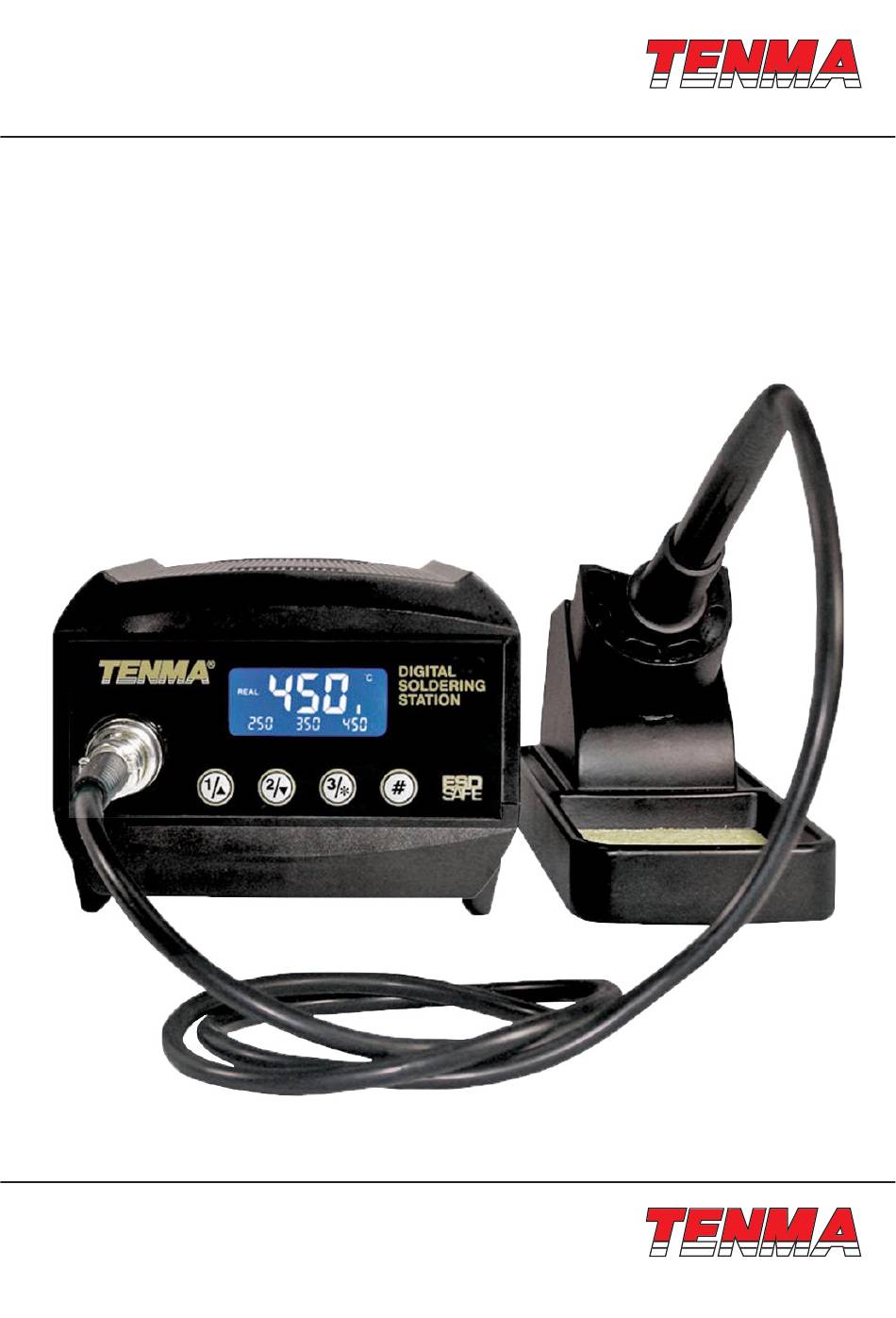

- Page 1 21-10115 UK & 21-10115 EU ESD Safe Soldering Station User Manual www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 23/08/18 V1.0...
- Page 2 Please read this manual before operating the equipment. Keep manual in accessible place for future reference. What’s Included Control Unit 1 No. Soldering Iron 1 No. Soldering Iron Holder 1 No. Power Cord (UK or EU) 1 No. Cleaning Sponge 1 No.
- Page 3 LCD Display 1. Unpack the unit and check for the contents (please contact Tenma in case any of the contents are missing) 2. Insert the soldering iron’s plug to the socket on the control panel and tighten the nut on the plug securely. Place the soldering iron into the soldering iron holder.
- Page 4 4. Adjusting Temperature: Under normal working conditions, pressing and holding button “▲” or “▼”, you can either increase or decrease the temperature quickly. Keeping the button in pressed condition will adjust the temperature setting quickly; short pressing the buttons will enable a step wise temperature adjustment. The display screen shows the temperature value simultaneously.
- Page 5 7. Changing the temperature unit of measure: In the power off condition, press and hold knob “#”, then turn on the station, the temperature unit will be changed between “°C” and “°F” and store automatically 8. Error Notification: When “H-E” or “S-E”is displayed on the screen, there is some wrong in heating element or the circuit. (Diagrams 5 and 6).
- Page 6 Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. Tenma is the registered trademark of the Group. © Premier Farnell Limited 2016.
