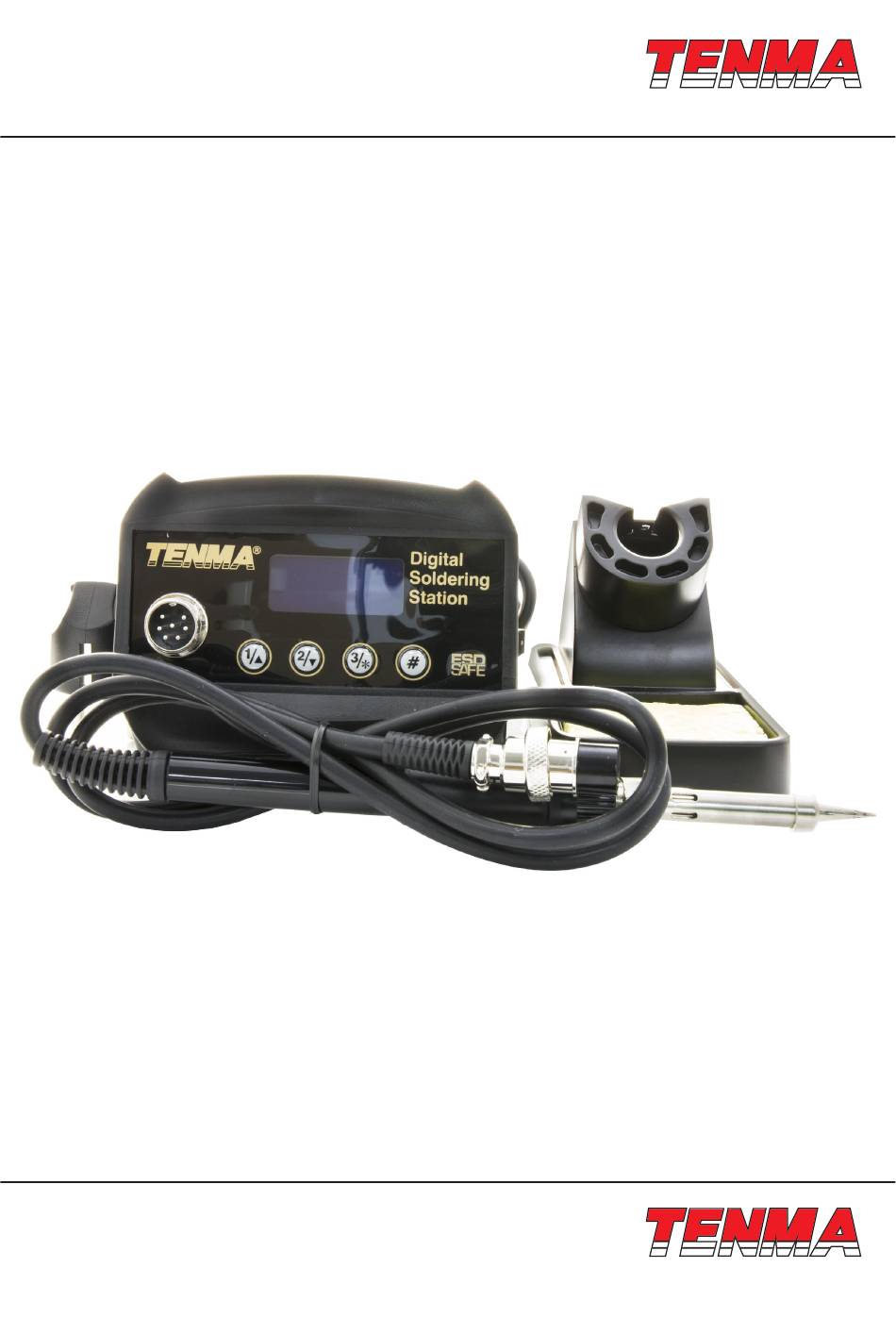

- Page 1 AT980D EU & AT980D UK ESD Safe Soldering Station User Manual www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 07/05/18 V1.0...
- Page 2 Thank you for purchasing the TENMA Soldering station. Please read this manual before operating the equipment. Keep manual in accessible place for future reference. What’s Included Control Unit 1 No. Soldering Iron 1 No. Soldering Iron Holder 1 No. Power Cord (UK or EU) 1 No.

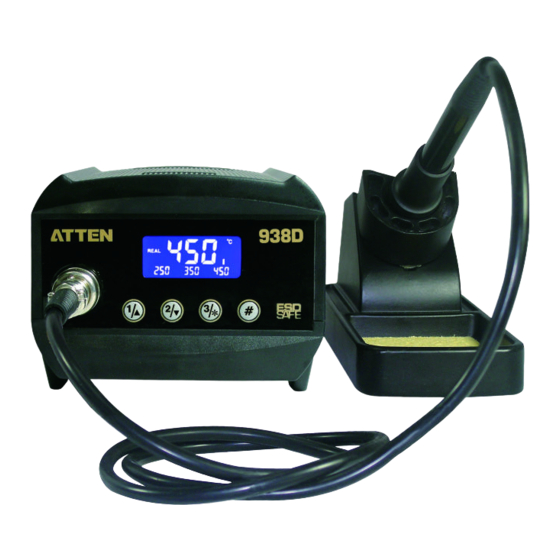

- Page 3 Heating element AT938D/AT980D Control Panel Guide LCD display Features: • New appearance design, big LCD screen, for clear and convenient reading. • PID power control loop with constant temperature set by MCU computer for more precision temperature control. • Imported temperature-beard materials with long life. www.element14.com www.farnell.com www.newark.com...
- Page 4 • It is convenient that the device adopt three programmable knobs in different condition. • Display the temperature between Fahrenheit and Celsius flexibly, convenient for the type of operators. • Computerized temperature calibration can correct the difference between the actual and display temperature quickly. •...
- Page 5 4.2. Pressing button “#” and buttons “1, 2, 3”, you can store the setting temperature into fast channel knobs “1, 2, 3”. 4.3. Temperature hotkey A. Hotkey 1 is usually applied to store a 200°C or lower temperature value at which level machine stands by and on rest. B.
- Page 6 8. False alarm When “H-E” or “S-E”is displayed on the screen, there is some wrong in heating element or the circuit. (diagram 5, 6). Turn off the unit and follow the instructions to replace the heating element. Replacing the heating element Note: diagram (8) is soldering station AT980D, heating core resistance (red) about 2.5 ~ 3.5Ω, sensor (blue) resistance about 43 ~ 58Ω.
- Page 7 Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. Tenma is the registered trademark of the Group. © Premier Farnell Limited 2016.
