Summary of Contents for Tenma 2064549

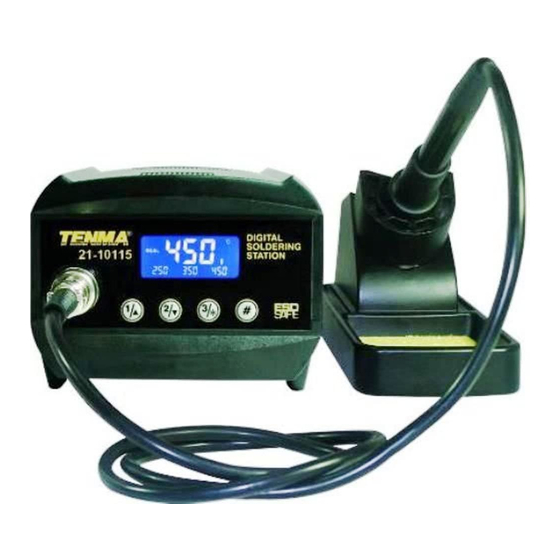

- Page 1 Soldering Station User’s Manual 2064549/2062627 SOLDERING STATION Thermo-Control Anti-Static User’s Manual www.element14.com www.farnell.com www.newark.com www.cpc.co.uk www.mcmelectronics.com Page <1> 01/06/12 V1.1...
- Page 2 Soldering Station User’s Manual Thank you for purchasing the TENMA Soldering station. Please read this manual before operating the equipment. Keep manual in accessible place for future reference. ■ Warning: Temperature of iron tip will be up to 200°C to 400°C after connecting power, so it may lead to injury of fire because of improper usage.
-
Page 3: Specifications
50°C to -50°C for Calibration (122°F to -58°F) Ground Impedance < 2Ω Ground Voltage < 2mV Heating Element 2 Cores (TENMA) *Specifications are subject to change without prior notice. Heating Element 2 Cores (TENMA) Control Panel Guide www.element14.com www.farnell.com www.newark.com www.cpc.co.uk... - Page 4 Soldering Station User’s Manual Introduction for LCD Display Features • New appearance design, big LCD screen, for clear and convenient reading • PID power control loop with constant temperature set by MCU computer for more precision temperature control • Imported temperature-beard materials with long life •...
-
Page 5: Adjusting Temperature
Soldering Station User’s Manual 3. Adjusting temperature: Under normal working condition, pressing and holding button “▲” or “▲”, you can either increase or decrease the temperature quickly. Keeping the knob in pressed will adjust the temperature setting quickly; short pressing knob, you can adjust temp step by step. -
Page 6: Temperature Calibration
Soldering Station User’s Manual 5. Temperature calibration You need calibrate the temperature of tip after you replace with a new heating element or tip. 5.1 Enter into calibrating station by long pressing knob “ ” (>3s). 5.2. You can directly adjust the value of calibration by pressing knob “▲” or “▼”. 5.3. -
Page 7: Replacing The Heating Element
Soldering Station User’s Manual Replacing the heating element Note: Diagram (7) is soldering station 21-10115, heating element resistance about 8Ω to 10Ω 1. Power off the unit and unplug the device. Wait for the heating element to cool down. 2. Loosen the nut(1) 3. -
Page 8: Soldering Station
Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. Tenma is the registered trademark of the Group. © Premier Farnell plc 2012.
