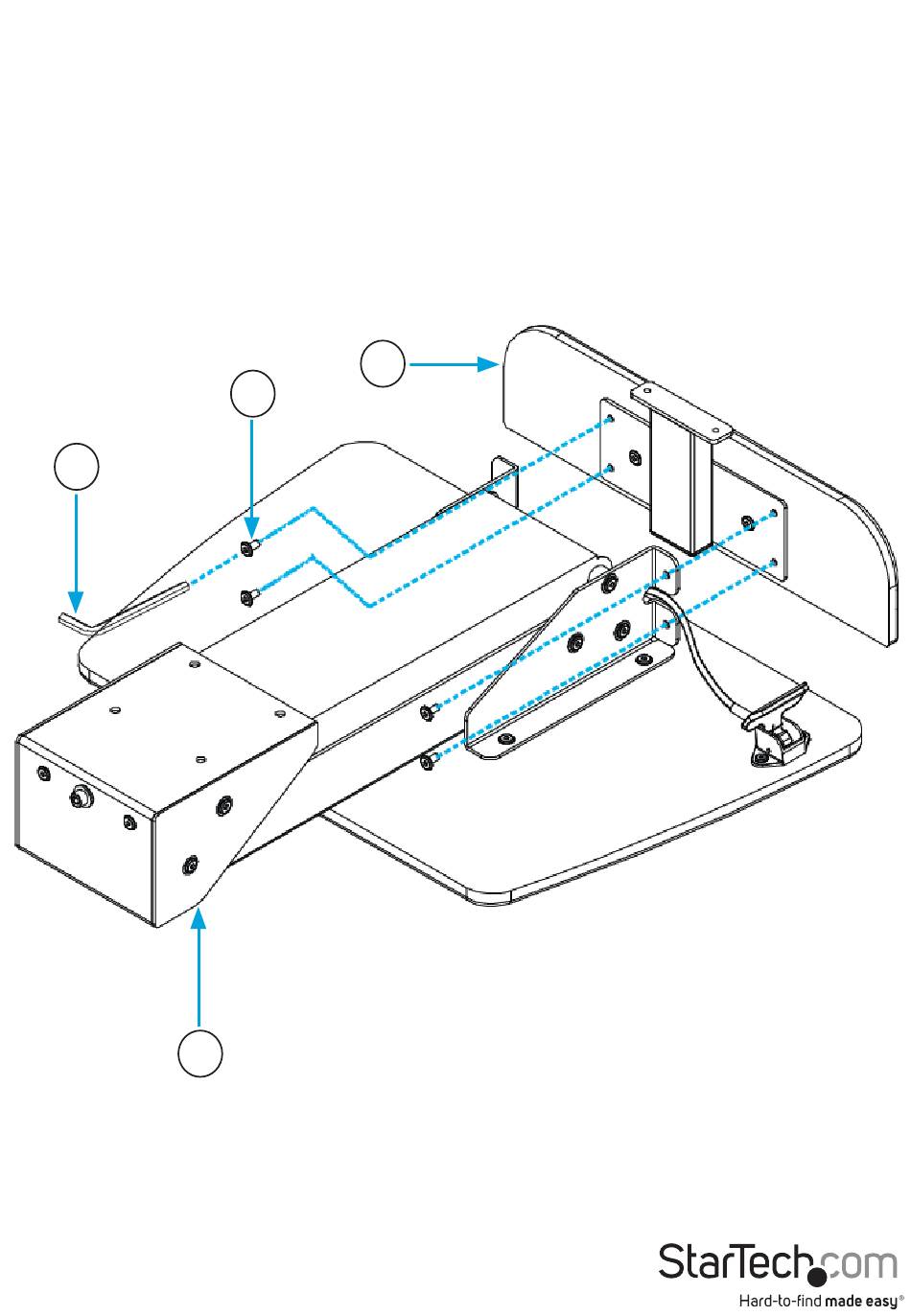

Attach the pneumatic arm to the mounting pillar

1. Line up the two holes on each of the brackets of the pneumatic arm (1) with the
four holes on the mounting pillar (7).
2. Use the M4*55 Allen wrench (12) to insert four M6*12 screws (14) into the
pneumatic arm and then the mounting pillar.
3. Turn the Allen wrench clockwise to tighten the screws.
Warning! Do not over-tighten the screws. (tightening torque is 1.5 Nm)
12
Instruction manual
14
1
7
7
