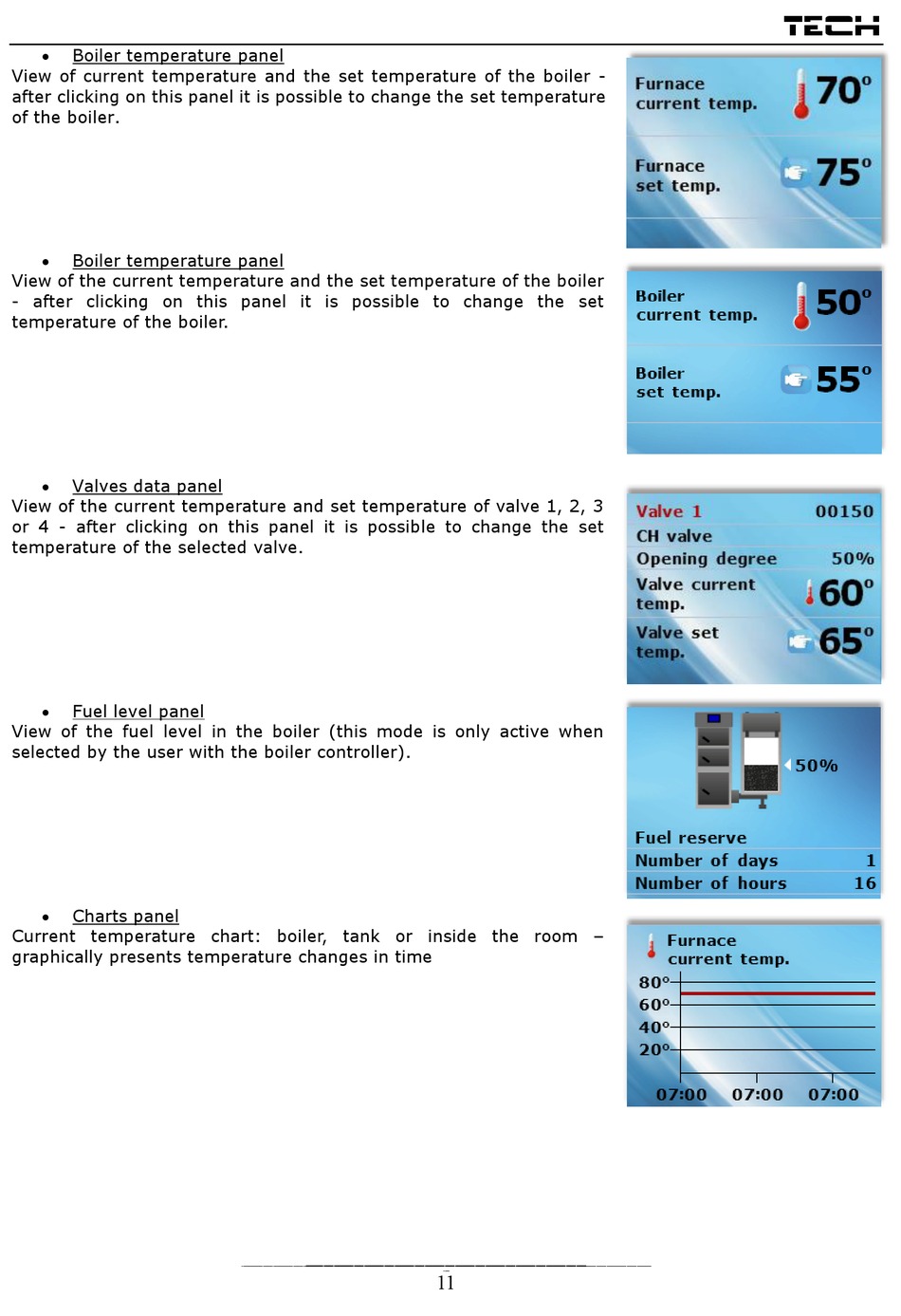

 Boiler temperature panel
View of current temperature and the set temperature of the boiler -
after clicking on this panel it is possible to change the set temperature
of the boiler.
 Boiler temperature panel
View of the current temperature and the set temperature of the boiler
- after clicking on this panel it is possible to change the set
temperature of the boiler.
 Valves data panel
View of the current temperature and set temperature of valve 1, 2, 3
or 4 - after clicking on this panel it is possible to change the set
temperature of the selected valve.
 Fuel level panel
View of the fuel level in the boiler (this mode is only active when
selected by the user with the boiler controller).
 Charts panel
Current temperature chart: boiler, tank or inside the room –
graphically presents temperature changes in time
