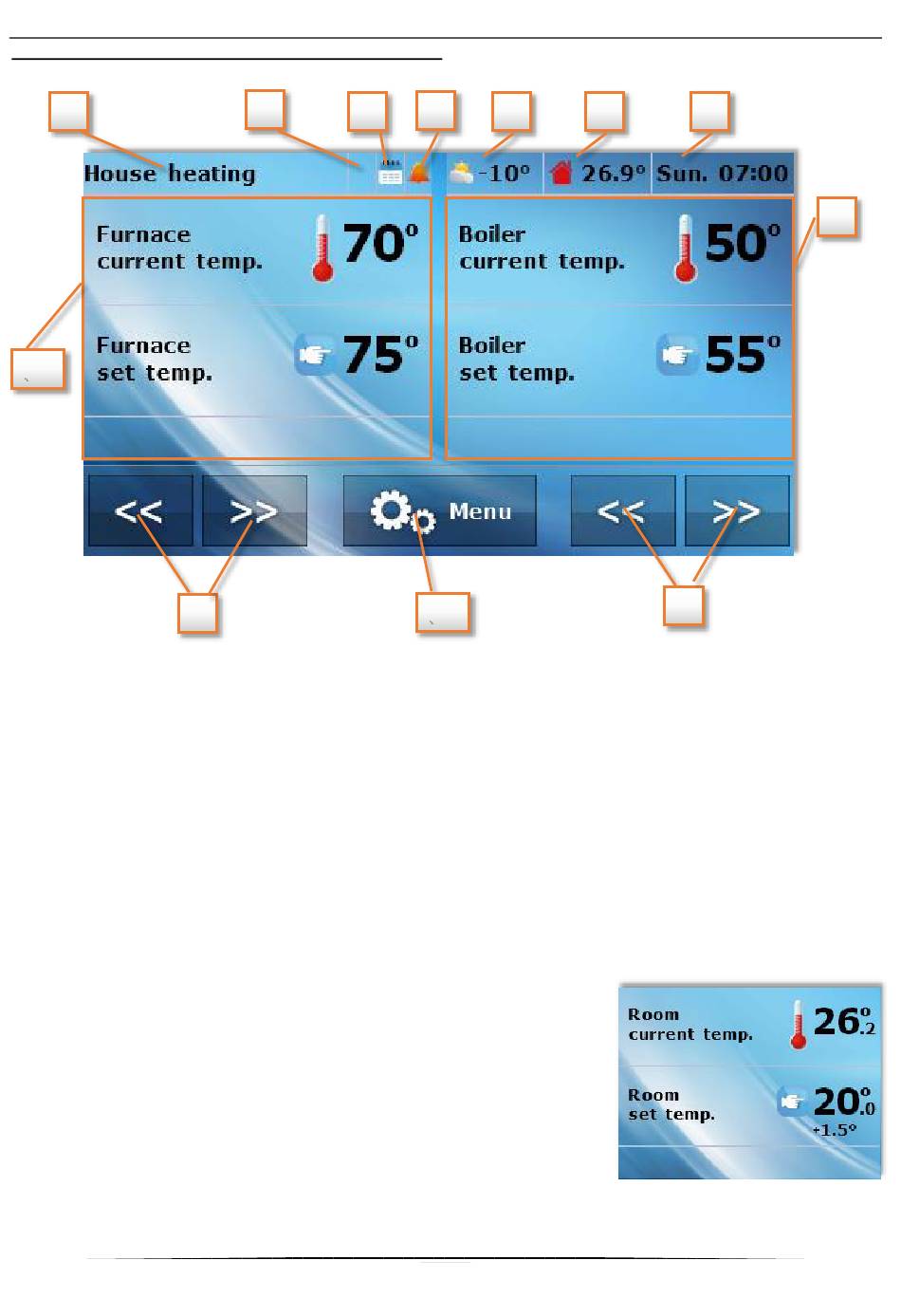

Main Screen Description – Panels Screen:
1
11
1. Active operation mode of pumps
2. Icon which shows enabled options concerning daily boiler operations (only in the case of the
pellet type boiler).
3. Icon which shows an enabled weekly control option.
4. Icon which shows an activated alarm clock.
5. External temperature (visible only when using the external sensor on the main controller).
6. Current room temperature.
7. Current time and date.
8. Right parameters panel.
9. Buttons allowing change of active view of parameters panel.
10. Access to the controller menu.
11. Left parameters panel.
With the use of buttons allowing change of active view of parameters panels, the user obtains access
to additional information on the installation condition:
• Room temperature panel
View of current temperature and the set temperature inside the room
- after clicking on this panel it is possible to change the set room
temperature:
